Understanding Thermal Shock Testing – Why It Matters

Modern devices—from electric vehicle (EV) batteries to aerospace avionics—must survive sudden temperature changes. Thermal shock chambers (also called shock chambers, temperature shock test chambers or thermal shock testers) simulate rapid transitions between extreme hot and cold zones, exposing hidden weaknesses in materials, solder joints and seals. Danble Climate’s horizontal and vertical thermal shock chambers allow the sample basket to move between independent high‑ and low‑temperature zones within ≤ 10 seconds. This rapid cycling identifies thermal‑stress‑induced failures quickly, reducing time‑to‑market and preventing costly field recalls.

How Do Thermal Shock Chambers Support Battery Test Chambers?

Engineers using battery test chambers for long‑term cycling also need to know how cells behave under abrupt thermal shocks. Danble’s thermal shock testing chambers can evaluate lithium‑ion, nickel‑metal hydride, lead‑acid and solid‑state batteries. The rapid temperature transitions reveal expansion and contraction stresses in electrodes and enclosures that would not appear in slower environmental tests. For EV manufacturers in Seattle, where the combination of cold winters and heat waves strains battery packs, combining battery environmental reliability test chambers with thermal shock chambers provides comprehensive assurance.

Key Features of Danble Climate’s Thermal Shock Chambers

Dual‑Zone and Three‑Zone Designs

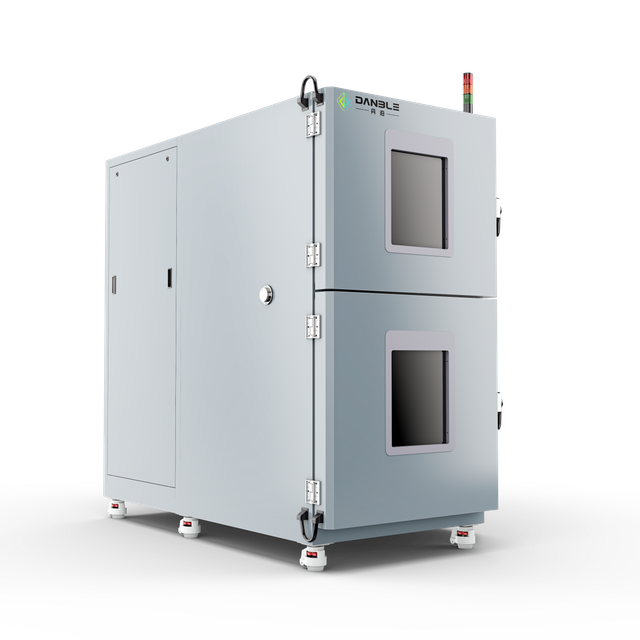

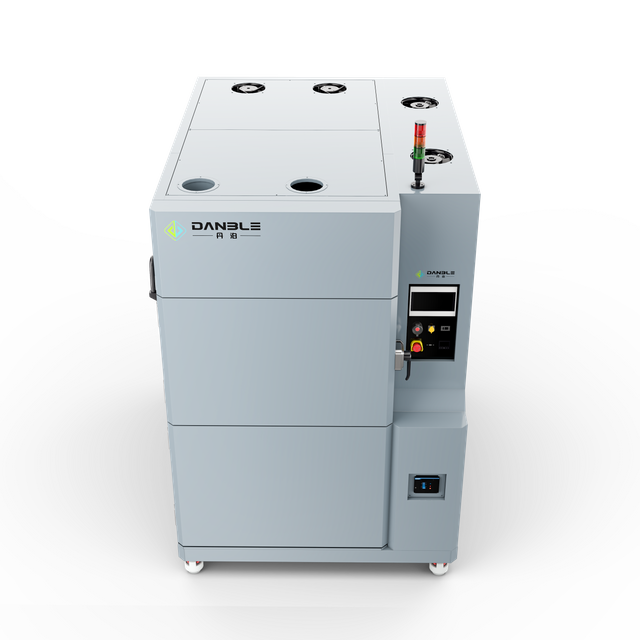

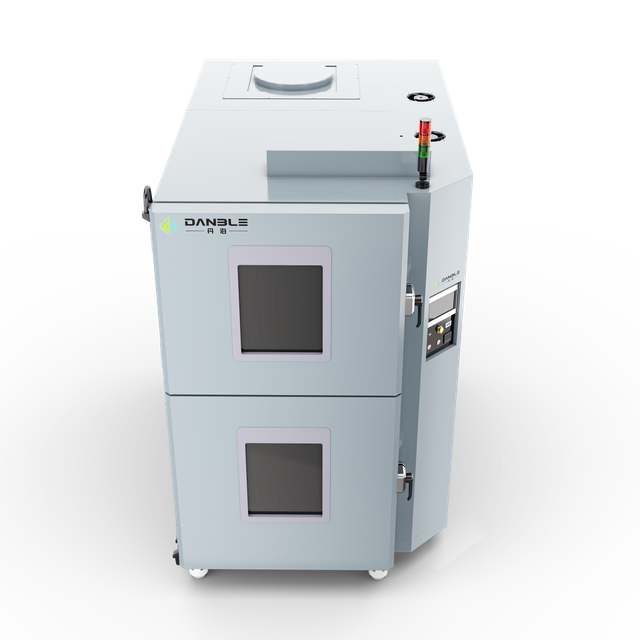

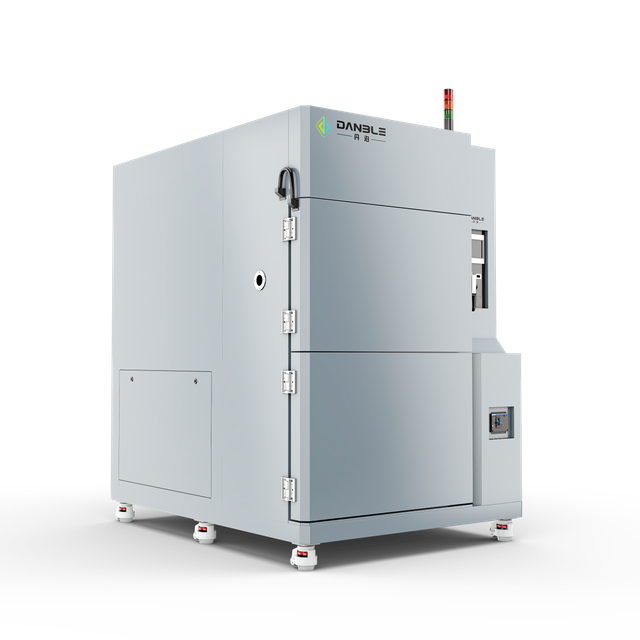

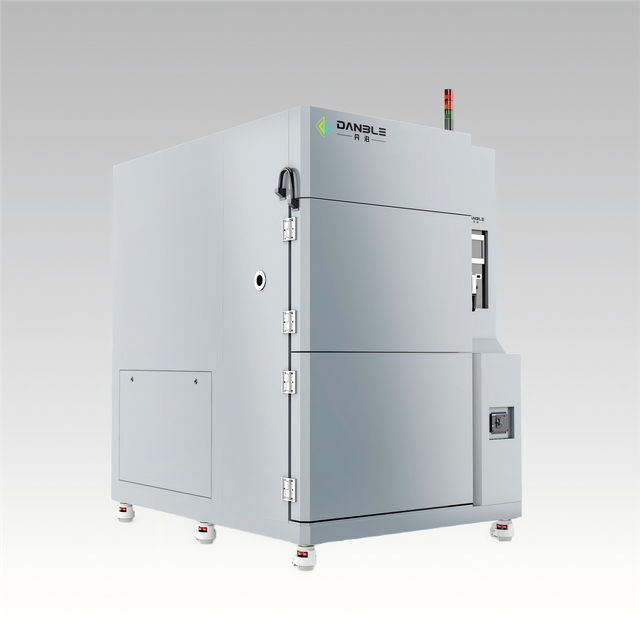

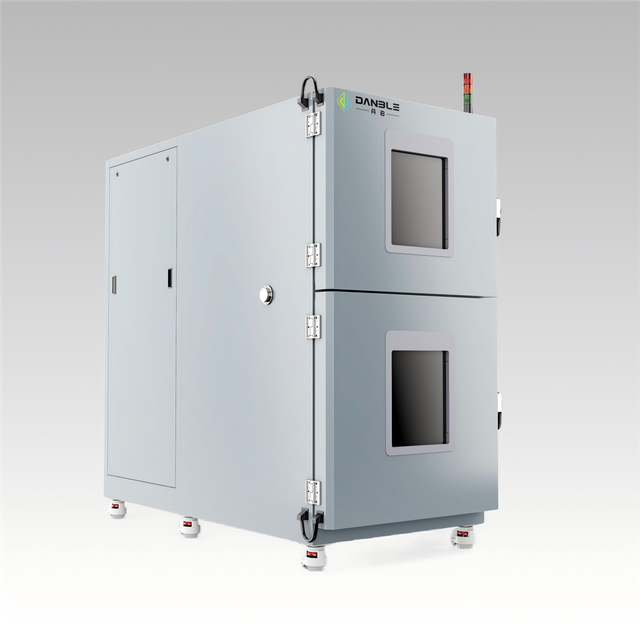

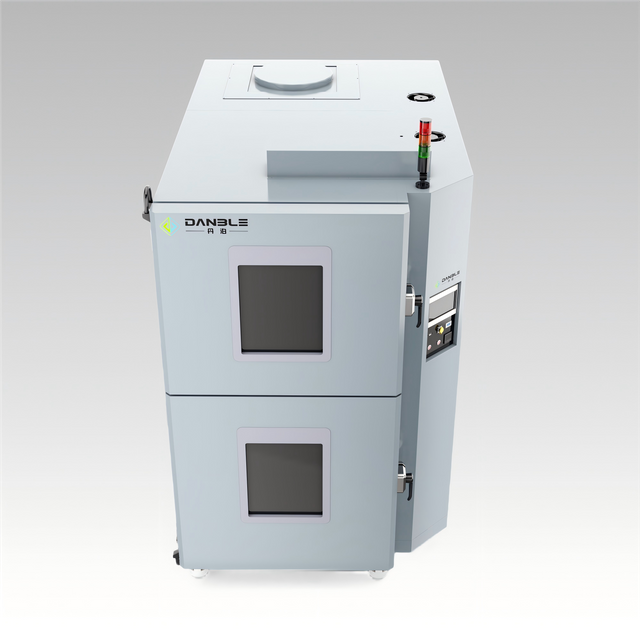

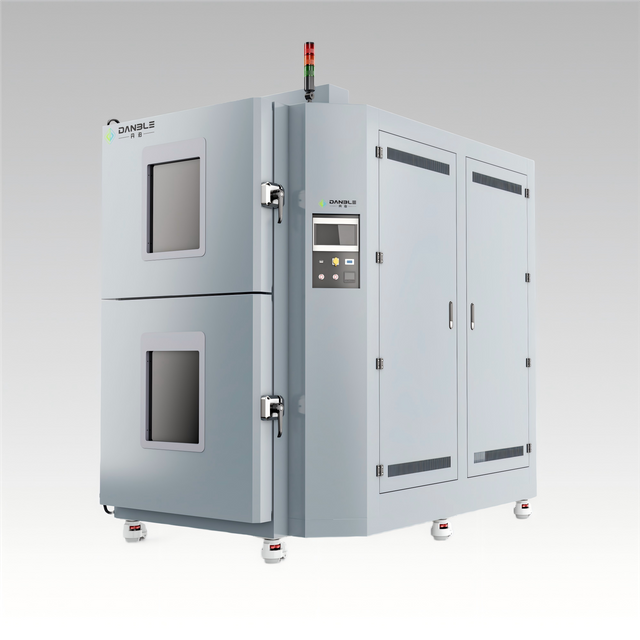

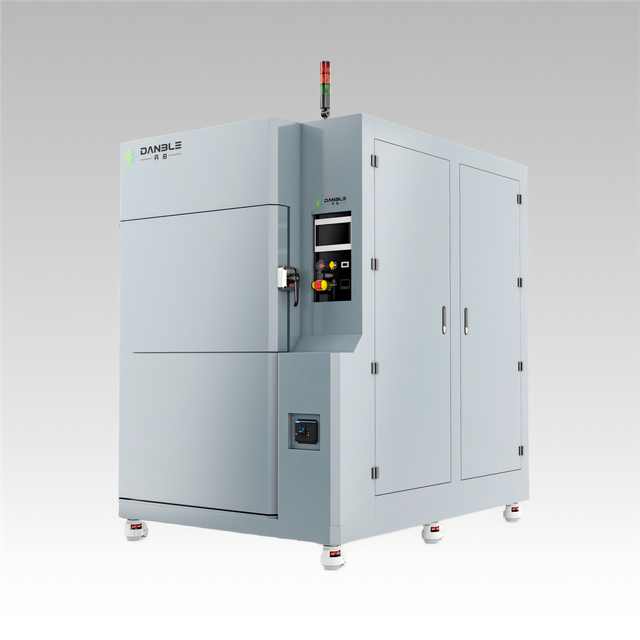

Danble offers both dual‑zone thermal shock chambers and three‑zone thermal shock chambers. A dual‑zone chamber has separate high‑temperature and low‑temperature zones connected by a lift basket system; samples shuttle between them to experience rapid thermal shock. Three‑zone chambers add a central test zone so samples remain stationary while hot and cold air is directed into the test area; this avoids mechanical shock and is ideal for delicate components. In both cases, zone switching occurs within 5 to 10 seconds, and temperature recovery time is less than 5 minutes.

Wide Temperature Ranges and Fast Recovery

Danble’s thermal shock chambers achieve low‑temperature ranges down to –70 °C and high‑temperature ranges up to +150 °C or +200 °C depending on the model. The pre‑cooling zone can cool to –80 °C while the pre‑heating zone heats to +180 °C. High‑performance refrigeration and heating systems enable rapid transitions and maintain temperature uniformity within ±0.5 °C. Forced air circulation and multi‑layered insulation ensure consistent conditions throughout the chamber.

Precision Controls and Safety

Each temperature shock chamber uses PLC or PID programmable controllers with 7‑inch or larger touchscreens for intuitive operation. Users can program up to 1 000 cycles for repeated thermische stress tests and export data via RS‑485 or USB. Integrated safety features include over‑temperature and under‑temperature alarms, compressor overload protection, leakage detection, door interlocks and emergency stop buttons. Multi‑layer protection and remote alerts monitor chamber status.

Energy Efficiency and Maintenance

Energy consumption is a key concern for continuous testing. Danble’s advanced refrigeration systems, variable‑frequency drives and optimized insulation reduce power draw. Low‑noise operation makes laboratories more comfortable. Built‑in diagnostics help identify faults quickly, while accessible filters, compressors and sensors simplify maintenance. Options for water cooling accommodate high‑load applications.

Customization Options

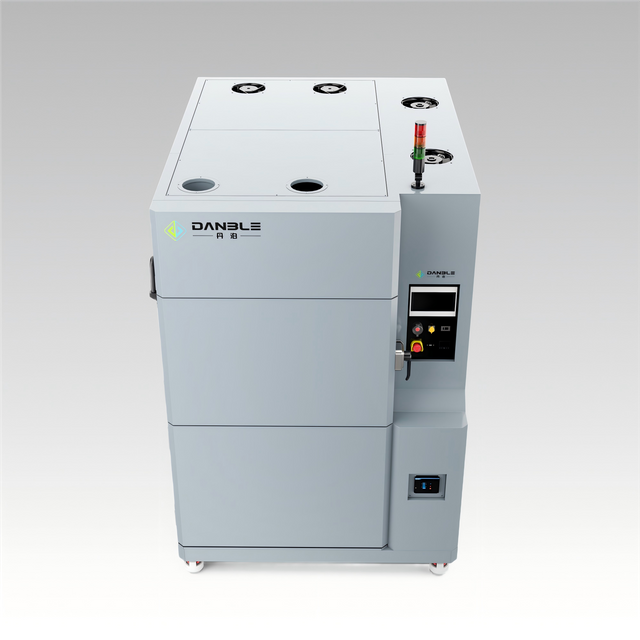

Every industry has unique requirements. Danble offers customization of chamber volumes, basket dimensions and zone orientations—horizontal or vertical—to suit specific sample sizes. Additional sensors for humidity and vibration can be integrated, and specialized finishes protect against corrosive atmospheres. Customers can choose between horizontal thermal shock chambers, vertical thermal shock chambers, MPI thermal shock chambers or multi‑zone configurations. A professional team provides on‑site installation, operator training and calibration services.

Applications: From Batteries to Aerospace

Battery Safety and Reliability

Thermal shocks can trigger lithium‑ion cell failures or electrolyte leakage. Danble’s shock test chambers support battery testing by rapidly cycling temperature, revealing weaknesses in seals, electrodes and insulators. Applications include EV battery validation, grid storage testing and battery module fire resistance. When combined with battery test chambers, these tests ensure long-term safety and compliance with IEC 62619 and GB/T 31486 standards.

Electronics, Automotive and Consumer Products

PCBs, semiconductors, displays and sensors require thermal shock testing to prevent failures in cold startups or hot engine bays. Thermal shock chambers validate materials under extreme temperature gradients for automotive ECUs and interior components. Consumer electronics manufacturers use thermal shock testers to verify smartphone and wearable reliability.

Aerospace and Defense

Seattle’s aerospace sector needs aerospace thermal shock test chambers to certify components for high‑altitude stress and rapid thermal cycling in flight. Danble’s chambers meet MIL‑STD‑810G, MIL‑STD‑202G and IEC 60068 standards, making them suitable for satellites, avionics and military hardware. The three‑zone design eliminates mechanical movement, protecting delicate aerospace assemblies during high‑to‑low transitions.

Industrial & Medical Products

Thermal shock testing also benefits mechanical parts, polymer components, medical devices and packaging materials. For example, medical diagnostic instruments must perform reliably despite temperature changes in shipping or hospital environments. Industrial machinery and appliance parts undergo shock testing to ensure durability across global markets.

Selecting the Right Thermal Shock Chamber – Your Questions Answered

How do I choose between a dual‑zone and a three‑zone shock chamber?

Dual‑zone chambers transfer samples between two independent hot and cold zones with a basket mechanism. They offer simplicity and rapid cycling for robust samples. Three‑zone chambers keep the sample stationary and direct hot or cold air into the central test zone. This avoids mechanical shocks, making them ideal for delicate electronics and aerospace assemblies.

What size chamber do I need?

Consider your largest test specimen and required throughput. Danble provides volumes from 48 L to more than 100 L in standard models and offers custom sizes for larger loads or multi‑layer testing. Seattle’s EV battery manufacturers may need large 100 L dual‑zone chambers with horizontal baskets, while research labs might prefer compact MPI thermal shock chambers for quick prototyping.

How do shock chamber specifications impact battery testing?

Look for low‑temperature ranges down to –70 °C and high‑temperature capabilities up to +150 °C or +200 °C. Ensure the zone switching time is less than 10 seconds and that temperature recovery meets IEC 60068‑2‑14 (≤5 minutes). For battery safety, choose chambers with explosion‑proof upgrades and integrated safety systems to handle potential venting or thermal runaway events.

Why work with thermal shock chamber distributors instead of buying off the shelf?

Distributors like Danble Climate offer engineering support, customization and after‑sales service that generic resellers cannot. They help you select the right thermal shock chamber manufacturer, integrate the system into your existing environmental stress testing system and provide calibration to maintain compliance.

Why Choose Danble Climate – Trusted Thermal Shock Chamber Manufacturer

Danble Climate is a global provider of environmental test equipment, combining factory production with trading to offer one‑stop solutions. The company has over 13 years of R&D experience and eight years of exporting. With more than 60 patents and 600 clients worldwide, Danble is recognized for innovation and quality.

Value Proposition

• Engineering Expertise: In‑house designers tailor vertical thermal shock chambers, horizontal thermal shock chambers and temperature shock chambers to your specifications.

• Compliance Assurance: Chambers comply with JESD22‑A106B, IEC 60068‑2‑14, MIL‑STD‑810G and GB/T 2423 standards.

• Comprehensive Support: Danble provides professional installation, operator training and calibration, plus 24/7 technical assistance with fast response times.

• Customization & Scalability: From compact lab‑scale testers to large aerospace thermal shock systems, each chamber can be customized for size, temperature range and automation features.

• Global Recognition: Trusted by Fortune 500 companies and research labs, Danble’s chambers are installed worldwide.

•


Equip Your Lab with High‑Performance Shock Chambers

In the Pacific Northwest, where aerospace giants and EV innovators co‑exist, reliability testing is not optional. To ensure your batteries, electronics or aerospace components survive the extremes, partner with a thermal shock chamber manufacturer that understands your needs. Danble Climate delivers thermal shock test chambers, temperature shock chambers and mpi thermal shock chambers that meet rigorous global standards.

Ready to upgrade your testing capabilities? Contact us now to find the best thermal shock chamber for your application and request a customized quote. Our specialists will help you integrate thermal shock testing with your battery test chambers or environmental stress screening chambers, ensuring comprehensive reliability. Don’t wait for failures—accelerate your validation process and safeguard your reputation. Buy your thermal shock test chamber today and experience the Danble advantage.

Conclusion

Thermal shock testing exposes materials and components to extreme temperature transitions, revealing vulnerabilities that conventional tests overlook. Danble Climate’s dual‑zone and three‑zone thermal shock chambers provide rapid switching, precise control, energy efficiency and safety. With customization options, global compliance and dedicated support, Danble stands as a leading thermal shock chamber manufacturer and distributor. Whether you’re validating EV batteries in Seattle or certifying aerospace assemblies, investing in a high‑quality shock test chamber ensures your products withstand the toughest environments.
