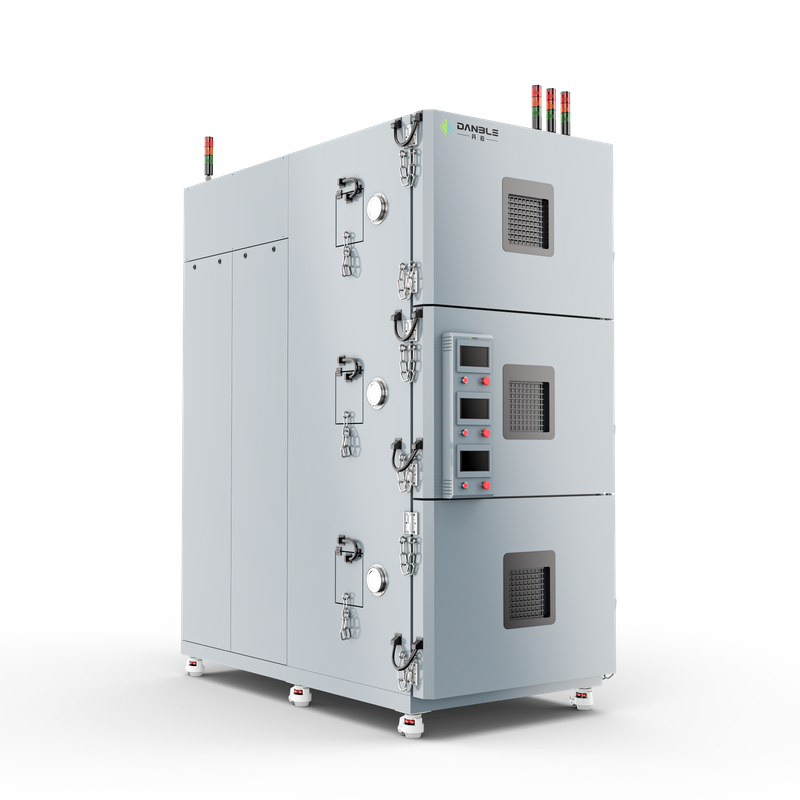

Product Description
Technical Specifications:
Temperature Range : -70°C to 150°C (adjustable)
Temperature Uniformity : ≤2°C
Chamber Volume : 455*3 (customizable)
Cooling Method : Air/Water Cooled
Control System : 7-inch Touchscreen + PLC
Core Advantages: Triple-Zone Independence : Each zone operates independently, enabling parallel testing for efficiency
✅ Safety Features : Auto-fire suppression, pressure relief valves, and real-time alarms
✅ Broad Applications : Validated for EV batteries (GB38031-2020), aerospace components (MIL-STD-810D), and consumer electronics
Why Choose Us?
ISO 9001 Certified Manufacturer with 13+ years of R&D experience
Customizable Configurations : Support non-standard sizes and hybrid cycles
Global Compliance : Meets IEC, GB, GJB, and UL standards
Product Description
Technical Specifications:
Temperature Range : -70°C to 150°C (adjustable)
Temperature Uniformity : ≤2°C
Chamber Volume : 455*3 (customizable)
Cooling Method : Air/Water Cooled
Control System : 7-inch Touchscreen + PLC
Core Advantages: Triple-Zone Independence : Each zone operates independently, enabling parallel testing for efficiency
✅ Safety Features : Auto-fire suppression, pressure relief valves, and real-time alarms
✅ Broad Applications : Validated for EV batteries (GB38031-2020), aerospace components (MIL-STD-810D), and consumer electronics
Why Choose Us?
ISO 9001 Certified Manufacturer with 13+ years of R&D experience
Customizable Configurations : Support non-standard sizes and hybrid cycles
Global Compliance : Meets IEC, GB, GJB, and UL standards
Humidity Devaition
±3%RH（＞75%RH），±5%RH（≤75%RH）
Power
3 Phase 380V 50Hz 5 Wire System
Standard
GB/T 2423; GB/T5170; IEC60068;
{"json":"[{\"index\":\"0\",\"tran_label\":\"Internal Volume\",\"tran_value\":[\"455L×3\"]},{\"index\":\"1\",\"tran_label\":\"Internal Dimension\",\"tran_value\":[\"1000×650×700（W×D×H/mm）\"]},{\"index\":\"2\",\"tran_label\":\"External Dimension\",\"tran_value\":[\"1200×2008×2900（W×D×H/mm）\"]},{\"index\":\"3\",\"tran_label\":\"Temperature Range\",\"tran_value\":[\"-40℃~+150℃ or customized\"]},{\"index\":\"4\",\"tran_label\":\"Humidity Range\",\"tran_value\":[\"20% ~ 98% RH\"]},{\"index\":\"5\",\"tran_label\":\"Heating Range\",\"tran_value\":[\"(+20~150℃）≥2min\"]},{\"index\":6,\"tran_value\":[\"（+20~-40℃）≥1min\"],\"tran_label\":\"Cooling Range\"},{\"index\":\"7\",\"tran_label\":\"Temperature Fluctuation\",\"tran_value\":[\"≤±0.5℃\"]},{\"index\":\"8\",\"tran_label\":\"Temperature Uniformity\",\"tran_value\":[\"≤2℃\"]},{\"index\":\"9\",\"tran_label\":\"Temperature Deviation\",\"tran_value\":[\"≤±2℃\"]},{\"index\":\"10\",\"tran_label\":\"Humidity Devaition\",\"tran_value\":[\"±3%RH（＞75%RH），±5%RH（≤75%RH）\"]},{\"index\":\"11\",\"tran_label\":\"Noise\",\"tran_value\":[\"≤69dB\"]},{\"index\":\"12\",\"tran_label\":\"Test Hole\",\"tran_value\":[\"φ100mm*2\"]},{\"index\":\"13\",\"tran_label\":\"Cooling Way\",\"tran_value\":[\"Water-cooling\"]},{\"index\":\"14\",\"tran_label\":\"Power \",\"tran_value\":[\"3 Phase 380V 50Hz 5 Wire System\"]},{\"index\":\"15\",\"tran_label\":\"Standard\",\"tran_value\":[\"GB/T 2423; GB/T5170; IEC60068;\"]}]","type":"2"}
