As electric vehicles (EVs) evolve to deliver longer ranges, higher performance, and reliability across extreme environments, testing requirements for entire powertrains—including batteries, motors, inverters, and integrated drivetrains—have become increasingly complex. Traditional benchtop or small-volume test chambers fall short when validating large, assembled EV powertrains, especially for high-altitude and low-pressure scenarios that directly impact thermal management, structural integrity, and operational safety.

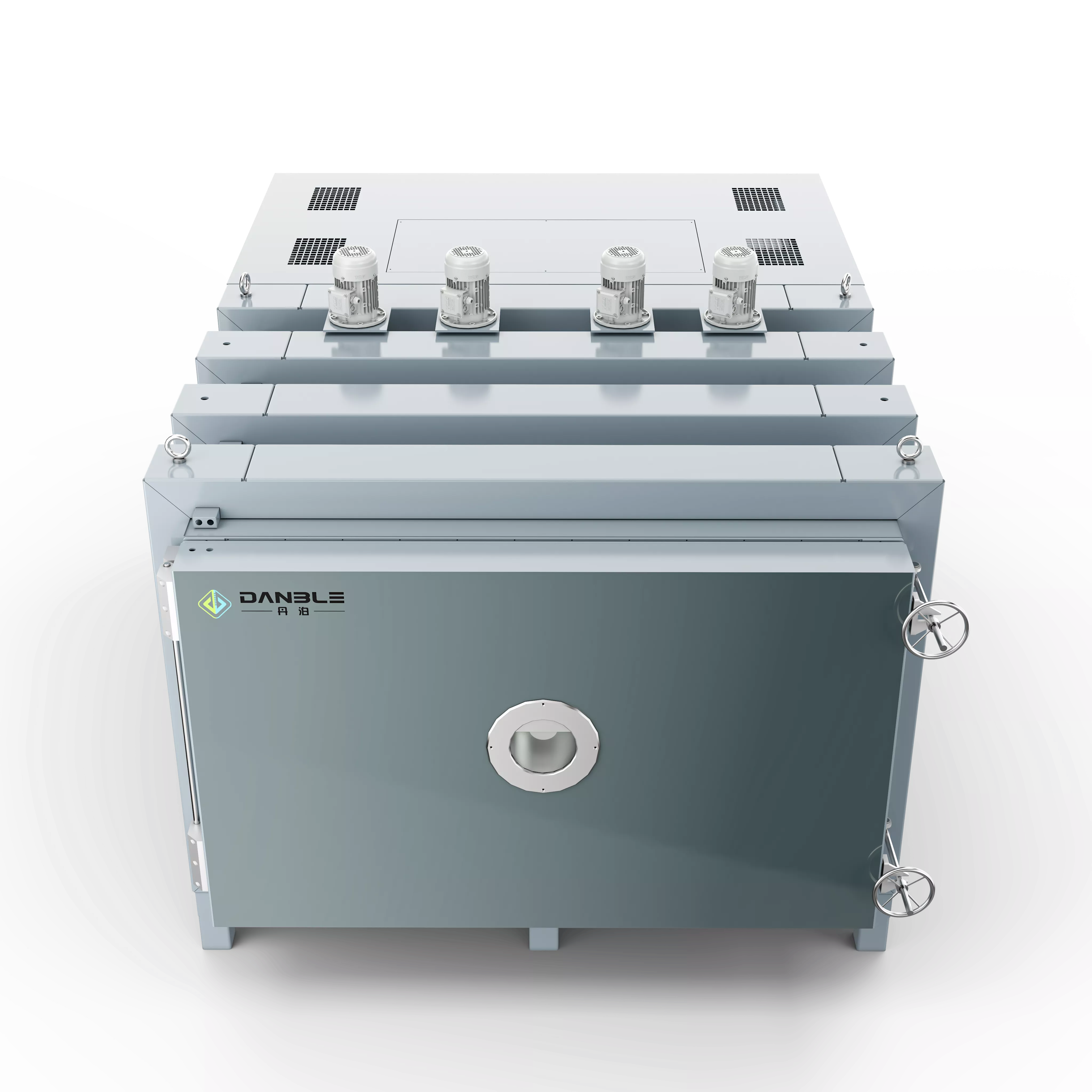

Customized walk-in low-pressure test chambers address this critical gap, and Danble Instruments stands out with technical innovations that redefine large-scale EV powertrain testing—offering unmatched volume, precision, and EV-specific adaptability to validate entire powertrains as a single unit. These large-scale systems simulate real-world low-pressure conditions (from high-altitude terrains to air transport environments) while accommodating the size and complexity of fully assembled powertrains, ensuring comprehensive validation that aligns with industry standards and real-world performance demands.
EV powertrains are integrated systems where components interact dynamically—batteries, motors, and electronics work in tandem to deliver power and efficiency. Testing individual components or small subassemblies in standard chambers misses the critical synergy between parts, leading to incomplete validation:
• A battery module tested alone may perform well at low pressure, but when paired with a motor and inverter in a full powertrain, heat dissipation challenges multiply.
• Structural stress on powertrain enclosures—caused by low-pressure expansion—can only be accurately assessed when the entire assembly is tested as a single unit.
• Wiring harnesses, connectors, and thermal management systems (cooling loops, heat sinks) behave differently in integrated setups, requiring large-volume chambers to replicate real-world conditions.
For manufacturers targeting global markets with diverse terrains—from Tibetan Plateau highways to Rocky Mountain passes—validating entire powertrains under low-pressure conditions is not just a quality check, but a necessary step to ensure safety, compliance, and customer satisfaction.
Engineered specifically for EV powertrain testing, the brand’s walk-in low-pressure chambers leverage proprietary technologies and industry-specific design to address the unique demands of large-scale validation:
Unlike rigid conventional large chambers, Danble’s modular design allows precise customization of internal dimensions (from 10m³ to 100+m³) to match exact powertrain sizes—from compact passenger car setups to heavy-duty commercial vehicle systems. The proprietary frame structure maintains structural integrity even at maximum volume, ensuring uniform pressure distribution across the entire test space. This scalability eliminates the need for over-sized chambers (reducing operational costs) while accommodating fully assembled powertrains—including battery packs, motors, inverters, and associated wiring and cooling systems—without disassembly.
A core technical advantage is the brand’s patented PTH (Pressure-Temperature-Humidity) synchronization algorithm, which maintains ultra-precise control over low-pressure conditions (from 1 kPa to 110 kPa, simulating altitudes up to 6,000 meters) alongside temperature (-40°C to +85°C) and humidity (20%–95% RH). Even in large-volume chambers, pressure stability is maintained at ±0.3 kPa, with rapid ramp rates (up to 1 kPa/s) to simulate sudden altitude changes (e.g., mountain ascent/descent). This precision ensures that the synergistic effects of low pressure, temperature, and humidity on powertrain performance are accurately replicated—critical for identifying hidden thermal or structural weaknesses.
Danble’s chambers are engineered with EV powertrain testing in mind, featuring exclusive safety and connectivity solutions:
• High-Voltage Isolation System: Proprietary insulation design (up to 1,500V DC) with redundant monitoring ensures safe testing of live powertrains, preventing electrical hazards while maintaining test integrity.
• Custom Fixture Integration: Modular mounting systems (compatible with powertrain OEM mounting points) reduce vibration interference and ensure consistent positioning across test cycles.
• Smart Connectivity Ports: Dedicated high-speed data interfaces (Ethernet/CanBus) integrate seamlessly with EV powertrain sensors, enabling real-time capture of voltage, current, motor torque, and thermal load data—without compromising chamber pressure sealing.
• Pressure-Lock Access Doors: Patented door sealing technology allows in-test inspections via viewing windows or partial access without disrupting pressure/temperature stability, a critical advantage for long-duration powertrain tests.
The brand’s integrated data acquisition system (DAS) is optimized for large-scale EV testing, featuring:
• 1ms data sampling rate for capturing transient powertrain responses to pressure/temperature changes.
• Compatibility with leading EV test software (e.g., dSPACE, ETAS) and proprietary analytics tools that identify correlations between environmental conditions and powertrain performance (e.g., low-pressure impact on battery cycle life).
• Automated compliance report generation aligned with global standards (ISO 12405, IEC 62660, SAE J2464), reducing documentation time by up to 40%.
Danble’s technical expertise extends to operational efficiency, with features that support continuous, high-intensity testing:
• Vacuum insulation panels (VIP) with thermal conductivity ≤0.008 W/(m·K) reduce energy consumption by 30% compared to conventional insulation, critical for long-duration low-temperature/low-pressure tests.
• Heavy-duty pressure sealing components (tested to 10,000+ cycles) ensure long service life even under frequent pressure cycling.
• Remote monitoring and predictive maintenance alerts (via IoT connectivity) minimize downtime, with real-time adjustments for test parameters accessible from any device.
For EV manufacturers, the brand’s technical innovations translate to tangible value that directly impacts product quality and market success:
• Unmatched Validation Accuracy: Patented PTH synchronization and uniform large-volume conditions ensure powertrain behavior is tested as it operates in the real world, uncovering weaknesses that generic chambers miss.
• Reduced Time-to-Market: Modular customization, seamless data integration, and automated reporting streamline the validation process, cutting test cycles by 25%–30%.
• Compliance Confidence: Precision control and standard-aligned data ensure compliance with global low-pressure and high-altitude testing requirements, eliminating certification delays.
• Lower Total Cost of Ownership: Energy-efficient design, durable components, and predictive maintenance reduce operational and maintenance costs over the chamber’s lifecycle.
For manufacturers seeking reliable, technically advanced walk-in low-pressure chambers, Danble Instruments combines decades of environmental test equipment expertise with deep understanding of EV powertrain requirements. Each system is engineered to support long-term, high-intensity testing, with a focus on technical innovation, safety, and user-friendliness—backed by global technical support and customization services.
As EVs become more advanced and global markets more demanding, testing entire powertrains under low-pressure conditions requires technical precision that only specialized, innovative chambers can deliver. Danble’s walk-in low-pressure test chambers—with modular scalability, patented environmental control, EV-specific safety features, and advanced data analytics—solve the critical challenge of large-volume validation. By leveraging these technical advantages, EV manufacturers can ensure their powertrains are safe, compliant, and reliable in diverse environments—from sea-level cities to high-altitude terrains—building trust and confidence with customers worldwide.
