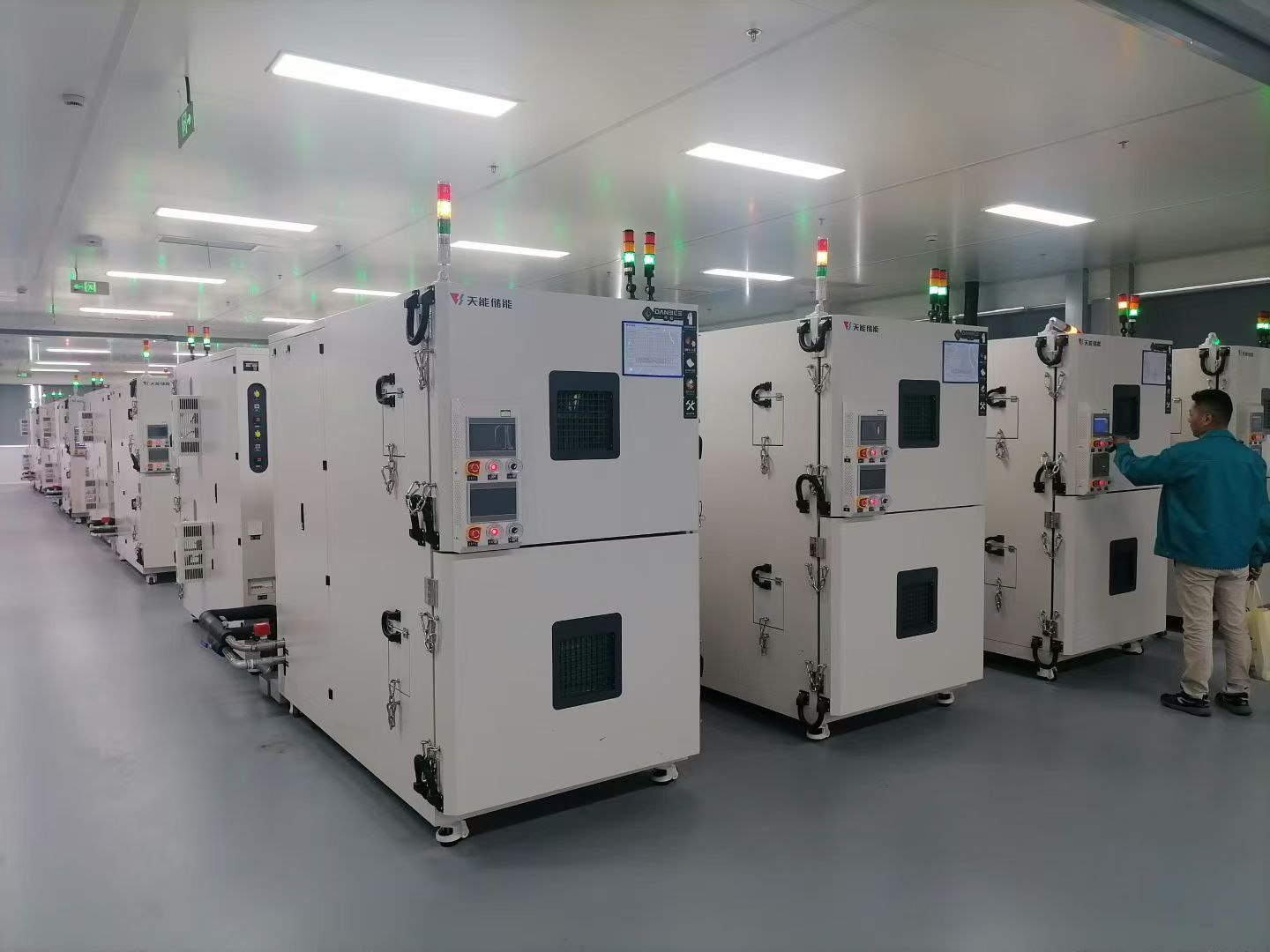

Battery Test Chamber with Charge & Discharge System

Battery Test Chamber with Charge & Discharge System

Name: Battery Test Chamber with Charge & Discharge System
Brand: Danble
Rating: 5.0 (93 reviews)

Engineered for synchronized environmental and electrical stress testing. Combines temperature cycling (-70°C to 150°C), humidity control (10%-98% RH), and programmable charge/discharge cycles (0-60A). Compliant with IEC 62619, GB/T 31486, and UL 2580 standards.

Model:
Customized
Brand:
Danble

Availability:

Quantity:



Inquire Add to Basket

banner1

All-in-One Battery Test Chamber for EV & Industrial Applications

Our integrated charging & discharging battery test chambers combine environmental simulation with advanced electrical stress testing to validate battery performance under rigorous conditons.

|Main Features:

Dual Functionality: Synchronized temperature cycling ( -50℃ to 150℃) and charge/discharge (0-60A, ±1% accuracy).
Precision Testing: Get accurate data on battery capacity and cycle life with adavanced PID control.
Total Safety: Multi-layer protection systems keep your tests secure at all times.
Flexible Use: Adapts to all battery types, from small cells to large EV/grid storage packs.
Easy Data Handling: Export test results directly to Excel for quick analysis.

| Application Scenarios

EV Battery Validation: Simulate fast-charging stress and thermal shock(e.g, -40℃→85℃ transitions).
Grid Storage Testing: Long-term deep discharge and fire resistance evaluation.
Industrial Safety Compliance: Overcharge/over-discharge fault condition simulation.

|Technical Specifications

Chamber Size: 48L-2000L modular configurations.
Control System: PID controlers with 7-inch touchscreen for real-time monitoring.
Data Logging: Export Excel data for capacity fade analysis and compliance reporting.

|Why Choose Us?

Precision PID control for reliable battery performance data.
Industry-leading safety: Explosion-proof design + triple interlock protection.
Customizable (48L-2000L) for 18650 cells to EV battery packs.
ISO 9001 certified with 13+ years of R&D expertise.
Global compliance (IEC, GB, MIL-STD) trusted by Fortune 500

微信截图_20250606100935

FAQs

How does it ensure battery safety during testing?

Triple Safety Systems:
1. Over-temperature/over-pressure shutdown.
2. Gas detection (CO/H₂) with automatic inert gas flushing.

3. Explosion-proof stainless steel construction (SUS 304) and pressure relief valves.

Real-Time Monitoring: Alerts for leaks, swelling, or abnormal voltage spikes via 7-inch touchscreen
What battery types and sizes can it accommodate?

Cell Formats: 18650, 21700, prismatic, and EV battery packs.

Custom Configurations: Modular chambers (48L–2000L) and adjustable fixtures for multi-cell testing.
How precise are its charge/discharge controls?

Current/Voltage Accuracy: ±0.05% FS (Full Scale).

Cycle Parameters: Customizable CC/CV modes, cut-off conditions (voltage, capacity, time), and pulse simulations .
Do you offer on-site installation and training?

Yes. Our engineers provide full deployment support, including:
1.System setup and calibration
2.Operator training (2-3 day sessions)
3.Post-installation validation reports
Can it integrate with existing battery cyclers?

Yes. The chamber supports seamless integration with third-party cyclers (e.g., Neware BTS4000/CE6000) via software control. Parameters like voltage limits and cycle count are adjustable via the chamber’s touchscreen or external software .
How do you handle equipment malfunctions?

24/7 remote support: Diagnostic access via IoT-enabled controllers.
On-site repair: 4-hour response + 24 or 48-hours fix commitment in nearby cities
What payment terms do you accept?

T/T: 50% deposit, 50% before shipment.
L/C: Available for orders ≥$30k.
Flexible terms for long-term partners.
What is your lead time for standard vs. custom orders?

Standard units: 30–45 days after order confirmation.
Custom builds: 60–90 days (includes 3D design review and prototyping).
