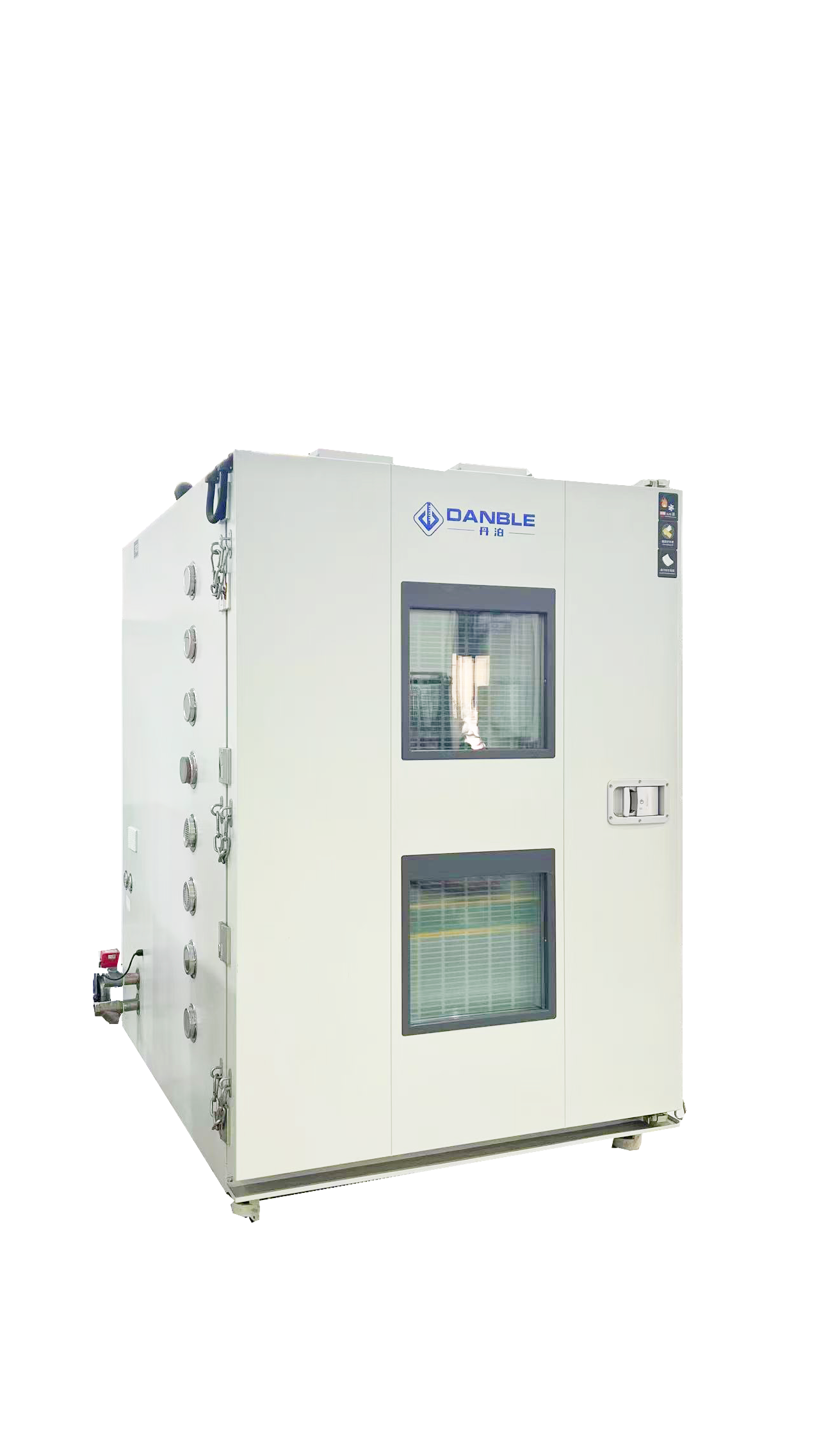

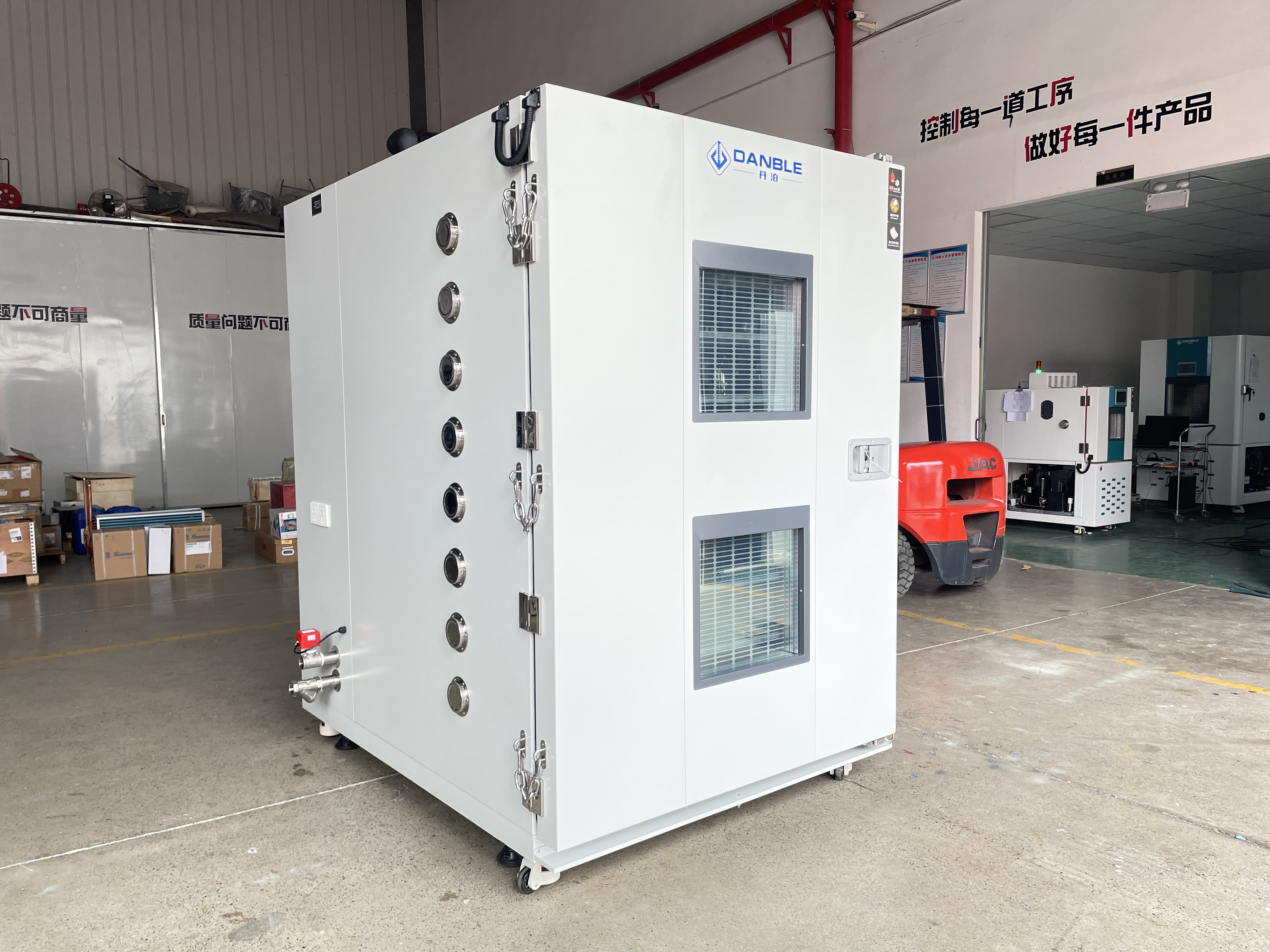

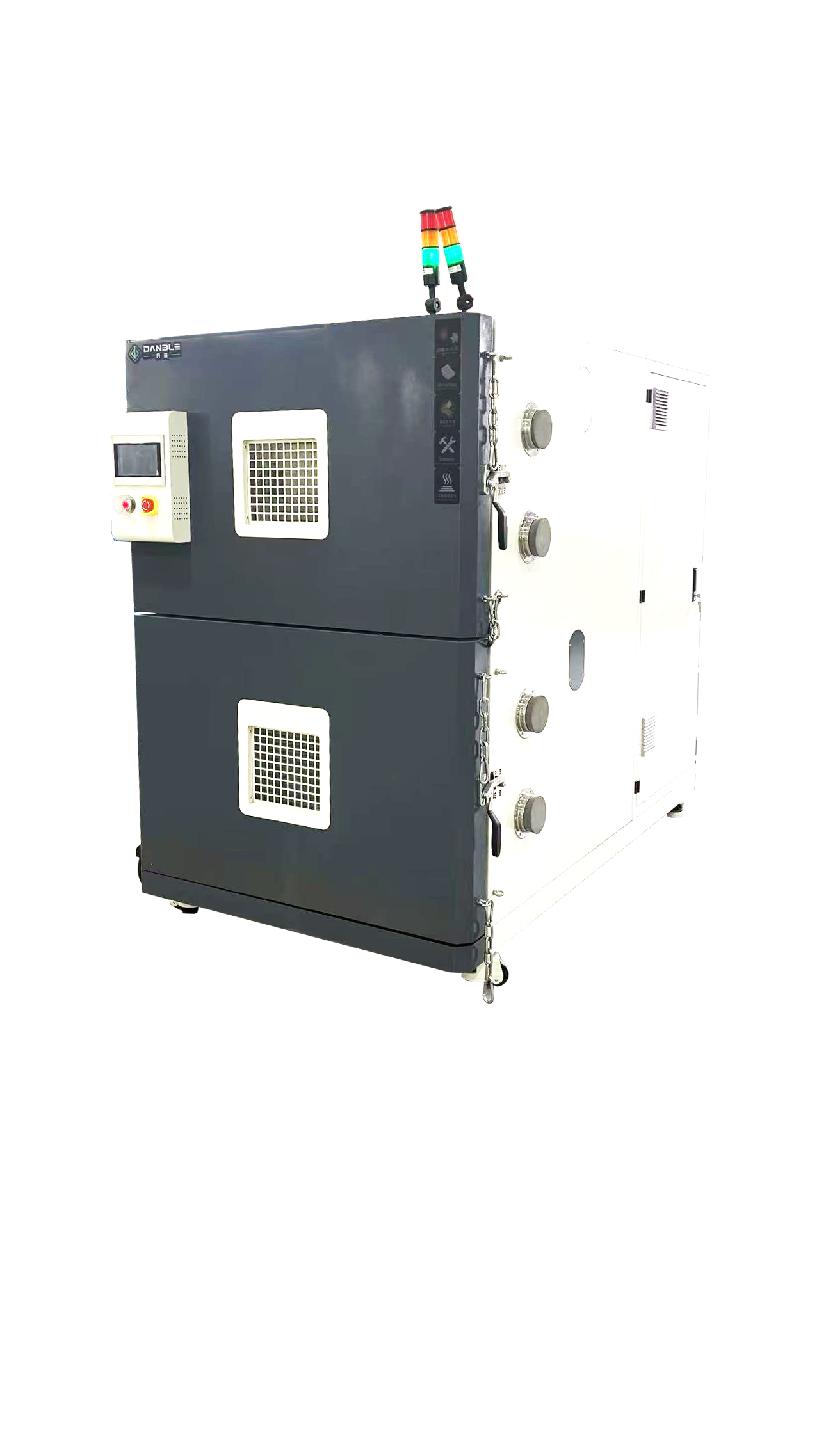

The DBT2-390D3 Two-Zone Temperature & Humidity Test Chamber, a cutting-edge environmental simulation solution designed rigorous thermal validation of materials, electronics, and industrial components. Featuring a dual-layer insulation structure, this chamber delivers exceptional temperature stability, energy efficiency, and scalability for demanding testing requirements.
Separate Thermal Zones: Independent control of upper/lower chambers (each zone supports -40°C to 150°C).
Enhanced Uniformity: ±1.5°C temperature deviation across 1m³ workspace.
Energy Efficiency: Reduced power consumption by 30% via optimized insulation layers (SUS304 stainless steel + aerogel coating).
Rapid Ramp Rates: Up to 10°C/min heating/cooling (adjustable PID algorithm).
Precision Stability: Maintains ±0.5°C consistency under continuous 24/7 operation.

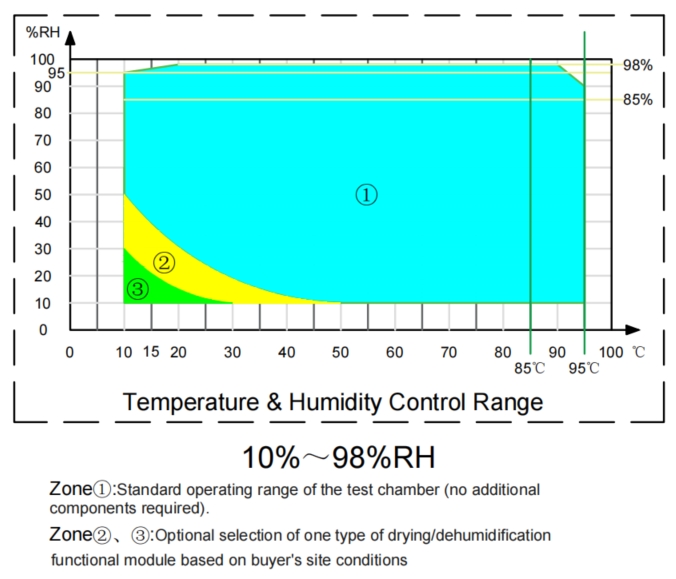

Humidity Integration: Optional humidity module (20–98% RH) for combined thermal-humidity testing.
Reinforced Frame: Seismic-grade steel structure with anti-vibration mounts.
Safety Systems: Over-temperature protection, emergency shutdown, and door interlock.
Modular Design: Expandable for multi-zone or custom chamber configurations.
Electronics Reliability Testing: PCB, semiconductor, and battery thermal cycling.
Automotive Validation: ECUs, sensors, and ADAS components under extreme climates.
Aerospace/Defense: Component qualification per MIL-STD-810G and DO-160G.
Pharmaceuticals: Stability testing per ICH Q1A–Q1E guidelines.
International Standards: IEC 60068-2-2, GB/T 2423.2, ASTM E511.
Industry Certifications: CE, ISO 9001, ISO 14001, ISO45001.
