Three-Zone Thermal Shock Chamber With Environmental Simulation

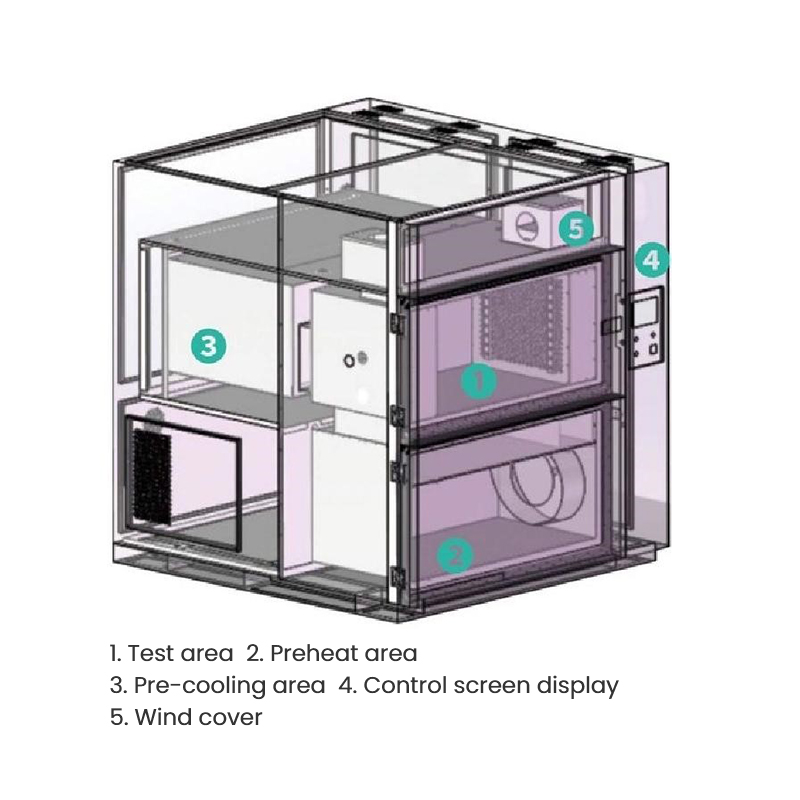

Thermal Shock Test Chamber Structure Diagram

Three-Zone Thermal Shock Chamber with Rapid Recovery Time

Name: Three-Zone Thermal Shock Chamber with Rapid Recovery Time
Brand: Danble
Rating: 5.0 (7 reviews)

This Chamber is an advanced environmental tester for evaluating materials/components' thermal shock resistance. With 3 compartments (high-temp, low-temp, ambient), it enables rapid temperature transitions without sample movement. Suitable for electronics, automotive, aerospace, it meets standards like IEC 60068-2-14/GB/T 2423 and reduces testing mechanical stress.

Model:
DBSS-336
Brand:
Danble

Availability:

Quantity:



Inquire Add to Basket

微信图片_20250924150411_482_14

Product Overview

Three-Zone Thermal Shock Chamber delivers unparalleled accuracy in thermal shock testing, simulating extreme temperature transitions to validate product durability. Designed for electronics, automotive, and aerospace industries, this chamber eliminates mechanical movement of samples, ensuring consistent electrical connectivity and reducing wear. With <5-minute recovery time and compliance with IEC/GB standards, it supports multi-stage testing (e.g., thermal shock + vibration) for comprehensive reliability assessment.

|Key Technical Features

Triple-Zone Design: Independent high-temp, low-temp, and ambient zones enable seamless thermal cycling.

Zero-Movement Testing: Samples reamin stationary, preserving electrical connections and reducing machanical wear.

Ultra-Fast Recovery: Achieves temperature uniformity (±1.5℃） within 5mins after mode switching.

Energy-Efficient Cooling: Advanced refrigeration systems with rapid temperature cycling (20℃ to -55℃ in ≤30mins)

Intelligent Controls: 7-inch touchscreen HMI for programming multi-stage tests.

Integrated safety systems: Over-temperature/under-temperature alarms, compressor overload protection, and leakage detection.

Durable construction: 1.2 mm SUS304 stainless steel for corrosion resistance, equipped with door interlock, E-stop, and phase-loss protection.

Technical Specification

Model	DBST-336
Internal Dimension	700×600×800（WDH/mm）
External Dimension	1700×2200×2650（WDH/mm）
Pre-heating Range	+60℃~+220℃
Heating Rate	3℃/min ( unload, average)
Pre-cooling Range	0℃~-80℃
Cooling Rate	1℃/min (unload, average)
Temperature Accuracy	0.01 ℃
Temperature Uniformity	≤2℃
Temperature Fluctuation	≤±0.5℃
Temperature Deviation	≤±2℃
Thermal Shock Range	A: -20℃~+180℃； B：-40℃~+180℃； C: -55℃~+180℃； D： -65℃~+180℃
Transer Time	≤10s
Recovery Time	≤5mins
Holdover Time	≥30mins
Cooling Method	Water-cooling
Driving Device	Cylinder Drive
Power Supply	380V, 50Hz, ±10% 3/N/PE

Application Scenarios

EV Battery Validation: Cycle life testing under thermal shock and fast-charging conditions.
Grid Storage Testing: Long-term deep discharge and fire resistance evaluation.
Aerospace Certification: High-altitude pressure simulation and vibration resistance.
Material Science: Polymer resilience, metal fatigue testing.
Automotive: Engine components, EV battery systems.

Why Choose Us

Custom Solution: Adjustable capacity and temperature profiles per project needs
Advanced Safety: SDual-layer insulation, real-time alarms, and emergency shutdown.
Global Certification: CE, and ISO 9001 certified.
Global Recognition: Trusted by Fortune 500 companies and R&D labs worldwide.

Ideal For Testing

Battery modules under thermal cycling.
PCB solder joint reliability.
Aerospace component thermal stress resistance.
