Precision-engineered High Alititude Test Chambers for simulating high-altitude and vacuum environments. Validate product reliability under extreme pressure, temperature (-70°C to +150°C), and humidity conditions. Features rapid pressure adjustment (≤45min to 0.5kPa), compliance with GJB150.2 and GB/T2423.25 standards, and robust safety systems.

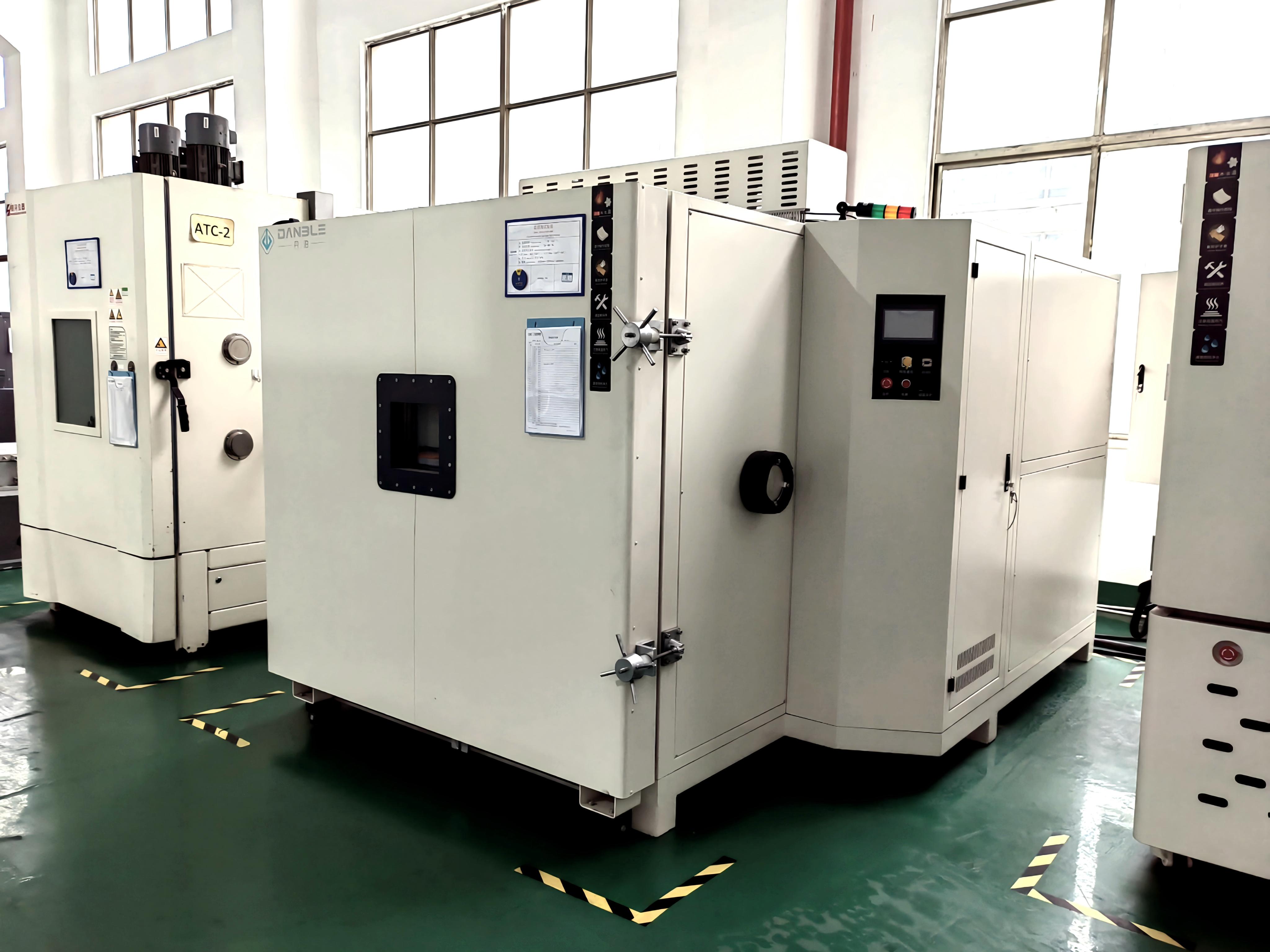

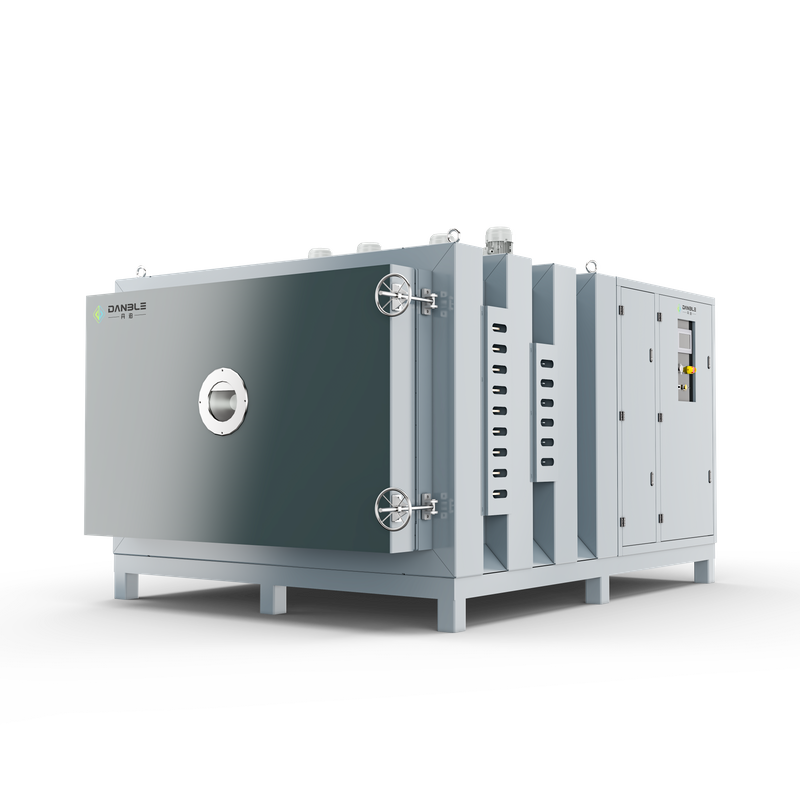

Robust High-altitude Simulation Test Chamber for Low-Pressure & Vacuum Validation
Danble High Altitude Test Chambers are engineered to replicate extreme environmental conditions, ensuring product reliability in aerospace, electronics and defense sectors.
|Key Technical Features:
Pressure Range: Ambient to 0.5kpa with rapid decompressin ( ≤45min).
Temperature Control: -40℃~+80℃ (optional range customized is available) with ±0.5℃ stability, synchronized with vaccum adjustments.
Compliance: GJB150.2, GB/T2423.25, GB/T10590 and MIL-STE-810C standards for altitude testing
Optional Features:
Humidity control for combined temperature-pressure-humidity testing.
Customizable dimensions ( 50L~60000L are available) and data logging for 30-day continuous operation.
|Application Scenarios
Simulate high-altitude environments ( up to 35,800 equivalent altitude).
Electronics and batteries for high-altitude drones and statellites.
Aerospace component sealing and durability validation.
Military equipment performance under thin-air conditions.
|Main Technical Specification
Chamber Size: Customizable (e.g., 252L~60m³).
Vaccum Pump: Mechnical rotary vane or turbo molecular pumps for rapid presssure reduction.
Control System: PLC with touch screen, data logging( 30 or more days history , and USB export.
Cooling: Semi-hermetic compressors with water-cooled condensers.
Why Choose Us?
Efficiency: 20% faster pressure cycling than industry averages.
Customization: Modular designs for large payloads ( up to 1,000kg) and multi-factor testing ( pressure+ temperature+ vibration).
Support: 24/7 remote monitoring and 15-year operational lifespan with certified maintenance.
After-service: Global after-sales support, including installation, calibration, and technical training.
Optimize your product's performance in extreme environments—contact us for tailored testing solutions!
Robust High-altitude Simulation Test Chamber for Low-Pressure & Vacuum Validation
Danble High Altitude Test Chambers are engineered to replicate extreme environmental conditions, ensuring product reliability in aerospace, electronics and defense sectors.
|Key Technical Features:
Pressure Range: Ambient to 0.5kpa with rapid decompressin ( ≤45min).
Temperature Control: -40℃~+80℃ (optional range customized is available) with ±0.5℃ stability, synchronized with vaccum adjustments.
Power line / liquid cooling/communication line/ temp line interface
Test Hole
φ100mm*2
Cooling Way
Water-cooling
Power
3 Phase 380V 50Hz 5 Wire System
G.W
GB/T 2423; GB/T5170; IEC60068;
{"json":"[{\"index\":\"0\",\"tran_label\":\"Internal Volume\",\"tran_value\":[\"504L\"]},{\"index\":\"1\",\"tran_label\":\"Basket Dimension\",\"tran_value\":[\"800×700×900（W×D×H/mm）\"]},{\"index\":\"2\",\"tran_label\":\"External Dimension\",\"tran_value\":[\"1930×2400×2300（W×D×H/mm)\"]},{\"index\":\"3\",\"tran_label\":\"Temperature Range\",\"tran_value\":[\"-40℃~+100℃ or customized\"]},{\"index\":\"4\",\"tran_label\":\"Pressure Range\",\"tran_value\":[\"100kPa~50kPa\"]},{\"index\":\"5\",\"tran_label\":\"Heating Rate\",\"tran_value\":[\"≥3℃/min\"]},{\"index\":\"6\",\"tran_value\":[\"≥1℃/min\"],\"tran_label\":\"Cooling Rate\"},{\"index\":\"7\",\"tran_value\":[\"A: -20℃~+180℃；B：-40℃~+180℃；C: -55℃~+180℃；D：-65℃~+180℃\"],\"tran_label\":\"Thermal Shock Range\"},{\"index\":\"8\",\"tran_label\":\"Temperature Fluctuation\",\"tran_value\":[\"≤±0.5℃\"]},{\"index\":\"9\",\"tran_label\":\"Temperature Uniformity\",\"tran_value\":[\"≤2℃\"]},{\"index\":\"10\",\"tran_label\":\"Temperature Deviation\",\"tran_value\":[\"≤±2℃\"]},{\"index\":\"11\",\"tran_label\":\"Depressurization Rate\",\"tran_value\":[\"100kPa~0.5kPa≤45mins\"]},{\"index\":\"12\",\"tran_value\":[\"±2kPa\"],\"tran_label\":\"Pressure Control Accuracy\"},{\"index\":\"13\",\"tran_value\":[\"Power line / liquid cooling/communication line/ temp line interface\"],\"tran_label\":\"Optional\"},{\"index\":\"14\",\"tran_label\":\"Test Hole\",\"tran_value\":[\"φ100mm*2\"]},{\"index\":\"15\",\"tran_label\":\"Cooling Way\",\"tran_value\":[\"Water-cooling\"]},{\"index\":\"16\",\"tran_label\":\"Power \",\"tran_value\":[\"3 Phase 380V 50Hz 5 Wire System\"]},{\"index\":\"17\",\"tran_label\":\"G.W\",\"tran_value\":[\"GB/T 2423; GB/T5170; IEC60068;\"]}]","type":"2"}
FAQs
What temperature ranges do your test chambers support?
Our standard chambers cover -40°C to +150°C. Custom ranges (e.g., -70°C to +200°C) are available for specialized applications like aerospace or EV battery testing
Can you customize chambers for specific industries (e.g., automotive, aerospace)?
Yes. We design multi-zone chambers (e.g., triple-zone thermal shock) and integrate vibration tables for comprehensive testing. Recent projects include EV motor durability testing for OEMs
Have you worked with automotive clients?
Yes. We supplied thermal shock chambers to a leading EV battery manufacturer for -40°C to +85°C cycling tests. Results improved battery pack lifespan by 18%.
Do you offer on-site installation and training?
Yes. Our engineers provide full deployment support, including: 1.System setup and calibration 2.Operator training (2-3 day sessions) 3.Post-installation validation reports
What warranty coverage is included?
Standard warranty: 12 months (parts + labor). Extended options: Up to 36 months (additional 15% fee). Critical components (compressors, controllers) have extended MTBF ratings.
How do you handle equipment malfunctions?
24/7 remote support: Diagnostic access via IoT-enabled controllers. On-site repair: 4-hour response + 24 or 48-hours fix commitment in nearby cities
What payment terms do you accept?
T/T: 50% deposit, 50% before shipment. L/C: Available for orders ≥$30k. Flexible terms for long-term partners.
What is your lead time for standard vs. custom orders?
Standard units: 30–45 days after order confirmation. Custom builds: 60–90 days (includes 3D design review and prototyping).
{"type": "4"}
About US
Founded 2012 and located in Suzhou, Danble is a professional supplier specializing in the R&D, manufacturing, and sales of environmental test equipments and laboratory testing solutions.
Danble offer a full range of standard and custom-designed temperature test chambers can aid reliability testing by subjecting products to real-world climate and wear extremes like temperature, humidity, altitude, vibration, and more.
This seires of test chamber can simulate various extreme environments to test products. It has wide temperature & humidity range and high control accuracy, and can meet the GB and IEC related test standards.
This series are critical for evaluating products and materials ( EV batteries, assessing PCBs, semiconductors, consumer electronics) under extreme thermal stress conditions
This series has two( two-zone with a transfer basket to cycle samples) or three ( three-zone with isolation valves control airflow direction) zones structure, and supports high & low temperature shock and ambinent temperature test without reconfiguration.
The altitude test chamber (or high-altitude test chamber) is a specialized environmental simulation device designed to replicate conditions at elevated elevations, including low atmospheric pressure, reduced oxygen levels, and temperature extremes. These chambers are critical for validating the performance, safety, and reliability of products across industries such as aerospace, automotive, electronics, and defense
Combined with temperature, humidity and vibration functions, it can be applied to the performance indicators of aerospace products, auto parts, electronic infromation instruments and other samples under harsh comprehensive conditions.
SOLUTION
Semi-conductor
Given the high sensitivity of semiconductors to environmental factors, our solutions focus on accurate control of temperature and humidity. By maintaining a stable and clean testing environment, we help semiconductor manufacturers detect potential defects caused by environmental stress, safeguard product quality during manufacturing processes, and meet the stringent requirements of the semiconductor industry.
Our environmental test chambers can precisely simulate a wide range of conditions such as extreme temperatures (ranging from -70℃ to 180℃), humidity levels (10% - 98% RH), and even low - pressure or high - pressure environments. This enables thorough evaluation of battery performance, including thermal stability, cycle life, and safety under different scenarios, ensuring that batteries meet strict quality and reliability standards.
In the new energy sector, especially in solar and wind energy applications, our testing equipment can simulate real - world environmental conditions like strong sunlight, high wind, and changing temperatures. This allows for the assessment of the durability and performance of new energy devices, contributing to the development of more efficient and reliable clean energy solutions.
Automotive parts need to withstand various harsh environmental conditions during vehicle operation. Danbo's environmental testing solutions subject automotive components to temperature cycling, humidity exposure, and vibration tests. This helps automotive manufacturers ensure that parts can function properly in different climates and driving conditions, enhancing vehicle safety and reliability.
Given the high sensitivity of semiconductors to environmental factors, our solutions focus on accurate control of temperature and humidity. By maintaining a stable and clean testing environment, we help semiconductor manufacturers detect potential defects caused by environmental stress, safeguard product quality during manufacturing processes, and meet the stringent requirements of the semiconductor industry.
Our environmental test chambers can precisely simulate a wide range of conditions such as extreme temperatures (ranging from -70℃ to 180℃), humidity levels (10% - 98% RH), and even low - pressure or high - pressure environments. This enables thorough evaluation of battery performance, including thermal stability, cycle life, and safety under different scenarios, ensuring that batteries meet strict quality and reliability standards.
In the new energy sector, especially in solar and wind energy applications, our testing equipment can simulate real - world environmental conditions like strong sunlight, high wind, and changing temperatures. This allows for the assessment of the durability and performance of new energy devices, contributing to the development of more efficient and reliable clean energy solutions.
Automotive parts need to withstand various harsh environmental conditions during vehicle operation. Danbo's environmental testing solutions subject automotive components to temperature cycling, humidity exposure, and vibration tests. This helps automotive manufacturers ensure that parts can function properly in different climates and driving conditions, enhancing vehicle safety and reliability.
