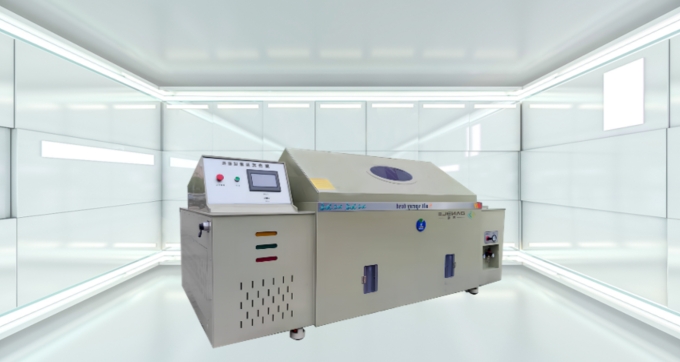

Danble Instruements specialize in designing and deploying advanced salt spray testing systems to accelerate corrosion resistance validation of materials and products, ensuring compliance with international standards. Enable clients to predict product lifespan under marine and industrial corrosion conditions, reducing field failures by 40%~60% through accelerated aging simulations.
1. Technical Specification ( Customizable)
| Parameter | Details |
| Chamber Size | 270L–1200L |
| Temperature Range | 15℃ ~ +65℃ (Customization is available) |
| Humidity Range | 30–98% RH (±3% accuracy) |
| Salt Spray Rate | 1–2 mL/(80 cm²·h) (adjustable via nozzles) |
| Saturation Bucket Temperature Range | RT~+70℃ |
| Power | 3Phase, 380V, 50Hz |
2. Industry-Specific Solutions
A. Automotive & EV Components
Application: Validate anti-corrosion coatings on chassis, battery enclosures, and electrical connectors.
Key Features:
Dynamic Cycles: Simulate coastal environments with 85℃/85%RH + salt spray (240h cycles).
Thermal Shock Synergy: Integrate temperature cycling (-40℃ to +85℃) for thermal expansion stress testing.
B. Electronics & PCBs
Application: Test circuit boards and connectors under salt-laden humidity conditions.
Key Features:
Sealed Design: Prevent salt ingress into sensitive electronics.
Humidity Control: Maintain 95% RH for condensation resistance validation.
C. Marine & Offshore
Application: Assess stainless steel, aluminum alloys, and coatings for shipbuilding.
Key Features:
High-Salt Concentration: 5% NaCl solution with pH 6.5–7.2 (ASTM B117 compliance).
Continuous Operation: 1,200+ hours runtime with automatic refilling system.
D. Aerospace & Defense
Application: Test avionics and missile components under desert/high-altitude corrosion.
Key Features:
MIL-STD Compliance: Synergy with vibration tables for combined thermal-shock testing.
Infrared Monitoring: Track corrosion progression via thermal imaging.
3. Implementation Workflow
Needs Assessment: Define test objectives (e.g., salt spray resistance, cyclic corrosion validation).
Custom Design: Select chamber size, spray rate, and sensor integration (e.g., corrosion coupons).
Installation & Training: On-site setup with 48h rapid deployment; operator certification programs.
Validation: Run reference tests (e.g., Aluminum coupon corrosion rate tracking).
Ongoing Support: After-service, annual calibration, and spare parts availability.
4. Competitve Advantages
Flexibility & Customization
Energy Efficiency & Low Operational Coasts
Comprehensive After-sales Support
5. Service Pacakges
Basic: Chamber + standard calibration + 1-year warranty
Add: Dedicated support team, custom test protocols, bulk order discounts
6. Call To Action: Contact our corrosion testing experts to design a tailored salt spray validation protocol for your products.
