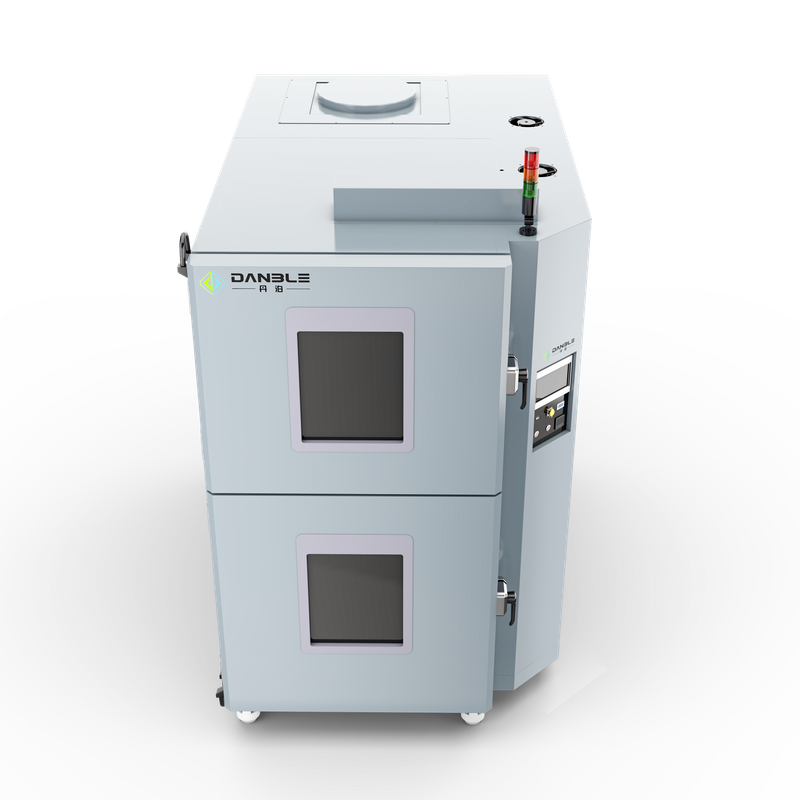

DBST-1000 Up-Down Two-Zone Thermal Shock Test Chamber
Share to:
The Up-Down Two Zone Thermal Shock Chamber is engineered to evaluate the durability of products, components, and materials under extreme temperature transitions. This system features a dual-chamber design (high-temperature and low-temperature zones) with a movable basket that rapidly transitions samples between zones (≤10 seconds), simulating sudden thermal shocks.
The Up-Down Basket Thermal Shock Test Chamber features an up-down basket structure that enables rapid transfer of test samples between high-temperature and low-temperature zones, simulating extreme temperature shock environments. This chamber is capable of achieving a wide range of temperature differentials, ensuring precise and repeatable test conditions.
|Key Features:
Rapid Switching: ≤10 seconds transition time between -70℃ and +180℃.
High Precision: ±0.5℃ temperature stability and ±2℃ uniformity.
Customizable chamber sizes (e.g., 50L–2000L) and basket dimensions (e.g., 300×300×400mm to 1000×1000×1000mm).
Modular Design: Vertical basket movement for minimal mechanical stress on samples.
Triple safety systems: over-temperature protection, power overload detection, and emergency shutdown and leak-proof design with automatic pressure relief.
Energy Efficiency: Regenerative refrigeration system reduces energy consumption by 30% compared to traditional models.
User-friendly Interface: 7-inch touchscreen controller with programmable cycles (1–9999 cycles) and real-time data logging.
|Core Advantages:
✅ Space Efficiency: Vertical stacking design reduces lab footprint by 30% vs tranditional chambers.
✅ Customizable Configurations:Optional vibration integration for mechnical-environmental stress tests.
✅ Broad Applications: Validated for EV batteries (GB38031-2020), aerospace components (MIL-STD-810D), and consumer electronics.
| Application Scenarios
Electronics: Validate PCB thermal shock resistance in automotive dashboards
Energy: Test lithium battery performance under -40°C to +85°C cycles
Aerospace: Simulate stratospheric temperature fluctuations for satellite components
|Compliance Standards
IEC 60068-2-14 (Environmental Testing)
MIL-STD-810G (Mechanical Vibration)
GB/T 2423.22 (Temperature Cycling)
|Why Choose Us?
ISO 9001 Certified Manufacturer with 13+ years of R&D experience
Customizable Configurations: Support non-standard sizes and temperautre ranges per project needs.
Global Compliance: Meets IEC, GB, GJB, and UL standards
Global Recognition: Trusted by Fortune 500 companies and R&D labs worldwide.
The Up-Down Basket Thermal Shock Test Chamber features an up-down basket structure that enables rapid transfer of test samples between high-temperature and low-temperature zones, simulating extreme temperature shock environments. This chamber is capable of achieving a wide range of temperature differentials, ensuring precise and repeatable test conditions.
|Key Features:
Rapid Switching: ≤10 seconds transition time between -70℃ and +180℃.
High Precision: ±0.5℃ temperature stability and ±2℃ uniformity.
Customizable chamber sizes (e.g., 50L–2000L) and basket dimensions (e.g., 300×300×400mm to 1000×1000×1000mm).
Modular Design: Vertical basket movement for minimal mechanical stress on samples.
Triple safety systems: over-temperature protection, power overload detection, and emergency shutdown and leak-proof design with automatic pressure relief.
Energy Efficiency: Regenerative refrigeration system reduces energy consumption by 30% compared to traditional models.
User-friendly Interface: 7-inch touchscreen controller with programmable cycles (1–9999 cycles) and real-time data logging.
|Core Advantages:
✅ Space Efficiency: Vertical stacking design reduces lab footprint by 30% vs tranditional chambers.
✅ Customizable Configurations:Optional vibration integration for mechnical-environmental stress tests.
{"json":"[{\"index\":\"0\",\"tran_label\":\"Internal Volume\",\"tran_value\":[\"1000L\"]},{\"index\":\"1\",\"tran_label\":\"Internal Dimension\",\"tran_value\":[\"1000×1000×1000（W×D×H/mm）\"]},{\"index\":\"2\",\"tran_label\":\"Temperature Range\",\"tran_value\":[\"-70℃~+180℃ or customized\"]},{\"index\":\"11\",\"tran_label\":\"Thermal Shock Range\",\"tran_value\":[\"A: -20~+180℃；B: -40~+180℃；C: -55℃~+180℃；D: -65℃~+180℃\"]},{\"index\":\"4\",\"tran_label\":\"Heating Range\",\"tran_value\":[\"+60℃~+200℃\"]},{\"index\":\"5\",\"tran_label\":\"Heating Rate\",\"tran_value\":[\"(+60~150℃）≤45mins\"]},{\"index\":\"6\",\"tran_value\":[\"（+20~-70℃）≤45mins\"],\"tran_label\":\"Cooling Range & Rate\"},{\"index\":\"7\",\"tran_label\":\"Temperature Fluctuation\",\"tran_value\":[\"≤±0.5℃\"]},{\"index\":\"8\",\"tran_label\":\"Temperature Uniformity\",\"tran_value\":[\"≤2℃\"]},{\"index\":\"9\",\"tran_label\":\"Temperature Deviation\",\"tran_value\":[\"≤±2℃\"]},{\"index\":\"10\",\"tran_label\":\"Transition Time\",\"tran_value\":[\"≤10s\"]},{\"index\":\"12\",\"tran_label\":\"Holdover Time\",\"tran_value\":[\"≥30mins\"]},{\"index\":\"13\",\"tran_label\":\"Noise\",\"tran_value\":[\"≤69dB\"]},{\"index\":\"14\",\"tran_label\":\"Test Hole\",\"tran_value\":[\"φ100mm*2\"]},{\"index\":\"15\",\"tran_label\":\"Cooling Way\",\"tran_value\":[\"Water-cooling\"]},{\"index\":\"19\",\"tran_label\":\"Driving Device\",\"tran_value\":[\"Cylinder Drive or Motor Drive\"]},{\"index\":\"17\",\"tran_label\":\"Power \",\"tran_value\":[\"3 Phase 380V 50Hz 5 Wire System\"]},{\"index\":\"18\",\"tran_label\":\"Standard\",\"tran_value\":[\"GB/T 2423; GB/T5170; IEC60068;\"]}]","type":"2"}
FAQs
What temperature ranges do your test chambers support?
Our standard chambers cover -40°C to +150°C. Custom ranges (e.g., -70°C to +200°C) are available for specialized applications like aerospace or EV battery testing
Can you customize chambers for specific industries (e.g., automotive, aerospace)?
Yes. We design multi-zone chambers (e.g., triple-zone thermal shock) and integrate vibration tables for comprehensive testing. Recent projects include EV motor durability testing for OEMs
Have you worked with automotive clients?
Yes. We supplied thermal shock chambers to a leading EV battery manufacturer for -40°C to +85°C cycling tests. Results improved battery pack lifespan by 18%.
Do you offer on-site installation and training?
Yes. Our engineers provide full deployment support, including: 1.System setup and calibration 2.Operator training (2-3 day sessions) 3.Post-installation validation reports
What warranty coverage is included?
Standard warranty: 12 months (parts + labor). Extended options: Up to 36 months (additional 15% fee). Critical components (compressors, controllers) have extended MTBF ratings.
How do you handle chamber malfunctions?
24/7 remote support: Diagnostic access via IoT-enabled controllers. On-site repair: 4-hour response + 24 or 48-hours fix commitment in nearby cities
What payment terms do you accept?
T/T: 50% deposit, 50% before shipment. L/C: Available for orders ≥$30k. Flexible terms for long-term partners.
What is your lead time for standard vs. custom orders?
Standard units: 30–45 days after order confirmation. Custom builds: 60–90 days (includes 3D design review and prototyping).
{"type": "4"}
About US
Founded 2012 and located in Suzhou, Danble is a professional supplier specializing in the R&D, manufacturing, and sales of environmental test chambers and laboratory testing solutions.
Danble offer a full range of standard and custom-designed temperature test chambers can aid reliability testing by subjecting products to real-world climate and wear extremes like temperature, humidity, altitude, vibration, and more.
This seires of test chamber can simulate various extreme environments to test products. It has wide temperature & humidity range and high control accuracy, and can meet the GB and IEC related test standards.
This series are critical for evaluating products and materials ( EV batteries, assessing PCBs, semiconductors, consumer electronics) under extreme thermal stress conditions

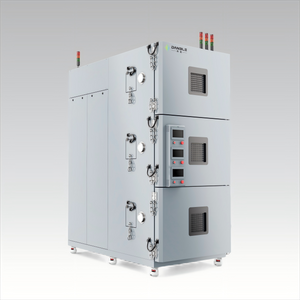

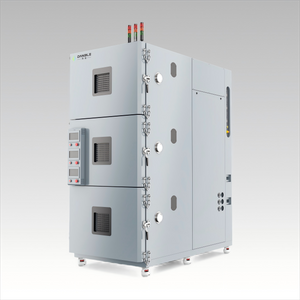

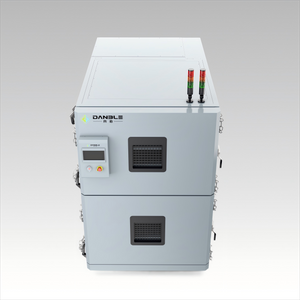

This series has two( two-zone with a transfer basket to cycle samples) or three ( three-zone with isolation valves control airflow direction) zones structure, and supports high & low temperature shock and ambinent temperature test without reconfiguration.
