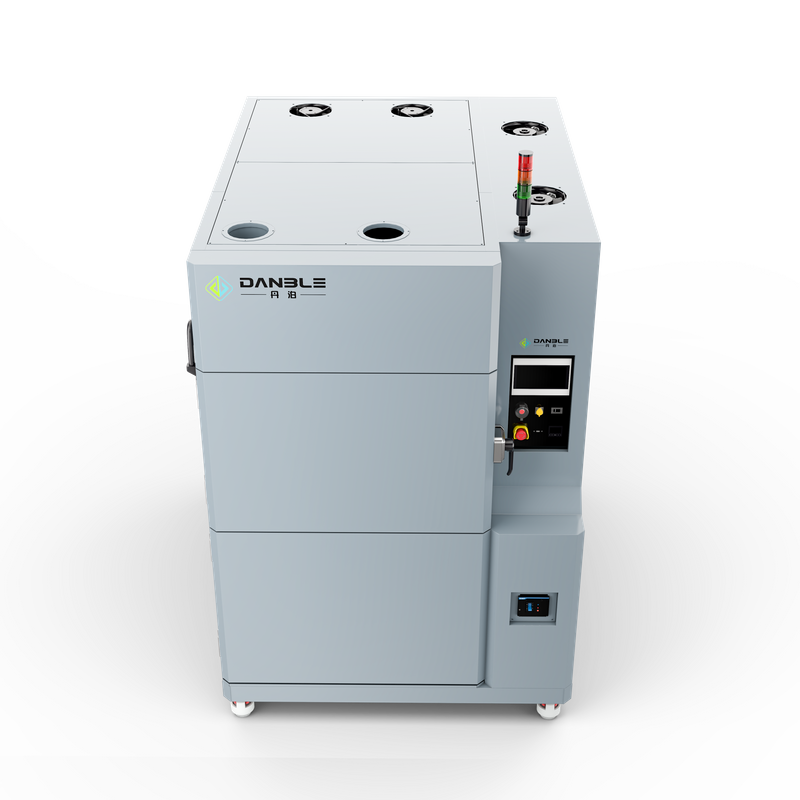

DBST-400 Non-Moving Sample Thermal Shock Chamber

DBST-400 Non-Moving Sample Thermal Shock Chamber

Name: DBST-400 Non-Moving Sample Thermal Shock Chamber
Brand: Danble
Rating: 5.0 (92 reviews)

This Thermal Shock Chamber features three distinct zones (hot, cold, test) to deliver rapid temperature transitions. It simulates extreme thermal shocks, enabling precise evaluation of product durability, material stability, and performance under abrupt temperature changes, suitable for electronics, automotive, and aerospace testing.

Model:
DBST-400
Brand:
Danble

Availability:

Quantity:



Inquire Add to Basket

微信图片_20250924150411_482_14

The Triple-Zone Temperature Shock Test Chamber (also termed 3-Zone Thermal Shock Tester) is engineered for accelerated aging and environmental stress testing.

|Technical Specifications:

Three-Zone Design: High, low, and static test zones ensure no physical movement of samples.
Zero Mechanical Stress: Samples remain stationary during transitions, avoiding vibration damage.
Ultra-Fast Recoery: ≤5 minutes to stabilize after zone switching.
Robust Construction: Stainless steel interior (SUS 304) and insulation layers ensure thermal efficiency and durability.
Cooling Method: Air/Water Cooled
Control System: 7-inch Touchscreen + PLC-controlled touchscreen with data logging and remote monitoring

|Core Advantages:

✅ Space Efficiency: Vertical stacking design reduces lab footprint by 30% vs tranditional chambers.

✅ Customizable Configurations:Optional vibration integration for mechnical-environmental stress tests.

✅ Safety Features: Auto-fire suppression, pressure relief valves, and real-time alarms.

✅ Broad Applications: Validated for EV batteries (GB38031-2020), aerospace components (MIL-STD-810D), and consumer electronics.

| Application Scenarios

Electronics: Validate PCB thermal shock resistance in automotive dashboards
Energy: Test lithium battery performance under -40°C to +85°C cycles
Aerospace: Simulate stratospheric temperature fluctuations for satellite components

|Compliance Standards

IEC 60068-2-14 (Environmental Testing)
MIL-STD-810G (Mechanical Vibration)
GB/T 2423.22 (Temperature Cycling)

|Why Choose Us?

ISO 9001 Certified Manufacturer with 13+ years of R&D experience
Customizable Configurations: Support non-standard sizes and temperautre ranges per project needs.
Global Compliance: Meets IEC, GB, GJB, and UL standards
Global Recognition: Trusted by Fortune 500 companies and R&D labs worldwide.
