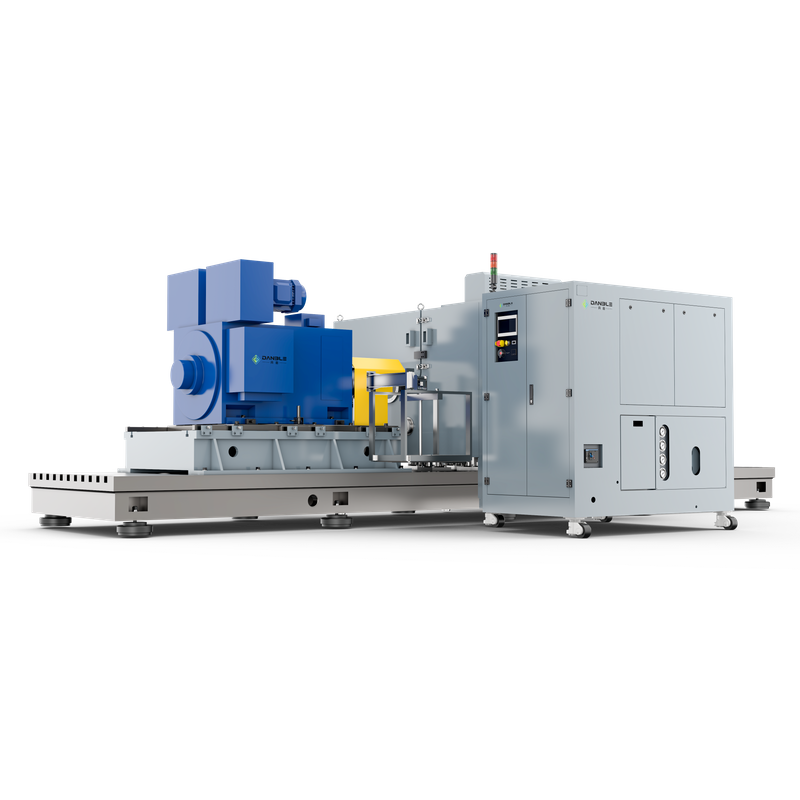

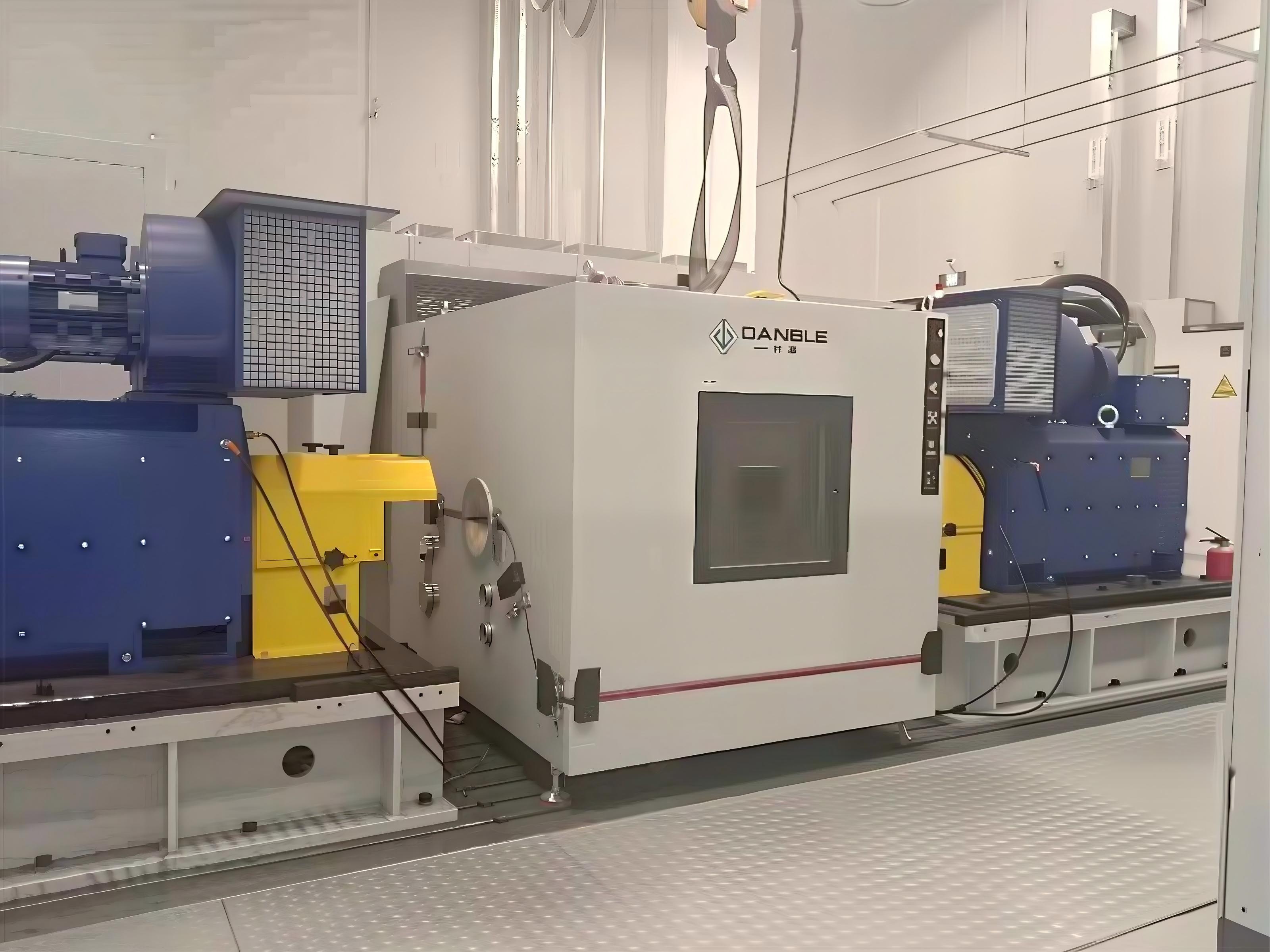

Advanced Dual Motor Multi-tier Test Chamber: Precision Engineering for Next-gen EV Development
Adatable Architecture: Offers three structural configurations--integrated, split-type, and angled- to accommdate diverse laboratory layouts and testing requirements.
Space Efficiency: Split-type design separates the refrigeration unit from the main chamber, ideal for compact labs. The integrated version features top-mounted lifting for streamlined installation.
Uniform Temeprature Distribution: Ensures ±0.5℃ stability across the workspace (-40℃ to + 180 ℃），critical for EV motor endurance testing.
Anti-Frost Technolgoy: Specialized shaft seals prevent condensation during low-temperature operations; Soft silicone plugs on bottom support holes block moisture ingree.
Dynamic Torque Control: Achieve ±0.1% torque accuracy with real-time feedback, simulating road-load conditions.
Multi-Axis Synchoronization: Coordinates dual motors for coordinated toruqe distribution, validation EV drivetrain performance under complex scenarios.
Multi-Protocol Support: RS485, LAN and CAN interfaces with 10-inch touchscreen with customized test profiles and automatd data logging.
Customizable Configurations: Load simulation and size flexibility.
Safety Protocols: Overload protection, E-stop circuits and thermal fuse integration.
|Technical Specification
| Temperature Range | -40℃ ~ + 150℃ |
| Humidity Control | 10%~98%RH(optional) |
| Heating Rate | 1~15℃/min |
| Cooling Rate | 1~15℃/min |
| Temperature Fluctuation | ≤±0.5℃ |
| Temperature Uniformity | ≤2℃ |
| Humidity Fluctuation | ≤±3%RH |
| Standard Reference: JESD22-A106B; GJB-150A; MIL-STD-810G; MIL-STD-202G,; GB/T2423.1; GB/T2423.2; GB/T2423.3; GB/T 5170.2; IEC 60068 | |
|Application
EV Motor Validation: Thermal shock testing (-40℃ +120℃） for battery cooling systems;
Drivetrain Durability: Simulate 10,000+km of road conditions in accelerated aging tests;
Efficiency Mapping: Continuous torque-speed curve generation under ISO 11452-5 standards.
|Energy Efficiency and Maintenance
Energy-Saving Design: High-efficiency components, variable frequency drives for fans, and optimized insulation reduce power consumption, lowering operational costs.
Easy Maintenance: Accessible components such as filters, compressors, and sensors allow for straightforward cleaning and replacement.
Self-Diagnositc Functions: Built-in diagnostics help identify faults quickly, minimizing downtime and maintenance efforts.
Low Noise Operation: Engineered to operate with minimal noise, creating a more comfortable working environment.
|Customization Options
Chamber Size and Configuration: Tailored to accommodate specific test item dimensions and quantities.
Customized temperature range and rate: Achieve precise thermal testing tailored to your specifications. Our system supports custom temperature ranges from -70°C to +180°C and rapid transition rates up to 15°C per minute, ensuring flexibility for diverse testing requirements..
Control System Customization: Adaptable software to meet unique testing protocols and data management requirements.
|Manufacturer Support and Service
Professional Installation and Training: On-site setup by qualified technicians and comprehensive training for operators to ensure proper use and miantenance.
Warranty and After-Sales Service: Standard 1-2 year warranty with options for extended coverage, plus 24/7 technical support to address inquiries and resolve issues promptly.
Spare parts and Maintenance Plans: Readily available spare parts and customized maintenance packages to maximize chamber uptime and lifespan.
Calibration and Certification: Support for regular calibaration services to ensure onging accuracy and compliance with indusrty standards.
For detailed specifications or case studies, refer to manufacturer documentation or contact sales teams.
