|Product Overview

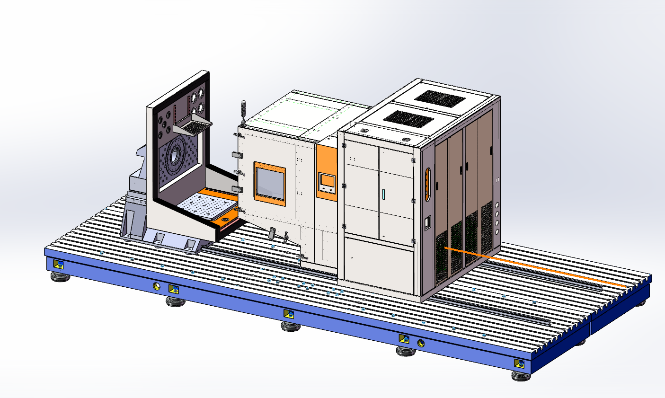

The Single Motor Test Bench Chamber is an advanced testing solution designed for evaluating the performance and endurance of motors under controlled environmental conditions. It simulates a range of temperature and humidity scenarios, enabling accurate testing of motor functionality, reliability, and long-term durability. This chamber is particularly beneficial for the performance evaluation of new energy vehicle motors and other critical motor components.
Stable Temperature and Humidity Control: Equipped with a state-of-the-art environmental simulation control system, which allows for precise regulation of both temperature and humidity, which ensures that motors are tested under stable, real-world conditions, ensuring accurate performance results. Whether simulating extreme cold or heat, or varying humidity levels, this chamber provides a controlled environment that mirrors the conditions motors will face in real-world applications.
Wide Temperature Range: Offers an extensive temperature range, which is adjustable to suit the specific testing requirements, which allows for simulations of both high and low-temperature extremes, making it suitable for a wide range of testing scenarios.
High Humidity Range: Provides adjustable humidity levels, which are crucial for assessing the motor’s performance and longevity in various environmental conditions. This is particularly valuable for testing the durability and aging process of motors that may be exposed to humid environments, such as motors used in coastal areas or tropical climates.
Customizable Test Configurations:The structure is fully customizable to accommodate the unique needs of each testing scenario. The design can be adjusted to fit different sizes and types of motors, ensuring that every test is set up according to your specific requirements. Whether testing small motors or large industrial machines, it can be configured to support a wide variety of components.
Energy-Efficient Design: Designed with energy efficiency in mind, helping to minimize operational costs while still maintaining high performance. The chamber’s advanced temperature and humidity control systems are optimized to deliver accurate results without consuming excessive energy.
Reliable and Accurate Test Results:The testing conditions are carefully controlled and monitored to ensure reliable, repeatable results. Sensors and controllers continuously monitor and adjust the environment to meet the exact parameters set for each test, providing you with high-quality data for motor performance analysis.
Durability and Longevity: Built with high-quality materials, iis designed for long-term use, even in the most demanding testing environments. The robust construction ensures that the chamber will withstand years of continuous testing without degradation of performance.
|Technical Features
| Internal Volume | 1000L |
| Internal Dimensions | 1000×1000×1000（mm） |
| Temperature Range | -50℃ to 150℃ |
| Humidity Range | 10%~98%RH |
| Heating Rate | (RT→+150℃ 2-15℃/min) Avg |
| Cooling Rate | (RT→-400℃ 2-15℃/min) Avg |
| Temperature Fluctuation | ±0.5℃ |
| Temperature Uniformity | 2℃ |
| Humidity Deviation | ±3.0% RH（ ＞75%R.H）；±5.0%RH（≤75%R.H） |
|Application
New Energy Vehicles (NEVs):In the automotive industry, particularly in the development of new energy vehicles, the Motor Test Chamber plays a crucial role in evaluating the performance and endurance of electric motors. It allows manufacturers to simulate extreme driving conditions, such as high temperatures and varying humidity, to test motor efficiency, battery life, and overall reliability.
Automotive Gearbox Testing:Gearboxes in automotive applications are subject to wear and tear over time. By using the Motor Chamber for temperature and humidity stress testing, manufacturers can assess the longevity and durability of gearbox systems, ensuring they can withstand extreme conditions without failure.
Electronics and Consumer Goods:Motors are integral to many electronic devices, from home appliances to power tools. The Single Motor Test Chamber is used to simulate real-world environmental conditions, testing the longevity and reliability of motors in these products to ensure high-quality performance over their lifespan.
Aerospace Applications:In aerospace, motors need to operate reliably in a wide range of temperatures and pressures. The Motor Test Chamber can simulate various environmental conditions that these motors would encounter during flight, including extreme heat, cold, and humidity, ensuring that aerospace components meet stringent performance standards.
Industrial Machinery Testing:Industrial motors used in manufacturing and production lines need to withstand tough conditions. The Single Motor Test Chamber helps manufacturers evaluate motor performance under extreme environmental conditions to ensure that industrial machinery continues to operate efficiently and safely.
Research and Development (R&D):Engineers and researchers can use the Motor Test Chamber to develop new motor technologies and conduct in-depth studies on the effects of temperature and humidity on motor performance. The chamber is a vital tool for innovation in the field of motor engineering.
Operating the Single Motor Test Chamber is straightforward, thanks to its user-friendly interface and intuitive controls. Here is a step-by-step guide on how to operate the chamber effectively:
Power On the Chamber:Ensure that the chamber is connected to a stable power supply. Turn on the main power switch located on the control panel.
Set Temperature and Humidity Parameters:Using the touchscreen control panel, set the desired temperature and humidity levels for the test. The chamber’s control system allows for precise adjustments to ensure accurate testing conditions.
Load the Motor for Testing:Once the environment is set, carefully load the motor into the test chamber. Ensure that the motor is securely positioned and connected to any necessary testing chamber.
Start the Test:Press the “Start” button to begin the test. The chamber will automatically begin to simulate the pre-set temperature and humidity conditions. Sensors inside the chamber will continuously monitor and adjust the environment as needed to maintain the set parameters.
Monitor Test Results:During the test, you can monitor the motor’s performance via the chamber’s integrated data logging system. The system records vital information such as temperature, humidity, and motor response, providing valuable data for analysis.
End the Test and Remove the Motor:Once the test is complete, the system will alert you. Turn off the motor, disconnect it from the chamber, and remove it carefully.
Review and Analyze Data:Use the data logged during the test to assess motor performance. The chamber’s software provides detailed reports, which can be used to evaluate motor behavior under different environmental conditions.
Q: What types of motors can be tested in the Single Motor Test Chamber?
A: The Motor Test Chamber is designed to accommodate a wide variety of motors, including those used in automotive, aerospace, electronics, and industrial applications. The chamber can be customized to fit motors of different sizes and configurations.
Q:What is the temperature range of the chamber?
A: The Single Motor Test Chamber offers a wide temperature range, typically from -40°C to +150°C, allowing for testing in both extreme cold and heat.
Q:Can the humidity levels be controlled independently of temperature?
A: Yes, the chamber allows for independent control of both temperature and humidity. This provides flexibility for testing motors in a variety of environmental conditions.
Q: How long does a typical test last?
A: The duration of each test can vary depending on the motor type and the test parameters. Typically, tests range from a few hours to several days.
Q: Is the chamber energy-efficient?
A: Yes, the Single Motor Test Chamber is designed with energy efficiency in mind, helping to reduce operating costs without compromising performance.
Q: Can the chamber be used for long-term aging tests?
A: Absolutely. The chamber is ideal for both short-term performance testing and long-term aging simulations, providing a reliable solution for evaluating motor durability over extended periods.
Q: What kind of maintenance does the chamber require?
A: Regular maintenance includes cleaning the chamber, inspecting seals and insulation, and calibrating sensors for accurate readings. Consult the user manual for detailed maintenance instructions.
