DBT-300*4
Danble
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

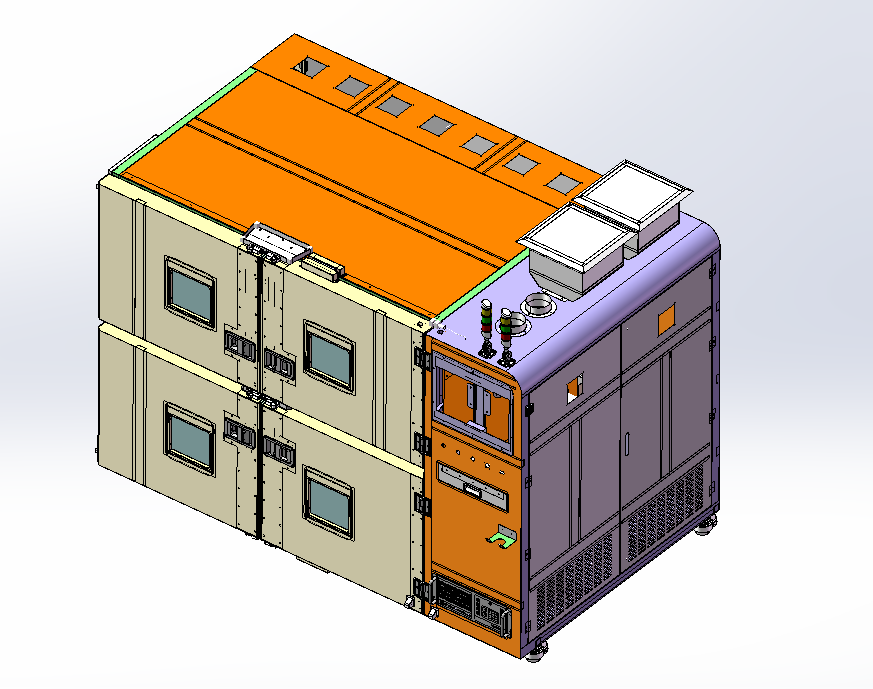

1-in-4 Multi-Zone High-Low Temperature Test Chamber: Reliability Testing Solution and More Power-saving.
Quad-Zone Independence: Each cabinet functions independently, enabling the simultaneous testing of different samples under different temperature conditions. Multiple tests can be carried out at the same time without interference.
Shared Refrigeration System: Use only one set of refrigeration system to control the temperature in all four rooms. This not only simplifies the overall structure but also reduces energy consumption. Each cabinet can be set to run at a different temperature value.
Energy Efficiency: Advanced refrigeration system and structure reduces energy consumption by 30% ~40% compared to conventional models.
Customizable Configurations: Supports volume options.
Low-Temperature Frost Prevention: Optimized airflow avoids condensation at -65℃.
Safety & Monitoring: Explosion-proof vents, multi-layer protection; Real-time data logging, pressure relief systems, and remote alerts ensure safe operation.
|Technical Specification
| Internal Volume | 300L*4 |
| Internal Dimensions | W800×D600×H600（mm） |
| External Dimensions | W2085×D1840×H1920（mm） |
| Temperature Range | -40℃ to +150℃ |
| Temprerature Uniformity | ≤2℃ |
| Temperature Fluctuation | ≤±0.5℃ |
| Temperature Deviation | ≤±2℃ |
| Heating Rate | 1~3℃/min |
| Cooling Rate | 0.7~1℃/min |
| Energy Consumption | Four cabinet -20℃ constant 8.2kWh, ＜ 12kWh(traditional type) |
| Four cabinet -25℃ constant 3.5kWh, ＜ 7.2kWh(traditional type) | |
| Four cabinet -45℃ constant 3.2kWh, ＜ 6.4kWh(traditional type) | |
| Standard Reference: JESD22-A106B; GJB-150A; MIL-STD-810G; MIL-STD-202G,; GB/T2423.1; GB/T2423.2; GB/T2423.3; GB/T 5170.2; IEC 60068 | |
|Application
Battery Testing: Validate lithium-ion, nickel-metal hydride, lead-acid, and solid-state batteries under thermal stress;
Electronics and Eletrical Products: Validate PCBs, semiconductors, and displays under thermal cycling;
Automotive Components: Tests ECUs, senosrs, battry packs and interior materials for extreme cliamte resilence;
Aerospace and Defense: Certify chamber for high-altitude temperature stress;
Industrial and Consumer Products: Assess thermal stress resistance of mechanical parts and consumer electronics under various climatic conditions.
Medical Devices: Ensure reliability of diagnositc tools in fluctuating environments.
|Energy Efficiency and Maintenance
Energy-Saving Design: High-efficiency components, variable frequency drives for fans, and optimized insulation reduce power consumption, lowering operational costs.
Easy Maintenance: Accessible components such as filters, compressors, and sensors allow for straightforward cleaning and replacement.
Self-Diagnositc Functions: Built-in diagnostics help identify faults quickly, minimizing downtime and maintenance efforts.
Low Noise Operation: Engineered to operate with minimal noise, creating a more comfortable working environment.
|Customization Options
Chamber Size and Configuration: Tailored to accommodate specific test item dimensions and quantities.
Customized temperature range and rate: Achieve precise thermal testing tailored to your specifications. Our system supports custom temperature ranges from -70°C to +180°C and rapid transition rates up to 15°C per minute, ensuring flexibility for diverse testing requirements..
Control System Customization: Adaptable software to meet unique testing protocols and data management requirements.
|Manufacturer Support and Service
Professional Installation and Training: On-site setup by qualified technicians and comprehensive training for operators to ensure proper use and miantenance.
Warranty and After-Sales Service: Standard 1-2 year warranty with options for extended coverage, plus 24/7 technical support to address inquiries and resolve issues promptly.
Spare parts and Maintenance Plans: Readily available spare parts and customized maintenance packages to maximize chamber uptime and lifespan.
Calibration and Certification: Support for regular calibaration services to ensure onging accuracy and compliance with indusrty standards.
For detailed specifications or case studies, refer to manufacturer documentation or contact sales teams.
