DBWH-8
Danble
| Availability: | |
|---|---|
| Quantity: | |

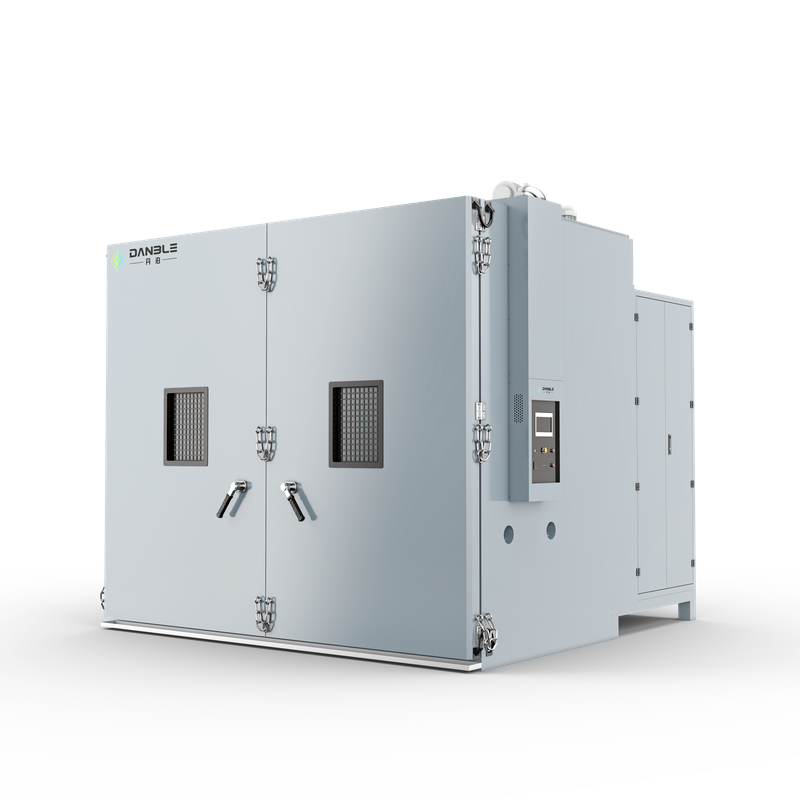

The Walk-In Temperature & Humidity Test Chamber replicates extreme environmental conditions to validate product reliability. Its advanced system ensures uniform temperature distribution ( ±0.5 ℃) and humidity stability ( ±2%RH）， critical for pharmaceutical shelf-life studies and electronics durability assessments.
Multi-environment Simulation: Thermal cycling, and humidity stress.
High Precision: ±0.5℃ temperature control and ±2% humidity accuracy.
Dual-Parameter Control: Independent temperature and humidity regulation with rapid response ( 90-minute stabilization).
User-Friendly Interface: 10 Inch Touchscreen for parameter setup and cycle programming.
Low-Temperature Frost Prevention: Optimized airflow avoids condensation at -65℃.
Date Logging: Intergrated sensors for real-time monitoring and USB/RS-485 export.
Scalable Design: Customizable interior dimensions ( e.g., 2000×2000×2000mm) to accommodate large samples.
Safety Systems: Overload protection, leak detection, and emergency shutdown protocols.
|Technical Specification
| Internal Volume | 8m³ |
| Internal Dimensions | 2000×2000×2000（mm） |
| Temperature Range | -70℃ to 150 ℃ (customizable) |
| Humidity Range | 10%~98%RH |
| Control System | PLC+ Touchscreen(Multi-language support) |
| Uniformity | ±0.5℃ temperature/ ± 2% RH |
| Cooling Method | Cascade refrigeration (R404A/R23) |
| Cooling Way | Water-cooling |
| Ramp Rate | 1~3℃/min |
| Controller: Advanced microprocessor-based controller with touch-screen interface for easy programming and monitoring | |
|Application
Battery Testing: Suitable for lithium-ion, nickel-metal hydride, lead-acid, and solid-state batteries;
Electronics and Eletrical Products: Evaluates the reliability of components, devices, and systems under extreme climatic conditions, ensuring they meet standards like IEC 6008, GB/T 2423, and MIL-STD;
Automotive Industry: Tests automotive batteries, ECUs, senosrs and other components to comply with standards such as ISO 16750 and SAE J1455;
Aerospace and Defense: Provide environmental testing for aerospace components and military chamber to ensure performance in harsh operational environments;
Industrial and Consumer Products: Validates the durability of industrial machinery, appliance, packaging materials, and consumer electronics under various climatic conditions.
International Standards: IEC 6008, ISO 16750, GB/T 2423, MIL-STD-810
Industry-Specific Requirements: Customized to meet the testing needs of different industries and regulatory bodies, ensuring test results are recognized globally.
|Energy Efficiency and Maintenance
Energy-Saving Design: High-efficiency components, variable frequency drives for fans, and optimized insulation reduce power consumption, lowering operational costs.
Easy Maintenance: Accessible components such as filters, compressors, and sensors allow for straightforward cleaning and replacement.
Self-Diagnositc Functions: Built-in diagnostics help identify faults quickly, minimizing downtime and maintenance efforts.
Low Noise Operation: Engineered to operate with minimal noise, creating a more comfortable working environment.
|Customization Options
Chamber Size and Configuration: Tailored to accommodate specific test item dimensions and quantities, with options for multiple test zones if required.
Specialized Feature: Integration with vibration tables for combined environmental stress testing, high-voltage safety features for battery testing, dust-proof designs for cleanroom applications, and more.
Control System Customization: Adaptable software to meet unique testing protocols and data management requirements.
|Manufacturer Support and Service
Professional Installation and Training: On-site setup by qualified technicians and comprehensive training for operators to ensure proper use and miantenance.
Warranty and After-Sales Service: Standard 1-2 year warranty with options for extended coverage, plus 24/7 technical support to address inquiries and resolve issues promptly.
Spare parts and Maintenance Plans: Readily available spare parts and customized maintenance packages to maximize chamber uptime and lifespan.
Calibration and Certification: Support for regular calibaration services to ensure onging accuracy and compliance with indusrty standards.
For detailed specifications or case studies, refer to manufacturer documentation or contact sales teams.
