Product Introduction

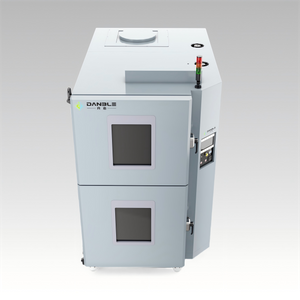

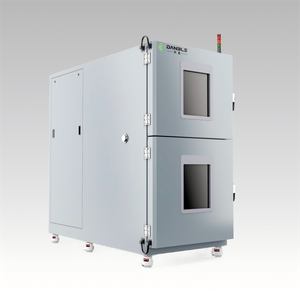

The Programmable Humidity and Temperature Cycling Test Chamber is a state-of-the-art environmental simulation device designed to evaluate the durability and performance of materials and products under controlled thermal and humidity conditions. Engineered for industries such as electronics, automotive, aerospace, and medical devices.
|Key Features
1. Dual-Stage Refrigeration System: Utilizes high-efficiency scroll compressors (e.g., French Tecumseh or Japanese Taikang) for rapid cooling and stable temperature maintenance.
2. Advanced Control System: 7-inch LCD touch panel with programmable multi-stage cycles, real-time data monitoring, and alarm functions for over-temperature/over-humidity protection.
3. Uniform Airflow Design: Horizontal circulation and adjustable airflow regulators ensure ±2°C temperature uniformity and ±3% RH stability.
4. Safety Protocols: Overload protection, dry heat safeguards, and CE/ISO-certified construction
|Technical Specification
| Internal Volum | 135L |
| Internal Dimension | 500×450×600（mm） |
| External Dimension | 780×1500×1720（mm） |
| Low Temperature Range | A: 0℃ B: -20 ℃ C: -30℃ D: -40℃ E: -55℃ F:-70℃ |
| Temperature Fluctuation | ≤±0.5℃ |
| Temperature Uniformity | ≤2℃ |
| Humidity Fluctuation | ≤±2% RH |
| Ramp Rate | 1~3℃/min ( unload, avg) |
|Technical Advantages:
Robust Build: Stainless steel (SUS304) interior for corrosion resistance; reinforced polyurethane insulation minimizes energy loss.
Intelligent Control:
PLC with 120-program memory and 999-cycle repetition.
Auto-balancing humidity system with steam injection and desiccant drying.
Safety Features:
Triple-layer door seals with silicone gaskets to prevent condensation.
Overload protection for compressors and real-time fault diagnostics.
Customization Options:
Optional test ports (50–100mm diameter) for electrical connectivity.
Extended warranty (up to 3 years) and on-site installation support.
|Application
Electronics: PCB thermal stress testing, component soldering reliability.
Automotive: Battery thermal management, interior material aging.
Pharmaceuticals: Packaging integrity under humidity cycling.
1. Q: What is the primary function of this Chamber?
A: It simulates extreme environmental conditions (temperature, humidity) to validate samples performance.
2. Q: What temperature and humidty ranges does it support?
A: Temperature: -70℃ to +180℃
Humidity: 10%~98%RH with ±3% accuracy.
Anti-frost sealing prevents condensation during subzero tests
3. Q: Is it availabel for customing size, technical specification?
A: Yes
4. Q: What maintenance is required?
A: Weekly: Clean interior with dry cloth;
Quarterly: Calibrate sensors using traceable standards;
Annually: Lubricate moving parts(shafts, rails)
5. Q: Does it support automated testing?
A: Yes, with programmable multi-stage cycles. Integrates with LabVIEW or MATLAB for data analysis.
|Additional Notes
1.1Customization Options: Modular design allows adding vibration tables, salt spray, or EMI chambers.
2. Supplier Support: Technical teams assist with setup, calibration, and troubleshooting.
For detailed specifications or case studies, refer to manufacturer documentation or contact sales teams.
