DBST-48
Danble
| Availability: | |
|---|---|
| Quantity: | |

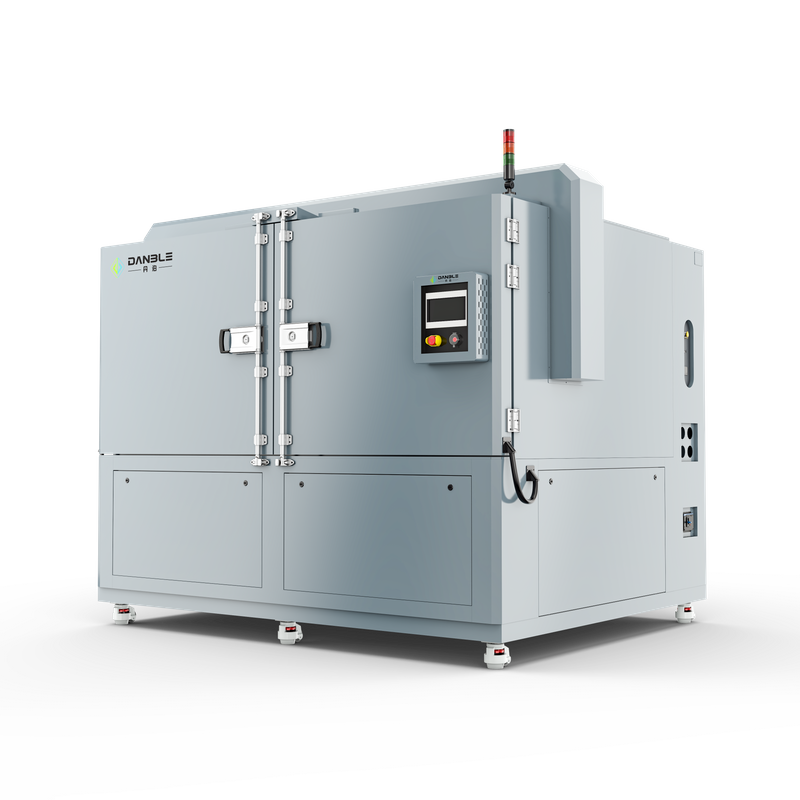

2-Zone Thermal Shock Chamber: Advanced Reliability Testing Solution.
Dual-Zone Design: Independent high-temperature, low-temperature chambers enable static sample testing, utilizes a bucket rapidly transferming specimens to the test area.
Ultra-Fast Temperature Switching: Achieve zone switching in ≤10s and temperature recovery in ≤5mins, meeting MIL-STD-810D and JIS standards.
Energy Efficiency: Advanced refrigeration system reduces energy consumption by 25% compared to conventional models.
Customizable Configurations: Supports volume options and optional horizontal layouts for larger payloads.
Low-Temperature Frost Prevention: Optimized airflow avoids condensation at -65℃.
Safety & Monitoring: OReal-time data logging, multi-layer protection, pressure monitoring, and remote alerts ensure safe operation.
|Technical Specification
| Internal Volume | 48L |
| Internal Dimensions | 400×400×300（mm） |
| Low Temperature Shock Range | -65℃ to 0 ℃ |
| High Temperature Shock Range | 60℃ to 150℃ |
| Pre-cooling Zone Cooling Range | -80℃ to 0℃ |
| Pre-heating Zone Heating Range | 60℃ to 180℃ |
| Pre-Cooling Zone Cooling Rate | ≥1℃/min |
| Pre-Cooling Zone Cooling Rate | ≥3℃/min |
| Dwell Time | 16~60mins |
| Temperature Recovery Time | 1~5mins |
| Zone Swiching Time | ≤10s |
| Standard Reference: JESD22-A106B; GJB-150A; MIL-STD-810G; MIL-STD-202G,; GB/T2423.1; GB/T2423.2; GB/T2423.3; GB/T 5170.2; IEC 60068 | |
|Application
Battery Testing: Suitable for lithium-ion, nickel-metal hydride, lead-acid, and solid-state batteries;
Electronics and Eletrical Products: Validate PCBs, semiconductors, and displays under thermal cycling;
Automotive: Tests battery components, ECUs, senosrs and interior materials for extreme climates;
Aerospace and Defense: Certify chamber for high-altitude temperature stress;
Industrial and Consumer Products: Assess thermal stress resistance of mechanical parts and consumer electronics under various climatic conditions.
Medical Devices: Ensure reliability of diagnositc tools in fluctuating environments.
|Energy Efficiency and Maintenance
Energy-Saving Design: High-efficiency components, variable frequency drives for fans, and optimized insulation reduce power consumption, lowering operational costs.
Easy Maintenance: Accessible components such as filters, compressors, and sensors allow for straightforward cleaning and replacement.
Self-Diagnositc Functions: Built-in diagnostics help identify faults quickly, minimizing downtime and maintenance efforts.
Low Noise Operation: Engineered to operate with minimal noise, creating a more comfortable working environment.
|Customization Options
Chamber Size and Configuration: Tailored to accommodate specific test item dimensions and quantities.
Customized temperature range and rate: Achieve precise thermal testing tailored to your specifications. Our system supports custom temperature ranges from -70°C to +180°C and rapid transition rates up to 15°C per minute, ensuring flexibility for diverse testing requirements..
Control System Customization: Adaptable software to meet unique testing protocols and data management requirements.
|Manufacturer Support and Service
Professional Installation and Training: On-site setup by qualified technicians and comprehensive training for operators to ensure proper use and miantenance.
Warranty and After-Sales Service: Standard 1-2 year warranty with options for extended coverage, plus 24/7 technical support to address inquiries and resolve issues promptly.
Spare parts and Maintenance Plans: Readily available spare parts and customized maintenance packages to maximize chamber uptime and lifespan.
Calibration and Certification: Support for regular calibaration services to ensure onging accuracy and compliance with indusrty standards.
For detailed specifications or case studies, refer to manufacturer documentation or contact sales teams.
