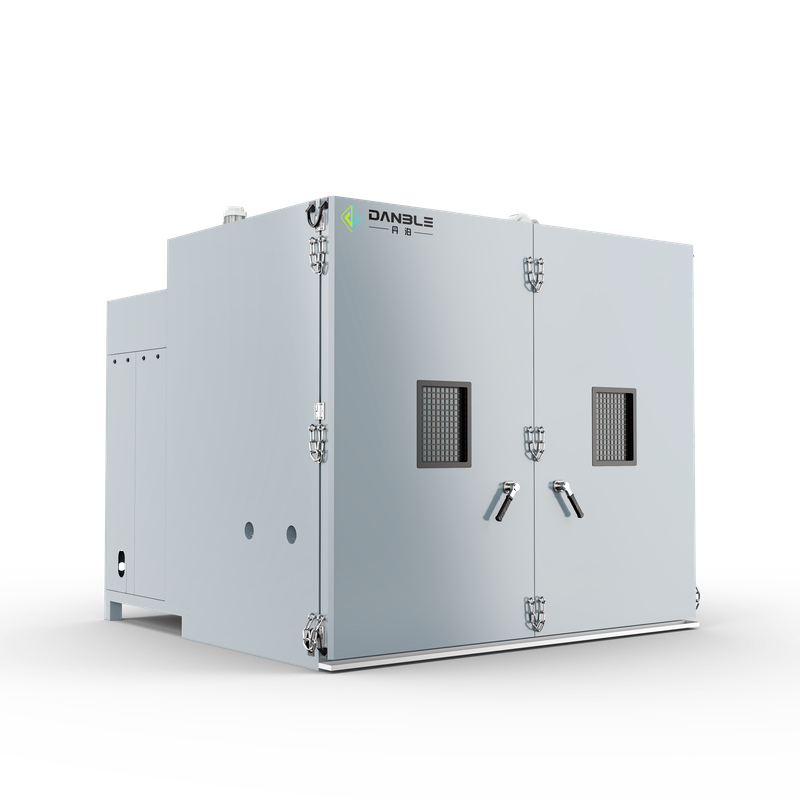

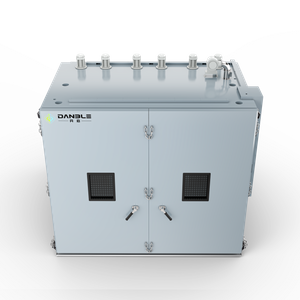

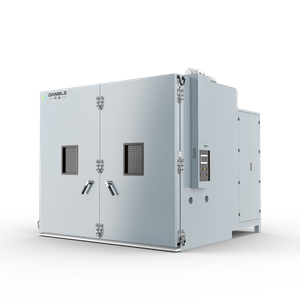

Walk-in Climatic Chamber

Product Introduction

The Walk-In Climate Test Chamber |Accurate & Efficient Environmental Testing Solutions

|Key Features

1. Multi-environment Simulation: Thermal cycling, and humidity stress.

2. High Control Precision: ±0.5℃ temperature control and ±2% humidity accuracy.

3. Dual-Parameter Control: Independent temperature and humidity regulation with rapid response.

4. User-Friendly Interface: 10 Inch PLC touchscreen with PID control, real-time graphs, and multi-language support.

5. Low-Temperature Frost Prevention: Optimized airflow avoids condensation at -65℃.

6. Date Logging: RS-232/485 ports for PC integration, data export, and remote monitoring.


7. Scalable Design: Customizable interior dimensions ( e.g., 2000×2000×2000mm) to accommodate large samples.

8. Energy Efficiency & Sustainability: No frost accumulation during prolonged low-temperature operation and optimized airflow design reduces energy waste.


9. Safety Systems: Overload, overcurrent, overpressuer and water leak detection.E-stop shutdown and backup power options. Non-combustible materials and sealed electrical components.




|Technical Specification

|Application

• Automotive: Battery thermal management, ECU validation;

• Electronics and Eletrical Products: Evaluates the reliability of components, devices, and systems under extreme climatic conditions, ensuring they meet standards like IEC 6008, GB/T 2423, and MIL-STD;

• Automotive Industry: Tests automotive batteries, ECUs, senosrs  and other components to comply with standards such as ISO 16750 and SAE J1455;

• Aerospace and Defense: Provide environmental testing for aerospace components and military chamber to ensure performance in harsh operational environments;

• Industrial and Consumer Products: Validates the durability of industrial machinery, appliance, packaging materials, and consumer electronics under various climatic conditions.

|Compliance with Standards

1. International Standards: IEC 6008, ISO 16750, GB/T 2423, MIL-STD-810

2. Industry-Specific Requirements: Customized to meet the testing needs of different industries and regulatory bodies, ensuring test results are recognized globally.

|Operational Advantages

1. Low maintenance: Modular refrigeration units for easy repair/ replacement.

2. Easy Maintenance: Accessible components such as filters, compressors, and sensors allow for straightforward cleaning and replacement.

3. Self-Diagnositc Functions: Built-in diagnostics help identify faults quickly, minimizing downtime and maintenance efforts.

4. Low Noise Operation: Engineered to operate with minimal noise, creating a more comfortable working environment.

|Customization Options

1. Tailored Solutions: Adjustable test chambers for aerospace, automotive, and military applications.

2. Optional Features: Test holes (φ50-150mm), observation windows, and vibration tables.


3. Control System Customization: Adaptable software to meet unique testing protocols and data management requirements.

|Manufacturer Support and Service

1. Professional Installation and Training: On-site setup by qualified technicians and comprehensive training for operators to ensure proper use and miantenance.

2. Warranty and After-Sales Service: Standard 1-2 year warranty with options for extended coverage, plus 24/7 technical support to address inquiries and resolve issues promptly.

3. Spare parts and Maintenance Plans: Readily available spare parts and customized maintenance packages to maximize chamber uptime and lifespan.

4. Calibration and Certification: Support for regular calibaration services to ensure onging accuracy and compliance with indusrty standards.


For detailed specifications or case studies, refer to manufacturer documentation or contact sales teams.
