DBWH-10
Danble
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

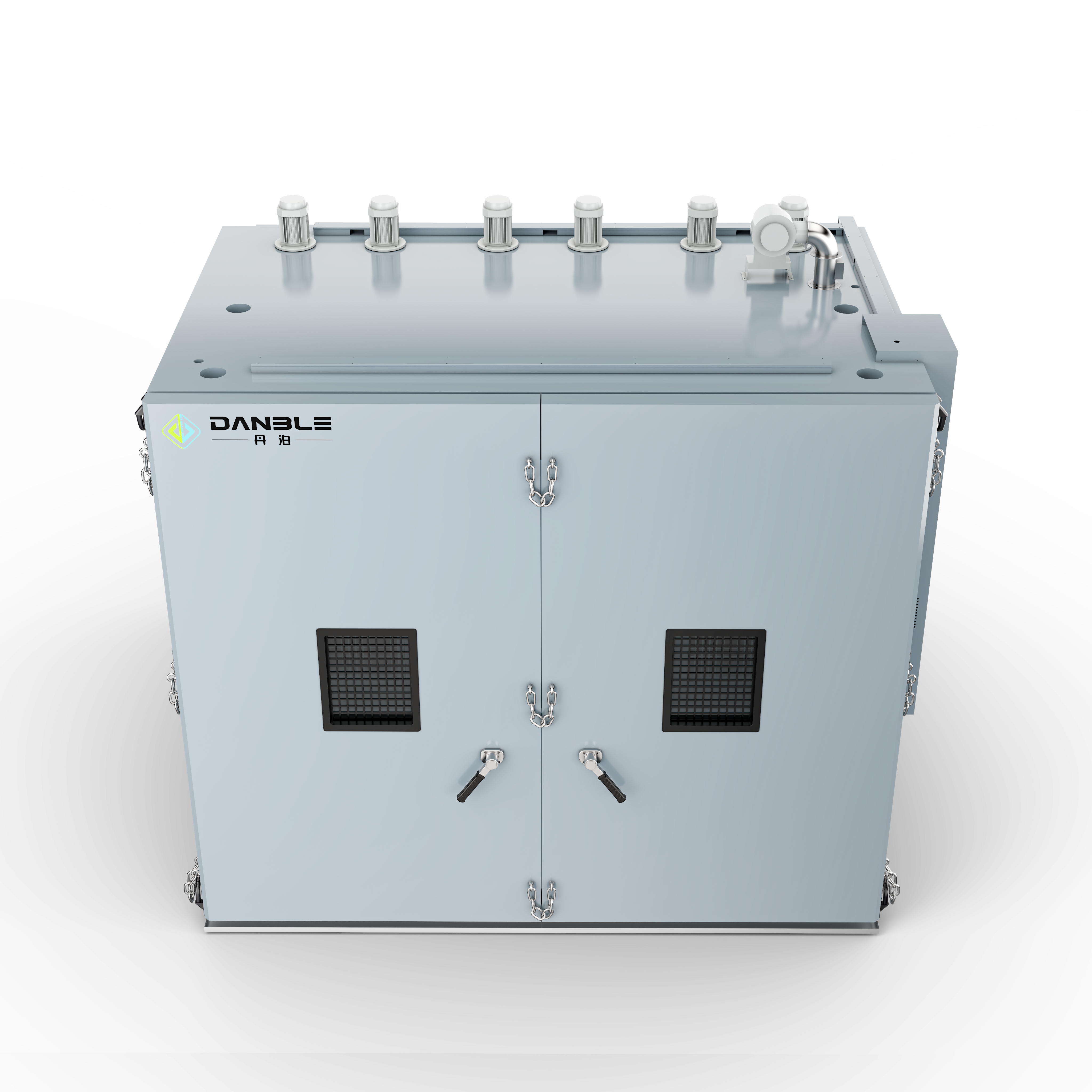

The Walk-In Environmental Test Chamber |Solutions for Electronics, Automotive & Aerospace.
Mrgonomic Access: Wide entry doors( up to 1.8m height) for large chamber.
Energy Efficiency: ±Optimized insulation and compressor technology.
User-Friendly Interface: 10 Inch Touchscreen for parameter setup and cycle programming.
Low-Temperature Frost Prevention: Optimized airflow avoids condensation at -65℃.
Date Logging: Intergrated sensors for real-time monitoring and USB/RS-485 export.
Scalable Design: Customizable interior dimensions ( e.g., 2000×2000×2000mm) to accommodate large samples.
Safety Systems: Overload protection, leak detection, and emergency shutdown protocols.
|Technical Specification
| Internal Volume | 10m³ |
| Internal Dimensions | 2500×2000×2000（mm） |
| Temperature Range | -70℃ to 150 ℃ (customizable) |
| Humidity Range | 10%~98%RH |
| Control System | PLC+ Touchscreen(Multi-language support) |
| Uniformity | ±0.5℃ temperature/ ± 2% RH |
| Cooling Method | Cascade refrigeration (R404A/R23) |
| Cooling Way | Water-cooling |
| Ramp Rate | 1~3℃/min |
| Controller: Advanced microprocessor-based controller with touch-screen interface for easy programming and monitoring | |
|Application
Automotive:Validate electronic control units (ECUs), battery systems, and interior materials.
Electronics: Assess PCBs, semiconductors, and consumer devices.
Automotive Industry: Tests automotive batteries, ECUs, senosrs and other components to comply with standards such as ISO 16750 and SAE J1455;
Aerospace: PrTest avionics and structual components under thermal stress.
Industrial and Consumer Products: Validates the durability of industrial machinery, appliance, packaging materials, and consumer electronics under various climatic conditions.
International Standards: IEC 6008, ISO 16750, GB/T 2423, MIL-STD-810
Industry-Specific Requirements: Customized to meet the testing needs of different industries and regulatory bodies, ensuring test results are recognized globally.
|Customization Options
Chamber Size and Configuration: Tailored to accommodate specific test item dimensions and quantities, with options for multiple test zones if required.
Specialized Feature: Integration with vibration tables for combined environmental stress testing, high-voltage safety features for battery testing, dust-proof designs for cleanroom applications, and more.
Control System Customization: Adaptable software to meet unique testing protocols and data management requirements.
|Manufacturer Support and Service
Professional Installation and Training: On-site setup by qualified technicians and comprehensive training for operators to ensure proper use and miantenance.
Warranty and After-Sales Service: Standard 1-2 year warranty with options for extended coverage, plus 24/7 technical support to address inquiries and resolve issues promptly.
Spare parts and Maintenance Plans: Readily available spare parts and customized maintenance packages to maximize chamber uptime and lifespan.
Calibration and Certification: Support for regular calibaration services to ensure onging accuracy and compliance with indusrty standards.
For inquiries or customization, contact our technical or sales team to discuss your specific requirements.
