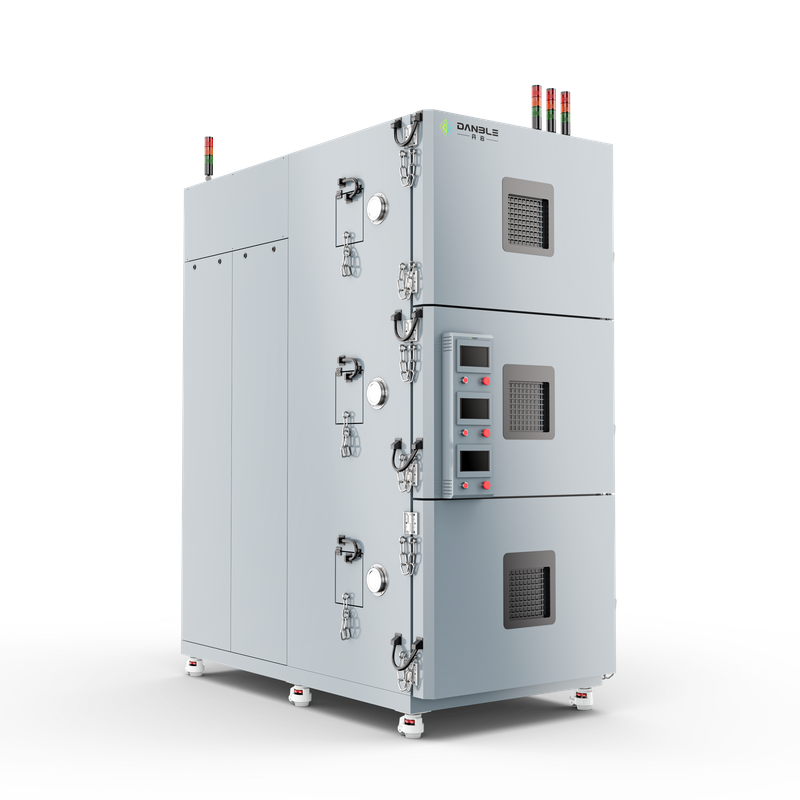

Triple-Layer High & Low Temperature Test Chamber​

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Triple-Zone Thermal Simulation Chamber: Advanced Multi-Scenario Testing​
Our triple-layer chamber simulates harsh thermal environments (-70°C to +180°C) with independent control for each zone. Designed for accelerated aging tests, thermal shock validation, and compliance with IEC 60068-2-1/GB/T 2423.

  • DBT3-B390F3

  • Danble

Availability:
Quantity:
Inquire Add to Basket

Production Description


Technical Specifications:

  • Temperature Range: -60°C to +150°C (adjustable in 1°C increments)

  • Zones: 3 independently controlled chambers (A/B/C)

  • Chamber Material: SUS304 stainless steel (internal), powder-coated steel (external)

  • Control System: PLC + 10-inch touchscreen with data logging & multi-language support

  • Cooling System: Cascade refrigeration (R404A/CO₂ optional)


Key Features:

  • Multi-Zone Synchronization: Simultaneous testing across three temperature zones

  • Rapid Transition: Achieves -70°C in ≤45 mins & +180°C in ≤25 mins

  • Safety Protocols: Over-temperature shutdown, leak detection, and emergency stop


Applications:

  • Battery Testing: Validate thermal management of EV battery packs (e.g., thermal runaway prevention)

  • Automotive: Test HVAC systems, electrical components under extreme conditions

  • Electronics: Accelerated life testing for PCBs, semiconductors, and connectors

  • Aerospace: Assess material durability in rapid temperature cycling


Why Choose Us?

  • Custom Configurations: Adjustable chamber sizes (600L–2000L) and zone partitions

  • Global Certifications: CE, UL, and compliance with Ford, BMW, and NASA standards

  • After-Sales Support: Onsite installation, annual calibration, and 24/7 technical assistance


Industries Served

  • Automotive Manufacturing

  • Aerospace & Defense

  • Electronics & Semiconductors

  • Battery & Energy Storage

  • Pharmaceuticals & Biotech

Internal Volume
390L
Internal Dimension
1000×600×650 （W*D*H/mm）
External Dimension
1200×1958×2800(W*D*H/mm)
Temperature Range
-70℃ to +150℃
Temperature Uniformity
≤2℃
Temperature Fluctuation
≤±0.5℃
Temperature Deviation
≤±2℃
Humidity Range
10%~98%RH
Humidity Deviation
±3%RH（＞75%RH）；±5%RH（≤75%）
Heating Rate
3℃/min
Cooling Rate
1℃/min
Interior Material
SUS304 Stainless Steel
Exterior Material
SPCC+ Powder Coating
Cooling Method
Water-cooling
FAQs
  • What temperature ranges do your test chambers support?
    加 Created with Sketch.
    形状 Created with Sketch.
    Our standard chambers cover -40℃~+150℃. Custom ranges (e.g., -70℃ to +200℃） are available for specialized applications like aerospace or EV battery testing.
  • Can you customize chambers for specific industries ( e.g., automotive, aerospace)?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes, we design multi-zone chambers ( e.g., triple-zone thermal shock) and integrate vibration tables for comprehensive testing. Recent projects include EV motor durability testing for OEMs.
  • Have you worked with automotive clients?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes. We supplied thermal shock chambers to a leading EV battery manufacturer for -40℃ to + 85℃ cycling tests. Results improved battery pack lifespan by 18%.
  • Do you offer on-site installation and training?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes. Our engineers provide full deployment support, including:
    1. System setup and calibration
    2. Operator training ( 2-3 day sessions)
    3. Post-installation validation reports
  • What warranty coverage is included?
    加 Created with Sketch.
    形状 Created with Sketch.
    Standard warranty: 12months ( parts+ labor)
    Extended options: Up to 36 months ( additionla 15% fee)
    Critical components ( compressors, controllers) have extended MTBF ratings.
  • How do you handle chamber malfunctions?
    加 Created with Sketch.
    形状 Created with Sketch.
    24/7 remote support: Diagnostic access via loT-enabled controllers.
    On-site repair: 4-hour response + 24 or 48 hours fix commitment in nearby cities.
  • What payment terms do you accept?
    加 Created with Sketch.
    形状 Created with Sketch.
    T/T: 50% deposit, 50% before shipment.
    L/C: Available for orders≥30K USD.
    Flexible terms for long-term partners.
  • What is your leat time for standard vs. custom orders?

    加 Created with Sketch.
    形状 Created with Sketch.
    Standard units: 30-45 days after order confirmation.
    Custom bulids: 60-90 days ( includes 3D design review and prototyping).
