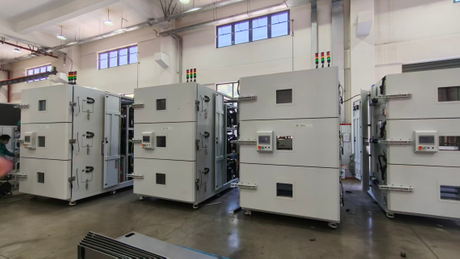

Danble Instrument specializes in closing this gap. We don't just sell equipment; we deliver Application-Specific Environmental Simulation Solutions. A prime example is our recent delivery of a bespoke Three-Layer Independent Battery Test Chamber. This project highlights how tailoring a system to specific operational demands—specifically three isolated 540L cavities—transforms a physical constraint into a strategic asset for battery innovation.
In the high-stakes landscape of New Energy and EV development, "off-the-shelf" environmental test equipment often falls short. Standard single-chamber units create bottlenecks, forcing R&D teams into sequential testing queues. Worse still, conventional stacked units often rely on shared refrigeration systems, where a single point of failure can halt all ongoing tests.
Generic multi-zone chambers often suffer from "thermal cross-talk." Our customized approach treats each layer as a standalone testing ecosystem. By vertically integrating three independent 540L zones, we tripled the effective throughput without expanding the facility's footprint.
True Zonal Isolation: Each cavity operates with a dedicated refrigeration and heating circuit. This allows a client to run a -40°C pulse test in one zone while simultaneously performing an 85°C thermal aging test in another, without any risk of thermal bleed or system conflict.
Optimized for High-Density Loading: The 540L volume was specifically chosen to accommodate the client's standard 120kg battery batch load. This ensures that the airflow dynamics are optimized for the actual mass being tested, rather than an abstract empty-chamber volume.
Uninterrupted Workflow: Unlike shared systems, our independent architecture ensures that maintenance or a performance anomaly in one layer does not compromise the long-term cycling tests running in the other two cavities.
Battery testing is defined by thermal instability. Internal heat generation during charge-discharge cycles can distort results in poorly designed chambers. Our customized solution integrates dynamic control logic to maintain laboratory-grade precision under duress.
Validated Uniformity: We guarantee temperature uniformity of ≤1.5°C (-40°C~80°C) and ≤2.0°C (80°C~120°C) based on the client's specific 120kg load configuration, verified through CFD (Computational Fluid Dynamics) modeling.
Dynamic Stability: Temperature fluctuation is maintained within ±0.5°C. This is achieved through a non-linear PID algorithm that anticipates thermal load spikes, ensuring data integrity during high-current cycling.
Customizable Ramp Rates: While the baseline performance features heating rates ≥2°C/min and cooling rates ≥1°C/min under load, the system architecture allows for customization of ramp rates to match specific cell chemistries or unique test protocols without sacrificing uniformity.
Standard paint finishes and generic seals fail when exposed to electrolyte leakage and off-gassing. Our solution incorporates defensive engineering tailored for battery R&D:
Chemical Inertness: The entire interior, including ductwork and seams, is treated with Teflon (PTFE) insulation spraying. This provides a robust barrier against hydrofluoric acid (HF) and other corrosive byproducts of battery failure.
Redundant Cooling Infrastructure: To manage the high heat dissipation of modern batteries, each cavity is equipped with dual independent compressors and a high-stability water-cooled system. This redundancy is critical for multi-month cycling tests where downtime is not an option.
Superior Airflow Design: A top-supply, bottom-return circulation pattern within each 540L zone eliminates stratification, ensuring that the temperature at the top of a tall battery rack matches the bottom.
Customization extends to the human-machine interface. Recognizing the high-frequency usage in R&D labs, we engineered the system for both manual accessibility and automated reliability.

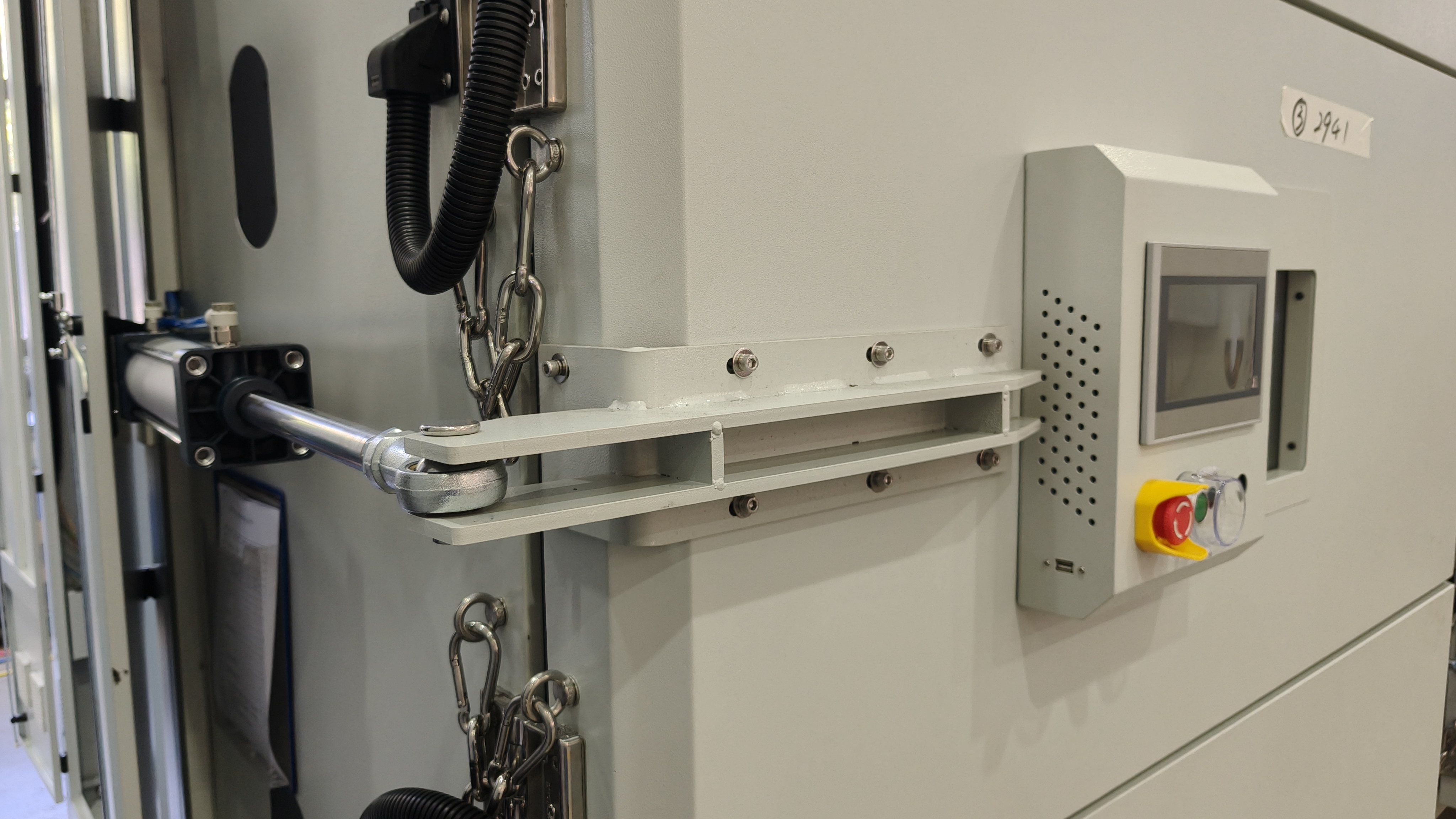

Dual-Mode Access: Each cavity features doors with both manual and automatic operation modes. This allows technicians to quickly load samples during method development while ensuring an airtight seal during automated long-term cycles.
Structural Robustness: Constructed with industrial-grade materials, the chamber is built to withstand the constant thermal expansion and contraction of high-frequency testing, ensuring safety and structural integrity over years of operation.
Parameter | Customized Specification |
|---|---|
Architecture | 3 Fully Independent Cavities |
Single Cavity Volume | 540L (Total: 1620L) |
Temperature Range | -43°C to +120°C |
Temperature Uniformity | ≤1.5°C (-40~80°C); ≤2.0°C (80~120°C) |
Temperature Fluctuation | ±0.5°C |
Heating Rate | ≥2°C/min (Under 120kg Load) |
Cooling Rate | ≥1°C/min (Under 120kg Load) |
Max. Load Capacity | 120kg per cavity |
Internal Protection | Full PTFE (Teflon) Spray Coating |
Cooling System | Independent Water-Cooled (Per Cavity) |
The Danble Custom 3-Layer Battery Test Chamber demonstrates that the most effective R&D tools are those engineered around the specific variables of the test subject. By moving beyond standard specifications and focusing on zonal independence, load-specific uniformity, and chemical resilience, we provide a platform that accelerates the validation of next-generation energy storage technologies.
When your testing requirements outgrow the capabilities of standard equipment, a customized solution ensures that your hardware never limits your scientific discovery.
1. How does this customized chamber improve our testing throughput?
By utilizing three fully independent 540L cavities, you can run three distinct test profiles (e.g., safety certification, aging, QC) simultaneously. This parallel processing maximizes your existing floor space and eliminates the bottlenecks associated with sequential, single-chamber testing.
2. Is the temperature uniformity guaranteed for our specific battery load?
Yes. Unlike standard chambers rated for empty cavities, our uniformity specification (≤1.5°C) is validated against your actual 120kg battery load. We utilize CFD modeling during the design phase to ensure there are no thermal dead zones within your specific racking configuration.
3. Can the ramp rates be customized for our specific loaded conditions?
Absolutely. While the baseline performance is ≥2°C/min heating and ≥1°C/min cooling under a 120kg load, we can adjust the compressor capacity, heater output, and airflow dynamics to meet your unique requirements regarding load weight, cell chemistry, and internal heat generation profiles.
4. How does the PTFE coating protect against electrolyte corrosion?
The entire interior, including ductwork and seams, is treated with a PTFE (Teflon) spray. This creates a chemically inert barrier that resists hydrofluoric acid (HF) and other corrosive byproducts of battery breakdown, significantly extending the service life of the equipment.
5. Can the chamber handle the high internal heat generated during cycling?
Yes. Each cavity is equipped with a dedicated water-cooled system and dynamic PID control capable of managing up to 1kW of internal heat generation. This ensures temperature stability within ±0.5°C, even during high-current charge-discharge cycles.
6. Does the system integrate with our existing lab software?
Yes. The control system supports standard industrial protocols (Modbus TCP/IP, RS485), allowing seamless synchronization with your existing Battery Management System (BMS) and data acquisition (DAQ) platforms.
7. Is the chamber compliant with IEC/UL/UN38.3 standards?
Absolutely. The design parameters meet the requirements of IEC 62660, UL 1642, and UN38.3. The independent layers allow you to configure different cavities for different certification tests simultaneously.
8. What is the operational benefit of the dual-mode doors?
Manual mode facilitates quick loading and visual inspections during setup, while automatic mode ensures a secure, airtight seal during long-term automated cycles, preventing accidental breaches that could compromise test data.
