Production Description

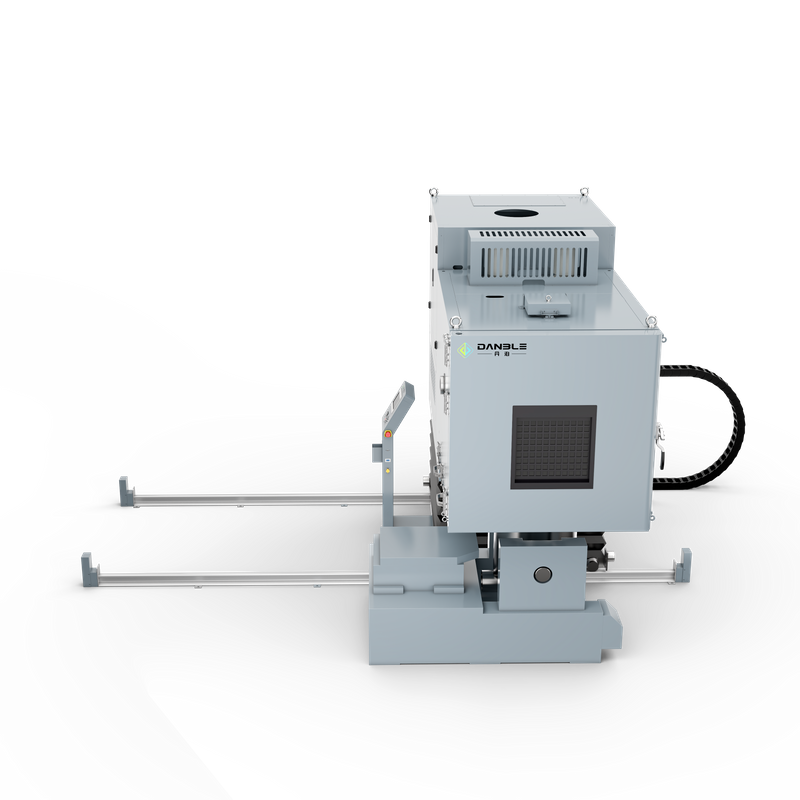

The Triple Comprehensive Test Chamber (also known as the Temperature/Humidity/Vibration Test Chamber) is the definitive solution for Environmental Stress Screening (ESS). Designed to accurately simulate extreme operating environments, this system facilitates rigorous product reliability testing and accelerated life testing. It is essential for industries like Aerospace, Automotive, and Electronics that require simultaneous thermal, humidity, and mechanical stress loading to ensure product durability and performance under complex conditions.
| Parameter Category | Technical Specification | Key SEO Benefit / Description |
| Temperature Range | -70°C to +150°C | Wide-range temperature testing for extreme cold and heat |
| Temperature Stability | ±0.5°℃ | High precision control for accurate thermal cycling |
| Humidity Range | 10%-98%RH | Versatile humidity simulation capability |
| Humidity Accuracy | ±3%RH (at 25°C) | Reliable humidity control for stability testing |
| Vibration Frequency | 5Hz-3000Hz | Broad vibration simulation range (low to high frequency) |
| Vibration Amplitude | 0mm-5mm (Adjustable) | Flexible mechanical stress testing |
| Chamber Material | Internal: 316L stainless steel; External: Powder-coated steel | Durable, corrosion-resistant inner chamber construction |
| Control System | PLC +10.1-inch Touchscreen (Multi-language) | User-friendly, smart, and multilingual interface |
| Certifications | CE, UL, ISO 9001, GJB 150A | Global compliance and quality assurance |
Integrated Stress Simulation: Provides simultaneous temperature, humidity, and vibration loading, offering the most realistic and demanding combined environment testing capabilities.
Rapid Transition: Equipped with a high-efficiency refrigeration/heating system for fast thermal cycling, significantly reducing test time:
Achieves -70°C in ≤45 mins
Achieves +150°C in ≤30 mins
Safety Protocols: Includes over-temperature shutdown, refrigerant leak detection, and an emergency stop system to ensure operational safety and protect valuable test samples.
The Triple Comprehensive Test Chamber is an indispensable tool for product validation and quality control across multiple high-stakes sectors:
Aerospace & Defense: Validate avionics components and systems under extreme thermal cycling and intense vibration stress resistance. This includes Military compliance testing performed per standards like MIL-STD-810G for shock/vibration resistance in defense applications.
Automotive Manufacturing: Test battery thermal management and HVAC system durability, ensuring components can withstand environmental and mechanical stresses.
Electronics & Semiconductors: Perform accelerated life testing (ALT) for critical electronic components, including PCBs, connectors, and semiconductors.
Telecommunications: Verify the robustness of networking equipment and infrastructure components.
Energy & Renewable Systems: Assess the durability and performance of components used in solar, wind, and power generation systems under extreme environmental conditions.
Custom Configurations & Flexibility: Offering adjustable chamber sizes (50L –5000L) and customizable vibration modes to meet your specific test requirements.
Global Compliance Guarantee: Our chambers are designed to meet major international and regional standards, including IEC, MIL-STD, and local compliance for the EU, US, and ASEAN markets.
Comprehensive After-Sales Support: We provide complete service including onsite installation, annual calibration, and dedicated 24/7 technical assistance.
Ready to subject your products to the most demanding Environmental Stress Screening (ESS)? Our Triple Comprehensive Test Chamber offers the precision and performance you need to guarantee long-term reliability and market success.
Contact our experts today for a custom consultation regarding your specific testing needs (chamber size, vibration modes, or compliance standards).
Don't compromise on quality – Partner with us for reliable testing solutions!
