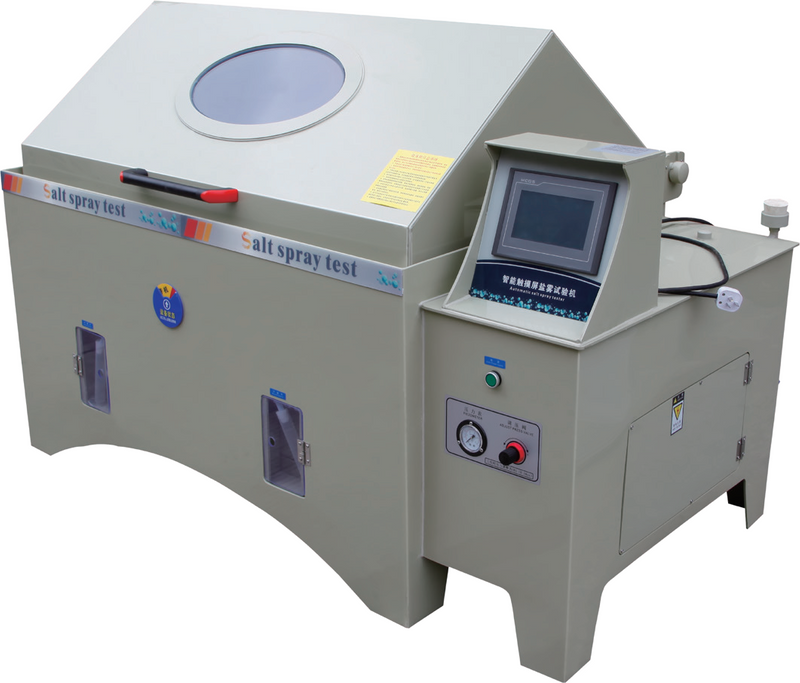

Corrosion Salt Spray Chamber

Name: Corrosion Salt Spray Chamber
Brand: Danble
Rating: 5.0 (5 reviews)

This chamber is a specialized environmental testing equipment designed to simulate the corrosive effects of salt-laden environments (such as coastal or industrial areas). It creates a controlled salt spray (or salt fog) atmosphere to accelerate the corrosion process of test samples, enabling rapid evaluation of the corrosion resistance of materials, coatings, plated parts, and finished products. Widely used in industries like automotive, aerospace, electronics, and hardware, it helps verify product durability and compliance with international standards (e.g., ASTM B117, ISO 9227).

Model:
DB-120
Brand:
Danble

Availability:

Quantity:



Inquire Add to Basket

“High-Precision Salt Spray Test Chamber: Reliability Under Extreme Conditions”

This Chamber replicates harsh salt spray environments to assess corrosion resistance in materials and coastings.

|Key Technical Features:

Durable Construction:

Made of high-temperature resistant PP flame-retardant plates, ensure durability in harsh chemical environments.
Anti-corrosion treatment is applied to strictly control the corrosion of chamber itself caused by salt spray.
Tower-type nozzles ensure uniform salt mist distribution.
High-strength welding rods are used for the whole chamber's welding, so the possibility of water leakage during long-term operation is extremely low.
The whole chamber is supported by high-strength frameworks around, which can support the testing of heavy-weight products

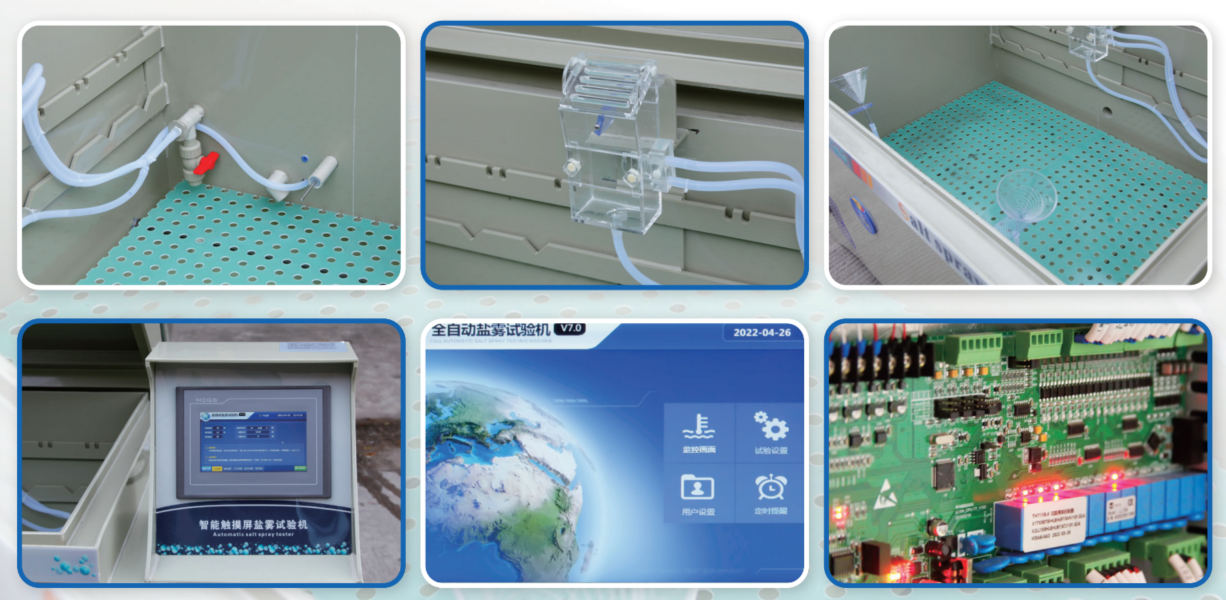

details

Precison Control:

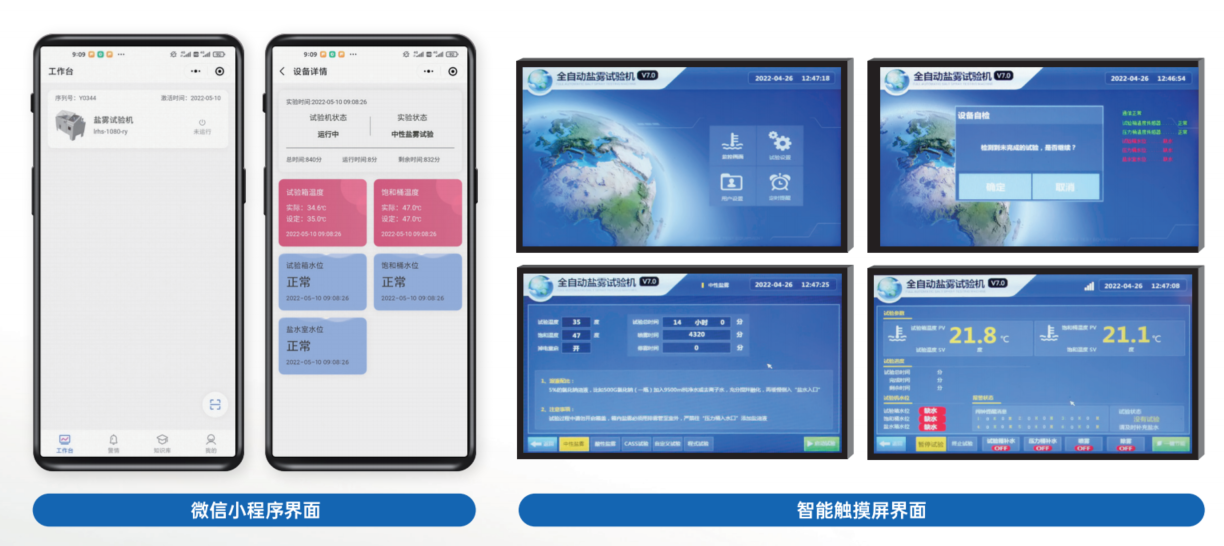

Intelligent touch screen controller with a user-friendly smart interface, enabling simple and clear operation.
Supports monitoring and control via Wechat Mini program, with built-in loT functionality. It requires no WIFI connection, and can remotely push alarm notifications as well as remotely start and pause the chamber. It also supports data recording and export to Excel spreadsheets.
Large-area heating ensures better temperature uniformity inside the chamber.
Professional brine atomizing nozzles for uniform and fine atomization.
Water-electricity separation structure with emphasis on anti-corrosion treatment, ensuring safe and reliable operation of the chamber.
Multiple safety design: it will unconditionally cut off the power supply in case of over-temperature, water shortage, controller damage, etc., to ensure the safe long-term operation of the equipment.

控制界面

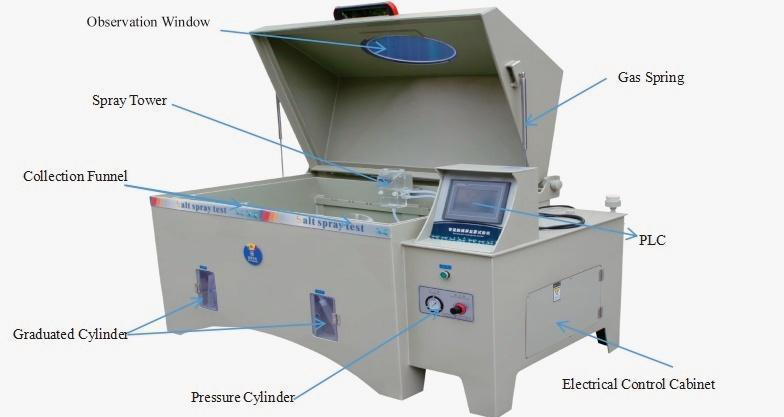

Product Diagram:

Application Scenarios

Automotive:Evaluate anti-corrosion coatings on chassis, engine parts.
Electronics: Test PCBs and connectors for salt mist resistance.
Aerospace: Validate materials under maritime conditions.
Marine: Assess corrosion in shipbuilding components.

Optional Features

Data logging and remote monitoring.
Humidity control integration.
Multi-chamber configurations for complex testing.

Compliance Standards

GBT 10125-2021
GBT 2423.17-2008
ISO 9227-2012
ASTM B117-2011
GB/T 1771-2007
GJB150.11

Why Choose Us?

ISO 9001 Certified Manufacturer with 13+ years of R&D experience
Customizable Configurations: Support non-standard sizes and temperautre ranges per project needs.
Global Compliance: Meets IEC, GB, GJB, and UL standards
Global Recognition: Trusted by Fortune 500 companies and R&D labs worldwide.

微信截图_20250606100935

FAQs

What is the main purpose of a salt spray test chamber?

Its primary function is to simulate a salt-laden corrosive environment. It is used to test the corrosion resistance of materials, coatings, and finished products, helping evaluate their durability in harsh environments like coastal areas or industrial zones.
How often should the salt spray test chamber be calibrated?

It is recommended to calibrate key components regularly. Temperature and humidity sensors should be calibrated every 6 months, while the salt solution concentration and spray pressure require checking and calibration every 3 months to ensure test accuracy.
What type of salt solution is typically used in the chamber?

A sodium chloride (NaCl) aqueous solution is the standard choice. For neutral salt spray tests, the concentration is usually 5% (by weight), and the pH value is controlled between 6.5 and 7.2 at 25°C.
Do you offer on-site installation and training?

Yes. Our engineers provide full deployment support, including:
1.System setup and calibration
2.Operator training (2-3 day sessions)
3.Post-installation validation reports
What warranty coverage is included?

Standard warranty: 12 months (parts + labor).
Extended options: Up to 36 months (additional 15% fee).
Critical components (compressors, controllers) have extended MTBF ratings.
How do you handle equipment malfunctions?

24/7 remote support: Diagnostic access via IoT-enabled controllers.
On-site repair: 4-hour response + 24 or 48-hours fix commitment in nearby cities
What payment terms do you accept?

T/T: 50% deposit, 50% before shipment.
L/C: Available for orders ≥$30k.
Flexible terms for long-term partners.
What is your lead time for standard vs. custom orders?

Standard units: 30–45 days after order confirmation.
Custom builds: 60–90 days (includes 3D design review and prototyping).
