1. What Is High and Low Temperature Cycle Testing?

High and low temperature cycle testing, often referred to as thermal cycle testing, is an environmental reliability test method that exposes products or components to repeated, controlled shifts between high and low temperature extremes.

Rather than maintaining a fixed temperature, this test simulates real‑world environmental changes—such as daily temperature swings, seasonal weather differences, or extreme operating conditions—to evaluate how materials and finished products perform under repeated thermal stress.

By cycling between hot and cold environments, manufacturers can uncover potential weaknesses, including material fatigue, loose connections, performance drift, and structural defects that may not appear during steady‑state testing.

2. How Temperature Cycling Works (Core Mechanism)

The logic behind thermal cycle testing lies in the physical response of materials to temperature changes.

Different materials expand and contract at different rates when heated or cooled. When combined in one product—such as metal, plastic, circuit boards, and adhesives—these mismatched expansion rates create internal stress.

During repeated cycles:

Temperature changes cause repeated expansion and shrinkage
Internal stress accumulates at bonding points, solder joints, and material interfaces
Weak points gradually develop into cracks, delamination, or functional failure
Holding time at each temperature extreme ensures the entire sample reaches thermal stability

Key test parameters typically include:

Target high and low temperature points
Heating and cooling ramp rates
Holding duration at each temperature
Total number of test cycles

3. Commonly Used Test Standards

Danble's temperature cycle test chambers support a full range of international and industry specifications, ensuring test results are consistent and widely recognized.

IEC 60068‑2‑14: General environmental testing for temperature change
GB/T 2423.22: National standard for temperature cycle tests in China
MIL‑STD‑810H: Military environmental test requirements for harsh environments
JEDEC JESD22‑A104: Thermal cycling for semiconductors and integrated circuits
ISO 16750‑4 & AEC‑Q200: Automotive electronics reliability assessment
MIL‑STD‑883 Method 1010: Thermal cycling requirements for microelectronic devices

4. Typical Applications Across Industries

Temperature cycle testing is widely used in industries where long‑term stability and safety are critical.

Automotive & EV Components

Electric vehicle batteries, motor controllers, sensors, onboard circuits, and connectors all undergo thermal cycling to ensure stable performance from cold startup to high‑temperature operating conditions.

Electronics & Semiconductors

Chips, printed circuit boards, connectors, and consumer electronic devices use this test to detect solder fatigue, packaging damage, and electrical performance changes.

Aerospace & Aviation Equipment

Avionic instruments, satellite components, and communication modules must withstand extreme temperature fluctuations in high‑altitude and outer‑space environments.

New Materials & Industrial Products

Metal alloys, plastics, composites, adhesives, and sealing materials are tested to evaluate thermal stability, aging resistance, and structural durability.

Outdoor & Communications Equipment

Solar inverters, base stations, monitoring devices, and outdoor sensors rely on thermal cycle testing to maintain stable function in changing climates.

5. Danble Temperature Cycle Test Chambers

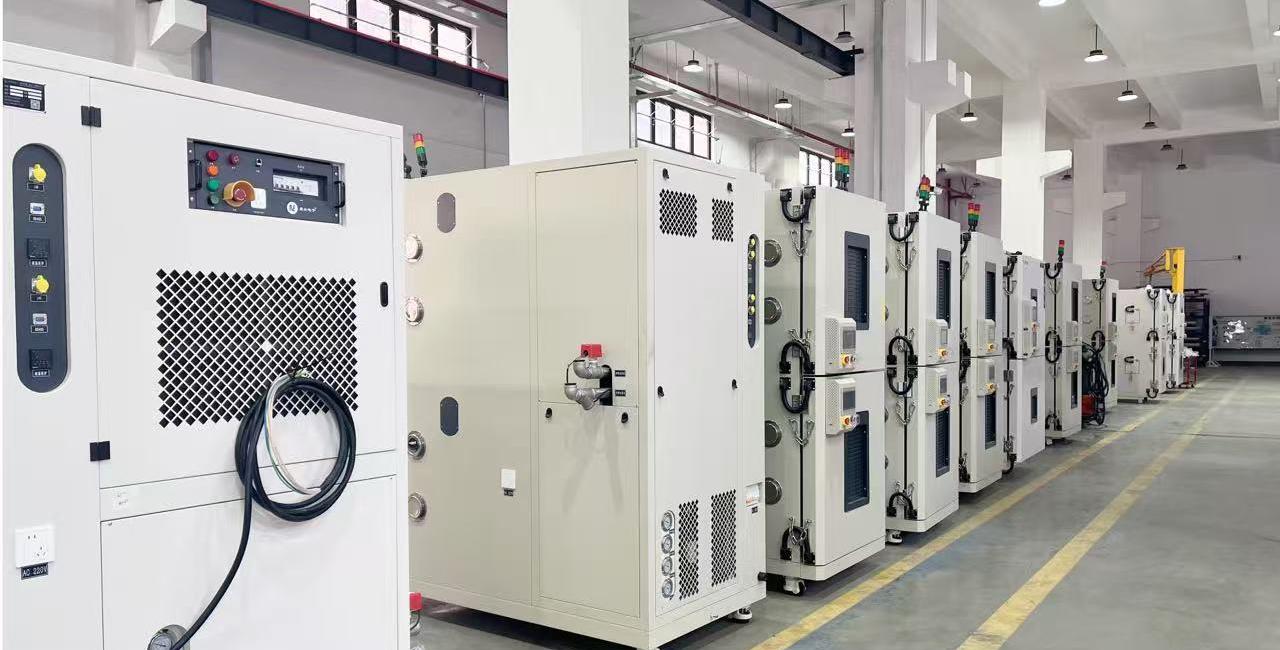

Danble Instrument provides professional, high‑performance temperature cycle chambers designed for accurate, repeatable reliability testing.

Key Features

Stable and precise temperature control with high uniformity
Adjustable heating and cooling rates to meet different test profiles
Programmable logic controller supports multi‑step cycle settings
Stainless steel interior for corrosion resistance and easy cleaning
Complete safety protection including over‑temperature and over-current protection
Available in benchtop, floor‑standing, and large walk‑in configurations

Why Choose Danble?

Customizable test space and temperature range for different samples
Compliance with mainstream international test standards
Energy‑efficient refrigeration system with stable performance
Intuitive touchscreen operation and data recording
Professional after‑sales support and calibration service

Conclusion

High and low temperature cycle testing is an essential step in verifying product reliability and safety. It helps manufacturers identify risks early, improve product design, reduce failure rates, and enhance market competitiveness.

Danble Instrument focuses on environmental simulation test equipment, providing reliable temperature cycle test solutions for enterprises around the world.
