In environmental testing, R&D laboratories select chamber sizes strictly based on the physical dimensions of the Device Under Test (DUT). For compact electronics, sensors, and sub-assemblies, smaller footprints—such as 80L, 100L, 150L, 200L, and 300L—have long been the rational choices, offering the precision and footprint efficiency required for bench-top validation.
When the DUT evolves into a large-format component like a full-scale e-drive assembly (EDU), standard chambers become unusable. Physical incompatibility leaves no room for compromise: destructive modifications to fit smaller chambers invalidate structural integrity data and alter thermal mass characteristics, making results irrelevant to real-world performance. For these applications, a customized large-format chamber is not a premium upgrade, but a fundamental requirement for valid R&D.

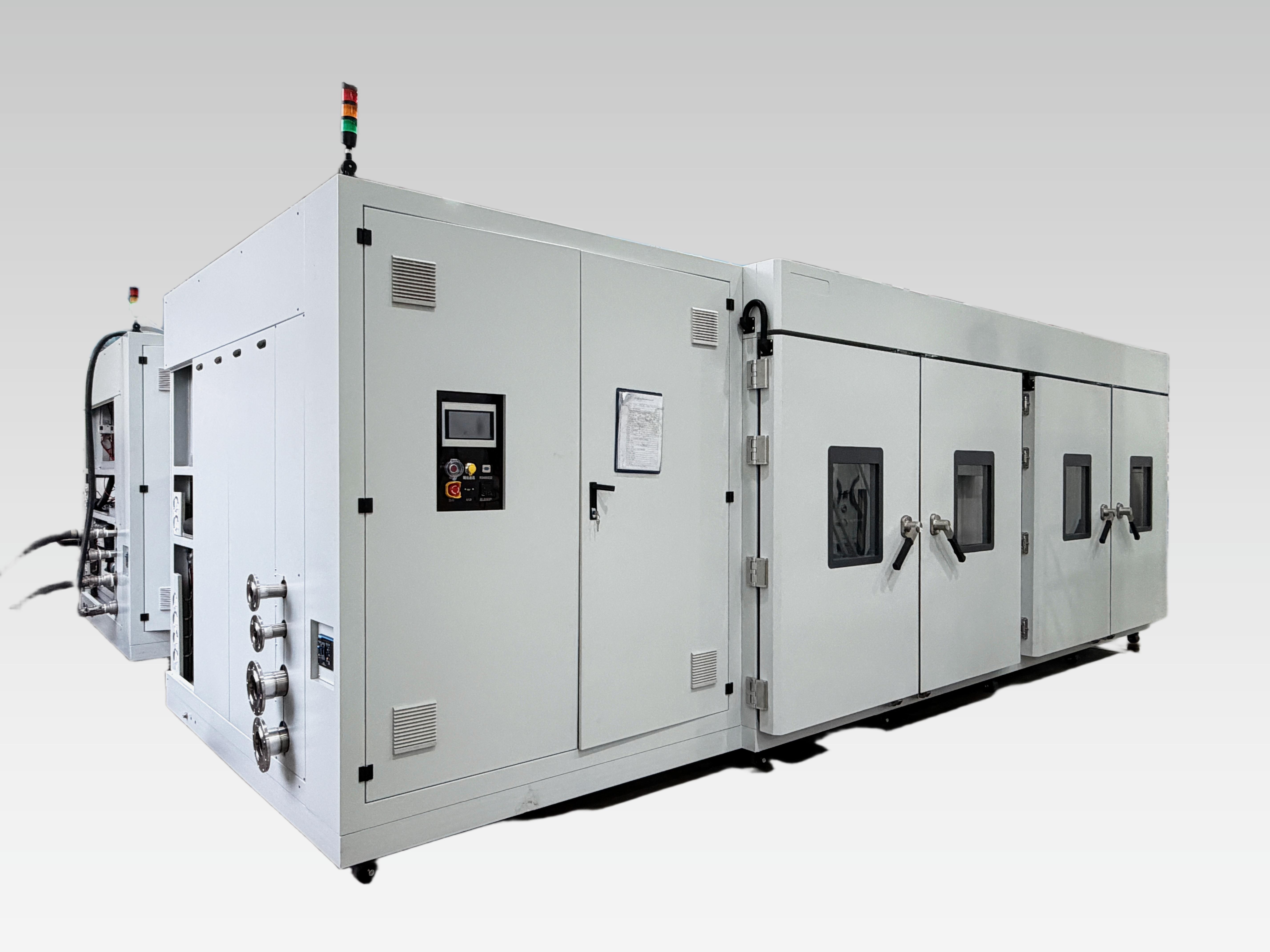

Recently, Danble Instrument delivered a bespoke 1800L left-right two-zone thermal shock chamber to meet this exact need. The core challenge was never the expansion of volume itself, but maintaining the rigorous thermal control expected of laboratory equipment in a space six times larger than common bench-top units. Achieving a ±2.0°C uniformity specification in an 1800L cavity is not a matter of scaling hardware—it is a direct reflection of the engineering team’s expertise in fluid dynamics, thermodynamic modeling, and precision manufacturing.
The jump from a 200L chamber to 1800L is not linear; the physical laws that simplify small-chamber design work against large-format performance:
Uniformity Under Natural Convection: In small chambers, forced airflow dominates thermal behavior, making ±2.0°C easy to achieve. In 1800L, natural convection creates strong thermal stratification—hot air pools at the top, cold air at the bottom—requiring active suppression through precision duct design.
Recovery Time Under Heavy Load: Restoring temperature after transfer is trivial in 100L units. In an 1800L chamber housing a 300kg+ e-drive (a massive heat sink), the system must manage extreme transient heat loads without overshooting or oscillation.
Payload Transfer: Moving a full EDU between zones requires a heavy-duty chain-drive system—a necessary structural enabler for large payloads, not a technical differentiator. The true challenge lies in ensuring this transfer does not disrupt the chamber’s carefully balanced thermal stability.
Danble’s solution focused on design foresightrather than hardware oversizing, addressing large-volume challenges through engineering rigor rather than brute force.
Our engineering team leveraged professional 3D simulation software during the front-end design phaseto model temperature fields and airflow vectors across the 1800L cavity and full-scale e-drive load. By building a high-fidelity virtual twin of the system, we conducted transient analyses of thermal distribution long before physical manufacturing began. This proactive optimization of duct geometries, baffle configurations, and fan performance curves eliminated the need for iterative prototyping. The result: a field-verified ±2.0°C uniformity achieved through computational foresight, not post-production adjustment—proof that large-volume precision is designed in, not tuned in.
Rapid recovery in large chambers is often mistakenly attributed to oversized compressors, which lead to inefficiency and poor stability. Danble’s approach relied instead on precision thermodynamic load modeling. Our team calculated the exact thermal mass of the e-drive and cavity air, then programmed a pre-emptive cooling logic: the system anticipates the thermal load before basket transfer, adjusting refrigerant flow via electronic expansion valves to hit target temperatures the moment the specimen docks. We further implemented a non-linear PID algorithm tailored to large thermal inertia, enabling instant response to the sudden introduction of a 300kg heat sink without temperature overshoot or oscillation. This control-focused strategy delivers <5-minute recovery times without unnecessary hardware bulk.
In left-right two-zone configurations, there is no standalone motorized partition—the basket itself serves as the primary thermal barrier upon docking. We machined the basket periphery with dual silicone gaskets interfacing against CNC-milled stainless steel sealing frames on both chamber ends, preventing inter-zone thermal bleed during dwell cycles. Each zone operates an independent circulation loop (high-static centrifugal fan + dedicated heater bundles/evaporator coils), fully decoupled from the opposing zone. During the ~10-second transfer, a lightweight pneumatic damper briefly shields the opening to suppress direct hot-cold impingement, then retracts as the basket locks into place. This “basket-as-partition” architecture avoids the thermal mass and alignment complexity of standalone gates, adhering to industry-standard best practices for high-reliability large-format shock chambers.
The Requirement: A leading EV manufacturer’s R&D division needed to validate structural fatigue in new lightweight aluminum e-drive housings. Testing cut-down samples in smaller chambers had failed to replicate field failures caused by differential thermal expansion across the full assembly.
The Danble Solution: The 1800L chamber accommodated the complete, unmodified EDU, enabling:
Design-Driven Uniformity: ±2.0°C consistency across the full assembly, validated by the front-end simulation workflow.
Predictable Recovery: <5-minute stabilization after transfer, enabled by dynamic load anticipation rather than reactive cooling.
High-Resolution Measurement: Stable thermal conditions allowed researchers to use laser extensometers to track micron-level housing deformation, generating data impossible to collect in smaller, less controlled systems.
In R&D, test validity depends on the rigor behind the equipment. By designing an 1800L chamber that matches the precision of bench-top units, Danble enables:
Unmodified Assembly Testing: Eliminating variables introduced by cutting or altering prototypes.
Data Reliability: Results grounded in computational modeling and precision manufacturing, not post-hoc tuning.
Accelerated R&D Cycles: Reducing validation time through repeatable, stable performance that meets strict automotive standards (including ISO 16750-4).
The 1800L left-right two-zone thermal shock chamber underscores a core principle: chamber size follows the product, but performance follows engineering acumen. By prioritizing front-end simulation, intelligent control logic, and precision fabrication over hardware oversizing, Danble delivered a solution that meets the exacting needs of modern e-drive R&D. It proves that large volume need not compromise precision—when the design team has the expertise to make the physics work in their favor.
—
Danble Instrument – Precision environmental test solutions engineered for R&D centers and advanced manufacturing facilities worldwide.
