A High and Low Temperature Test Chamber is widely used to perform temperature cycle tests, where samples are repeatedly exposed to controlled heating and cooling transitions to evaluate their reliability under real-world thermal stresses. For industries that demand long-lasting, failure-resistant products, understanding how a temperature cycle test (TCT) works is critical. At Danble Instrument, we design chambers that meet international standards and provide precise cycle control, helping manufacturers qualify their products with confidence.
A temperature cycle test (TCT) is a laboratory procedure that exposes materials, components, or assemblies to repeated temperature changes between specified high and low limits. Unlike a simple static hot or cold soak, the power of TCT lies in the repeated cycling process. Each cycle pushes the specimen through expansion and contraction, which can gradually reveal weaknesses that would only surface after months or years of field use.
The main goal is not to simulate one specific environment but to accelerate aging and detect potential reliability issues in advance. For example, solder joints on printed circuit boards may look stable at room temperature, but under dozens of hot–cold cycles, hidden cracks can grow until they lead to complete electrical failure. By running tests in a High and Low Temperature Test Chamber, manufacturers gain early insights into such vulnerabilities and can redesign or reinforce products before release.
It is common to confuse temperature cycling with thermal shock testing, but the two serve different purposes. In thermal shock, the specimen is transferred very rapidly—sometimes within seconds—from an extremely hot chamber to a freezing chamber (or vice versa). This sudden transfer creates intense stress and is often used for mission-critical or military applications.
Temperature cycling, on the other hand, uses controlled ramp rates. The chamber gradually increases or decreases temperature at a defined speed, then holds the specimen at the high or low set point for a dwell period before reversing direction. This slower transition mimics real-world operating environments more realistically, such as a car engine cooling down overnight or solar panels heating up during the day and cooling at night.
A well-defined protocol is the backbone of a meaningful cycle test. Every cycle profile has several key elements that determine its severity and usefulness.
The first parameter is the temperature range itself. Depending on the product and industry requirements, a test may run from –40 °C to +85 °C, or in harsher cases, from –55 °C to +125 °C. These set points are usually derived from international standards or based on expected field conditions.
Once the chamber reaches the target temperature, it holds the specimen for a dwell time. This ensures that the entire sample—not just the surface—reaches thermal equilibrium. Dwell times can range from 10 minutes to an hour or more, depending on sample mass and industry guidelines.
The speed at which the chamber moves between hot and cold defines how aggressive the test will be. A slow ramp may represent natural outdoor changes, while a fast ramp accelerates fatigue. Danble chambers are engineered with precise ramp control, giving test engineers flexibility to match both gentle and extreme requirements.
Durability is revealed through repetition. Some products may undergo 50 cycles, while critical components in aerospace or defense may require hundreds or even thousands. The number of cycles correlates with the expected service life of the product.

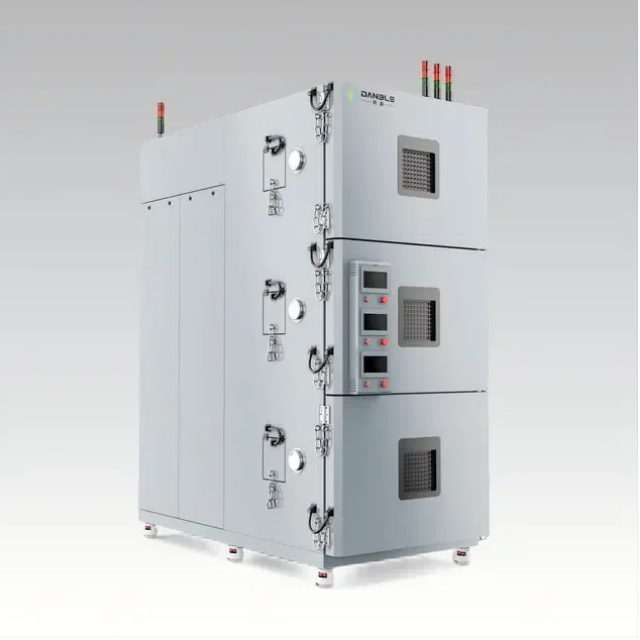

There are two approaches to cycling. In single-chamber systems, the chamber itself ramps between hot and cold set points. In dual- or triple-chamber systems, mechanical transfer moves the specimen between chambers held at fixed temperatures. The first approach is simpler and cost-efficient, while the latter achieves faster cycle times and more extreme profiles. Danble offers both options, allowing customers to choose based on test throughput and budget.
To ensure that test results are credible and comparable, industry standards define how temperature cycling should be conducted.
JEDEC JESD22-A104: Widely used in semiconductor reliability testing, this method defines cycles for integrated circuits, PCBs, and electronic assemblies.
IEC 60068-2-14: A general standard covering change of temperature tests for electrical and electronic products, providing guidance across consumer, industrial, and automotive sectors.
MIL-STD-810: A U.S. military standard covering environmental engineering considerations, including procedures for both cycling and thermal shock.
Danble chambers are designed to support these international standards, making them suitable for both commercial and defense applications.
Developing a successful TCT program requires more than just setting temperatures. It is a step-by-step process to ensure meaningful, reproducible results.
The first step is clarifying why the test is being run. Are you checking solder fatigue, evaluating connector stability, or verifying polymer cracking resistance? Defining failure modes in advance ensures the profile targets the right stress points.
Once the purpose is set, the engineer selects the temperature range, ramp rate, dwell times, and number of cycles. The sample size should be statistically significant, and proper instrumentation—such as thermocouples placed at critical points—ensures accurate monitoring.
To judge success, samples are typically tested electrically or mechanically before and after cycling. Acceptance criteria may include resistance change, visual inspection, or more advanced non-destructive techniques.
Temperature cycling is not about cosmetic defects; it reveals core structural and functional weaknesses. Common failure mechanisms include:
Solder Joint Fatigue: Repeated expansion and contraction causes micro-cracks that can eventually lead to open circuits.
Coefficient of Thermal Expansion (CTE) Mismatch: Different materials expand at different rates, leading to delamination or cracking.
Connector Failures: Loose fittings or warped housings may appear after repeated cycles.
Delamination in Composites: Multilayer boards or bonded structures may separate under stress.
By identifying these issues early, companies avoid costly recalls or warranty claims.
Even with the right chamber, poor test design can lead to misleading results.
Large or dense specimens may heat and cool more slowly than the chamber air. Engineers should use thermocouples to verify that the product core reaches target temperatures, and avoid overcrowding the chamber, which restricts airflow.
Running too few cycles or skipping instrumentation can mask real problems. Conversely, over-testing beyond realistic conditions may waste time and resources. A balanced approach, following JEDEC or IEC protocols, ensures that results are both efficient and valid.
Temperature cycle testing remains one of the most important reliability screens across electronics, automotive, aerospace, and energy industries. A High and Low Temperature Test Chamber from Danble Instrument provides the precision, repeatability, and compliance with international standards that engineers need to qualify their products. By detecting solder fatigue, delamination, and other critical weaknesses early, companies save both cost and reputation. For tailored testing solutions built on over a decade of expertise, contact us today and let our team help you select or customize the right chamber for your application.
