The new energy, automotive, aerospace, and precision electronics industries require strict product reliability under extreme alternating high and low temperature environments. Sudden thermal expansion and contraction frequently trigger latent product defects, including structural cracking, circuit failure, and material degradation. Professional thermal shock testing serves as a highly efficient accelerated verification method to identify these hidden risks in advance.
Thermal shock chambers are specialized environmental simulation testing devices built for rapid high-low temperature alternation testing. These industrial testers simulate instantaneous extreme temperature shocks to screen potential structural defects and verify product environmental adaptability. Mastering their working principles, key components, and industry testing standards helps enterprises select high-efficiency, standard-compliant testing equipment and optimize standardized quality control workflows.
A thermal shock chamber is a professional accelerated environmental test device that exposes test samples to rapid, repeated extreme temperature transitions between high and low conditions. Different from ordinary temperature cycling equipment, this high-precision temperature shock test equipment realizes ultra-fast temperature switching within seconds, generating intense thermal stress to verify product durability. It is widely adopted for reliability screening of lithium batteries, automotive components, semiconductor chips, and aerospace materials.

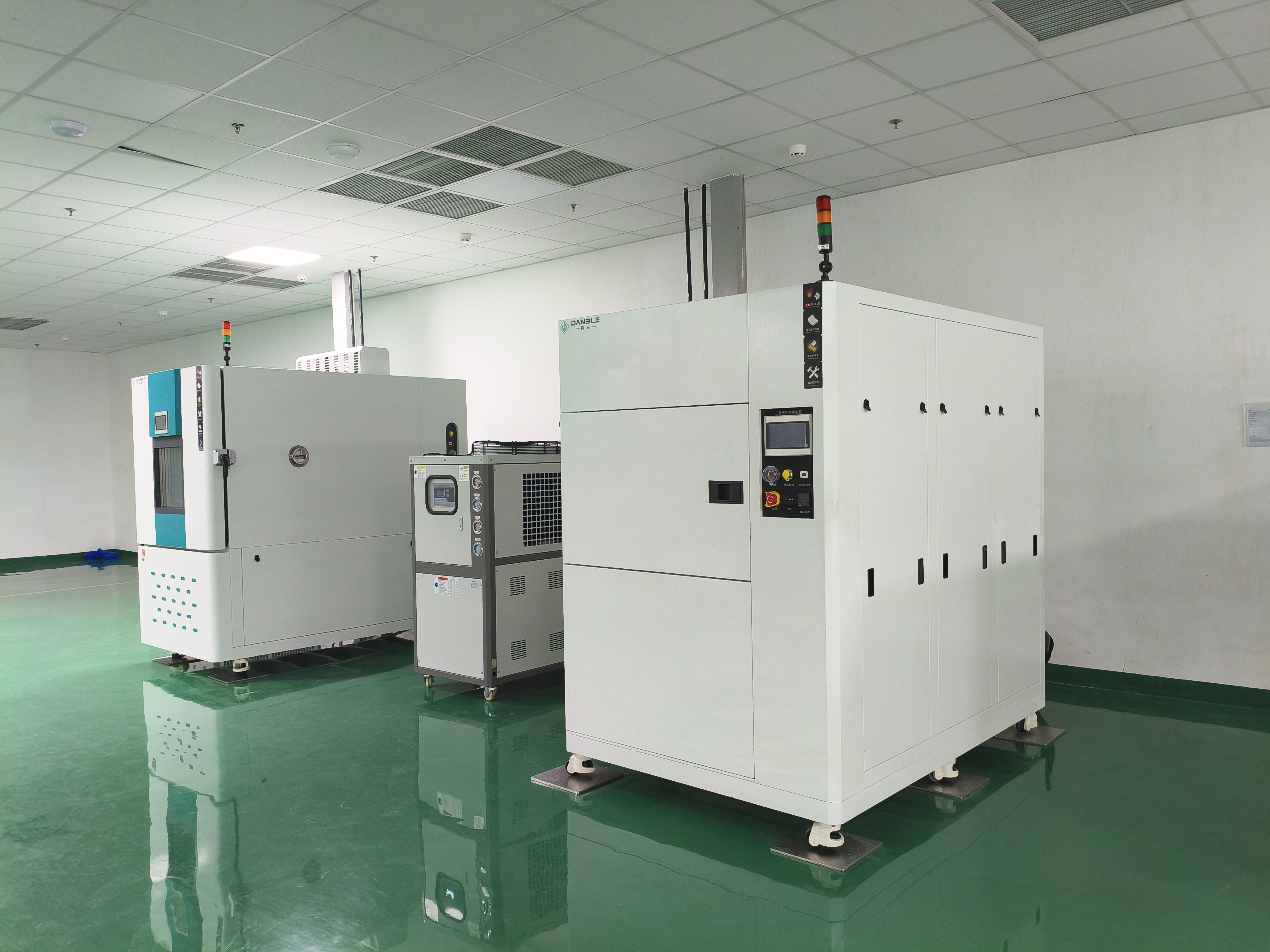

Based on structural design, industrial thermal shock chambers are categorized into two-zone (hot/cold dual zone) and three-zone (hot zone, cold zone, ambient zone) models, catering to different test efficiency requirements and strict industry testing standards.
The core working principle of thermal shock chamber equipment relies on independent multi-chamber temperature control and high-speed sample switching to achieve continuous instantaneous thermal shock cycles. The entire testing process is fully automated, programmable, and delivers consistent, repeatable test results for industrial reliability verification.
Dual independent closed-loop systems separately stabilize the temperature of hot and cold zones to maintain extreme test conditions. A high-speed servo transmission system drives the test basket to quickly switch samples between temperature zones, subjecting products to alternating high-temperature baking and ultra-low temperature freezing. This accelerated thermal stress screening efficiently uncovers latent structural and material defects that cannot be detected by conventional aging tests, ensuring comprehensive product reliability verification.
Three-zone models add an ambient buffer zone, which effectively avoids excessive temperature loss during switching, improves test stability, and extends equipment service life, suitable for high-frequency batch testing scenarios.
Heating System: High-efficiency alloy heating tubes with uniform heat output, achieving fast heating and stable high-temperature constant control.
Cascade Refrigeration System: Adopts dual-stage cascade refrigeration technology, supporting stable ultra-low temperature operation and meeting extreme low-temperature test requirements.
High-speed Transmission Mechanism: Servo motor-driven test basket, realizing ultra-fast zone switching to ensure standard-compliant thermal shock effects.
Intelligent Control Module: Programmable PLC system, supporting customized cycle times, dwell time and temperature parameters, with full data recording and traceability.
Air Circulation System: High-power centrifugal fan groups ensure uniform temperature distribution in the chamber and consistent test results.
Safety Protection System: Equipped with over-temp, over-current and pressure protection, as well as battery explosion-proof modules for new energy testing scenarios.
IEC 60068-2-14: Core international standard for environmental temperature change testing, specifying rapid temperature shock test methods and evaluation criteria.
MIL-STD-883: Military and aerospace standard, applicable to high-reliability testing of precision electronic components.
JEDEC JESD22-A104: Standard for semiconductor and electronic component temperature cycling shock testing.
UN38.3 & IEC 62133: Mandatory thermal shock test standards for new energy lithium batteries, ensuring battery safety and environmental adaptability.
All Danble thermal shock test chambers are precisely calibrated to meet IEC 60068-2-14, MIL-STD-883, JEDEC JESD22-A104, UN38.3 and IEC 62133 standards. The equipment supports customizable test parameters for diverse certification scenarios, ensuring all test data is accurate, traceable, and globally recognized for industrial product compliance.

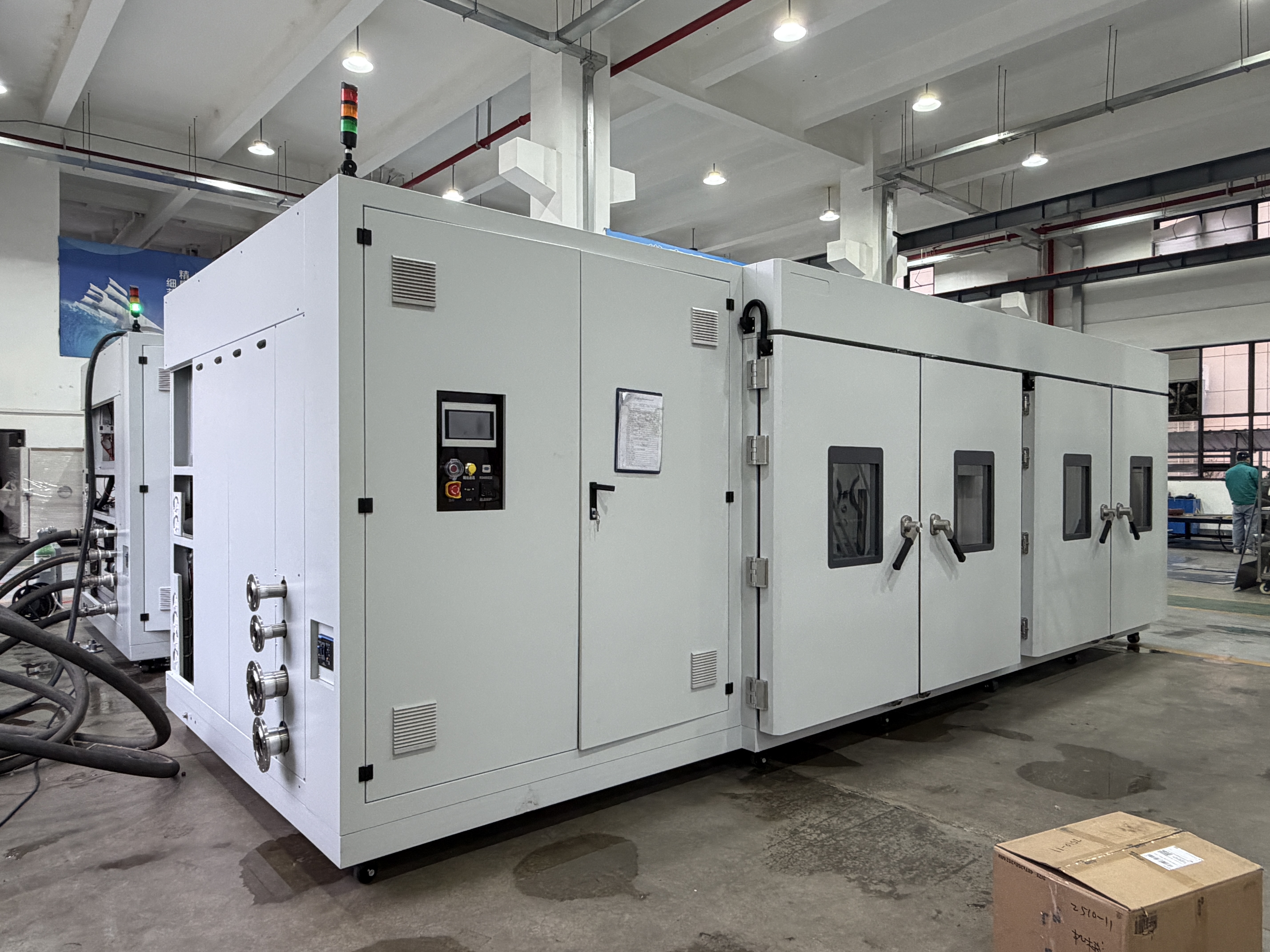

Boasting over a decade of technical experience in environmental simulation testing, Danble Instrument designs and manufactures high-performance industrial thermal shock chambers, including two-zone and three-zone models, to meet diverse industrial reliability testing needs.
Danble's thermal shock testing equipment features rapid temperature switching, uniform temperature field distribution, stable long-term operation, and excellent test repeatability. It is ideal for reliability testing of new energy batteries, automotive components, semiconductor devices, 3C electronics, and aerospace parts. Fully compliant with global industrial testing standards, our equipment supports customized modules such as explosion-proof structures and low-pressure simulation, delivering standardized and tailored thermal shock testing solutions for global manufacturers and third-party testing laboratories.
