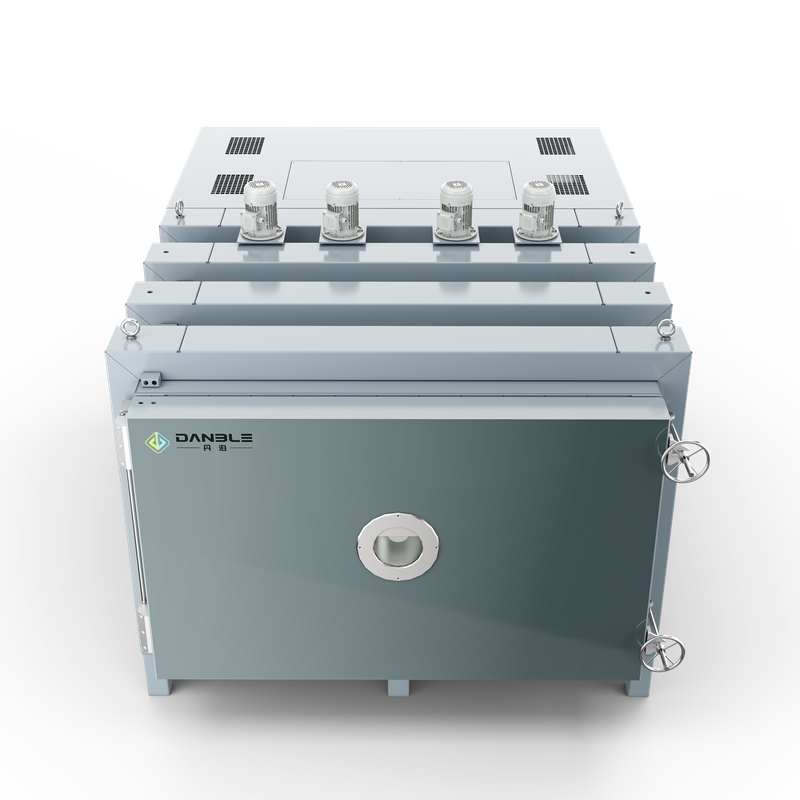

Danble's High-altitude Simulation Test Chamber, also called low-press test chamber, is built to address the rigorous testing needs of industries requiring high-altitude or low-pressure environment simulation.
|Key Technical Features:
Temperature Compatibility
The Optional integrated temperature control (-40℃~150℃） to simulate combined low-preesure and extrem temperature environments, mirroring real-world operating conditions for products like aircraft components or outdoor electronics.
Chamber Design
AStainless steel inner chamber ( SUS 304) with polyurethane for foam insulaiton.
Compact footprint options: 125L to 52500L (customizable for areospace and large-scale testing.)
Control System
7 or 10 inch touchscreen interface with multi-language support.
Advanced PID algorithm for dynamic pressure and temperature compensation.
RS-485/USB communication for data export and integration with PC software.
Vaccum Performance
Achieves 0.5Kpa in ≤45mins （ standard configuration.
Optional rapid depressurization module for compliance with GJB 150.2 (15-second depressurization).
Safety & Compliance
Equipped with emergency pressure relief valves and thermal overload protection.
Certified to GB/T 10590, GJB 150.6, and MIL-STD-810C.
Safety mechanisms: Door interlock, emergency stop, and phase-loss protection.
Optional Features
Humidity control for combined temperature-pressure-humidity testing.
Customizable dimensions and data logging for 30-day continuous operation.
Application Scenarios
Simulate high-altitude environments ( up to 45,000 equivalent altitude).
Validate electronics devices, aircraft components, and packaging integirty.
Workflow Integration
Pre-Test Setup: Define parameters (voltage limits, cycle count) via intuitive touchscreen.
Test Execution: Chamber automates charge-discharge cycles while monitoring safety metrics.
Post-Test Analysis: Export Excel data for capacity fade analysis and compliance reporting.
Why Choose Us?
ISO 9001 Certified Manufacturer with 13+ years of R&D experience
Customizable Configurations: Support non-standard sizes and temperautre ranges per project needs.
Global Compliance: Meets IEC, GB, GJB, and UL standards
Global Recognition: Trusted by Fortune 500 companies and R&D labs worldwide.
