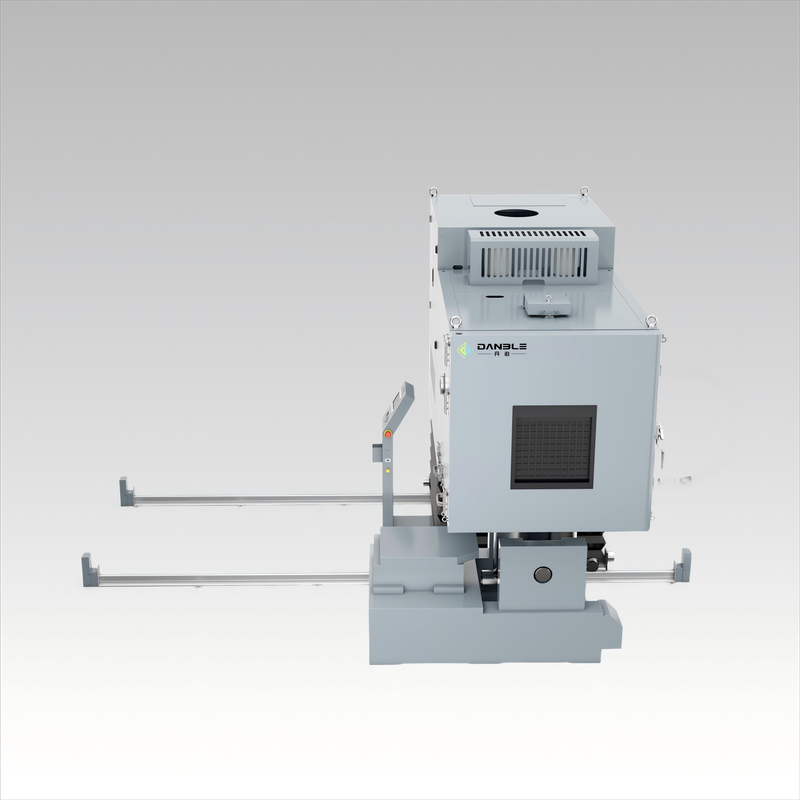

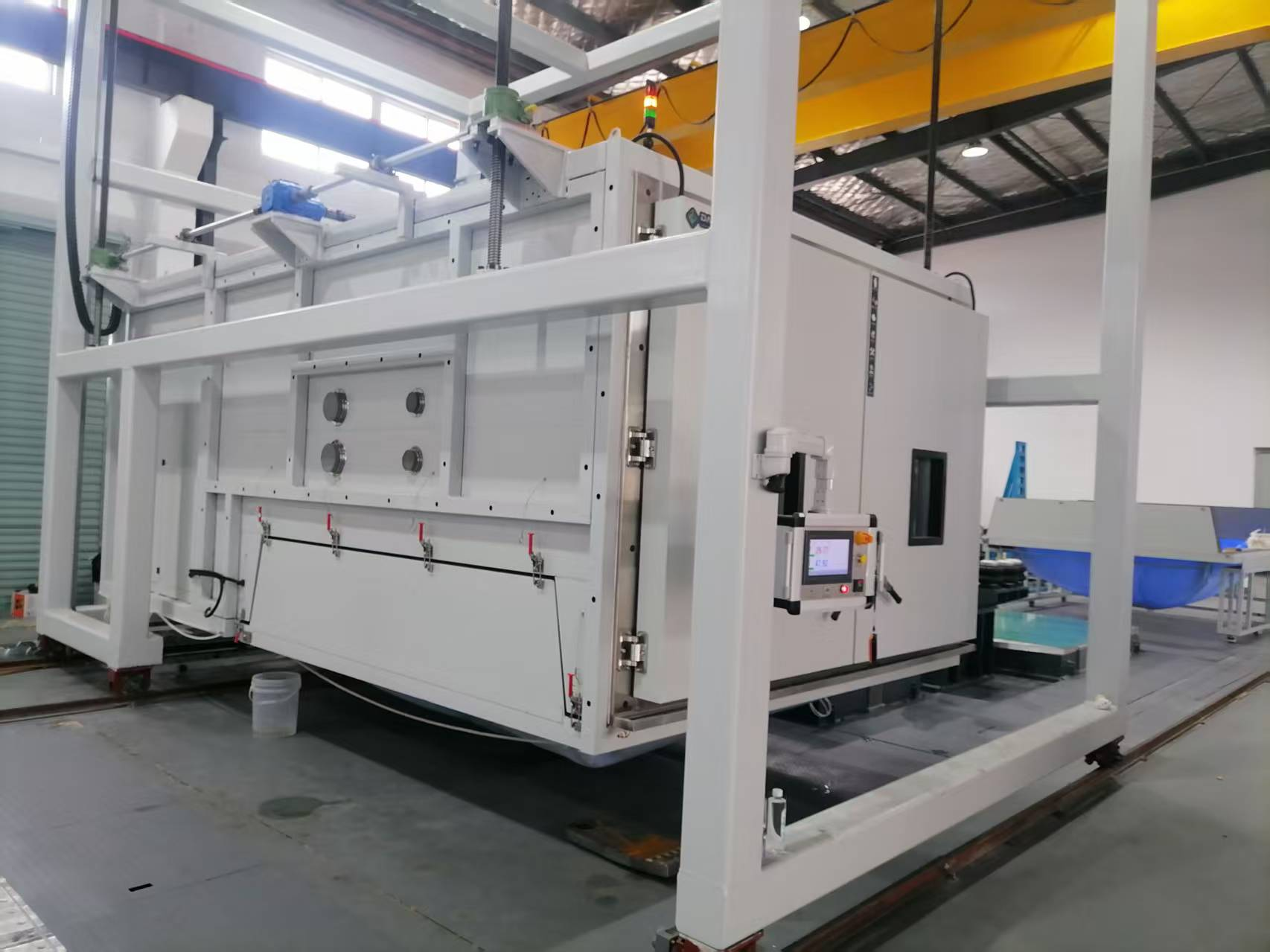

The Non-standard Custom Large-sized Triple Environmental Test Chamber (also termed Temperature/Humidity/Vibration Combined Test System) is an advanced, modular environmental simulation device engineered to simultaneously replicate temperature extremes (-70℃ to +200℃), humidity variations (10%–98% RH), and multi-axis vibration (5–5000Hz). Designed for industries requiring large-scale testing, this system integrates climatic and mechanical stressors to validate product reliability under real-world conditions
|Key Features:
Triple Environmental Control: Simultaneous temperature (-70℃~+180℃）, humidity (10% ~98%RH), and vibration (5~3000Hz) testing.
High Precision: ±0.5℃ temperature stability, ±2%RH humidity accuracy, and 1200m/s⊃2; vibration acceleration.
Robust Construction: Stainless steel interior (SUS 304) and insulation layers ensure thermal efficiency and durability.
Customizable Design: Adjustable chamber size ( 1000L-20000L), self-lifting/hydraulic/gantry lifting vibartion modes, and multi-stage temperature cycling.
Control System: PID controllers with real-time monitoring via 10-inch touchscreen.
Advanced Safety Protocols: Triple interlock system( over-temperature, over-pressure, leakage detection); Emergecy shutdown and remote monitoring interfaces.
|Customization Options
Size Adjustments: Custom chamber dimensions to accommodate large specimens (e.g., automotive battery packs).
Humidity Integration: Optional humidity control (-50% to 95% RH) for hygroscopic material testing.
Automation: Programmable multi-stage cycles and data logging for ISO 9001 compliance.
| Application Scenarios
Aerospace: Validate component performance under thermal cycling (e.g., satellite parts).
Automotive: Test EV battery modules for thermal shock resistance and vibration durability.
Electronics: Assess PCB solder joint reliability and semiconductor thermal stress.
Materials Science: Analyze polymer expansion coefficients and coating adhesion.
|Compliance Standards
IEC 60068-2-14 (Environmental Testing)
MIL-STD-810G (Mechanical Vibration)
GB/T 2423.22 (Temperature Cycling)
|Why Choose Us?
ISO 9001 Certified Manufacturer with 13+ years of R&D experience
Customizable Configurations: Support non-standard sizes and temperautre ranges per project needs.
Global Compliance: Meets IEC, GB, GJB, and UL standards
Global Recognition: Trusted by Fortune 500 companies and R&D labs worldwide.
