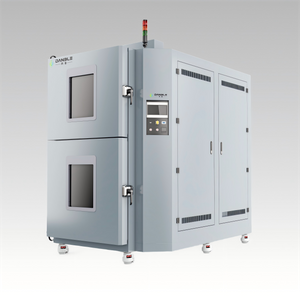

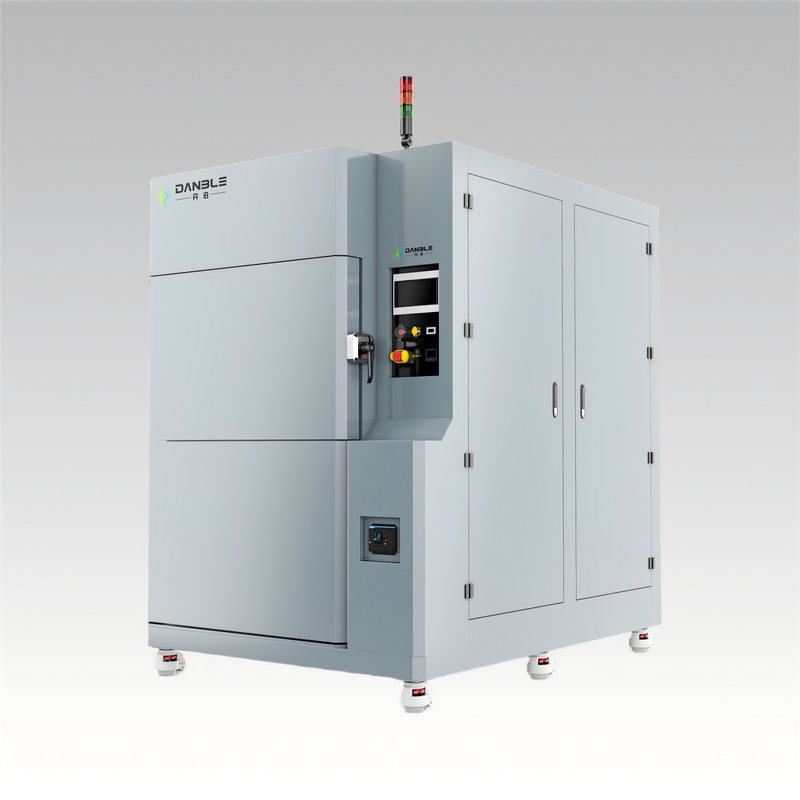

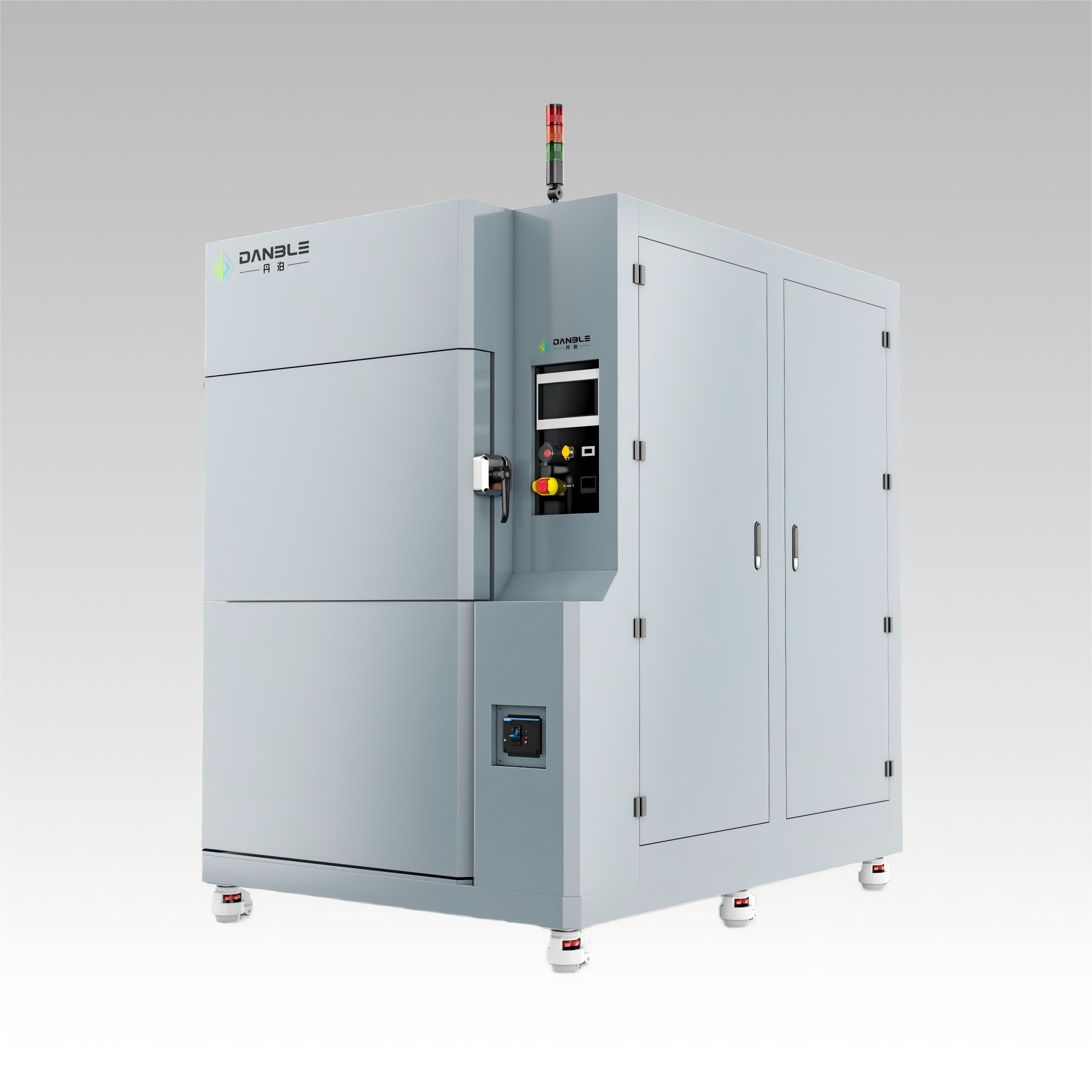

The 3-Zone Thermal Shock Chamber (also termed Triple-Compartment Temperature Stress Tester) evaluates material and product resilience under rapid temperature fluctuations. By maintaining three independent zones (high, ambient, low) with static sample positioning, this equipment simulates thermal shock scenarios critical for quality assurance in electronics, automotive, and aerospace industries.
|Key Technical Features:
Triple-Zone Independent Temperature Control
High, ambient, and low-temperature chambers operate simultaneously.
Elininates specimen transfer errors, ensure uniform temperature distribution (±2℃ in test zone), and reduces energy consumption by 20% compared to two-chamber model.
Ultra-fast transition
Achieves full temperature recovery within 5 minutes.
≤5s temperature shifts.meeting IEC 60068-2-14 standards.
Static Testing
Eliminates mechanical stress from moving samples.
Advanced Thermal Uniformity System
Forced air circulation via high-performance fans and optimized ducts ensures uniform temperature distribution(±0.5℃ stability).
Insulation design: Multi-layered (stainless steel + polyurethane foam) to minimize heat loss and maintain efficiency.
Precision Control & Monitoring
PID-programmable controllers (e.g., ±0.1°C resolution) with real-time data logging and curve visualization.
Integrated safety systems: Over-temperature/under-temperature alarms, compressor overload protection, and leakage detection.
Durable & Safe Construction
Materials:
Inner chamber: 1.2 mm SUS304 stainless steel for corrosion resistance.
Insulation: High-density glass wool + polyurethane foam for thermal efficiency.
Safety mechanisms: Door interlock, emergency stop, and phase-loss protection.
Flexible Configuration
High-temperature zone: Up to +180°C.
Low-temperature zone: As low as -70°C (depending on model).
Optional water-cooling systems for high-load applications.
User-Friendly Interface
7-inch touchscreen HMI for parameter setup, cycle programming, and diagnostic alerts.
RS-485/USB communication for data export and integration with PC software.
Application Scenarios
EV Battery Validation: Cycle life testing under thermal shock and fast-charging conditions.
Grid Storage Testing: Long-term deep discharge and fire resistance evaluation.
Aerospace Certification: High-altitude pressure simulation and vibration resistance.
Workflow Integration
Pre-Test Setup: Define parameters (voltage limits, cycle count) via intuitive touchscreen.
Test Execution: Chamber automates charge-discharge cycles while monitoring safety metrics.
Post-Test Analysis: Export Excel data for capacity fade analysis and compliance reporting.
Compliance Standards
IEC 60068-2-14 (Environmental Testing)
MIL-STD-810G (Mechanical Vibration)
GB/T 2423.22 (Temperature Cycling)
IEC 62619
GB/T 31486
Why Choose Us?
ISO 9001 Certified Manufacturer with 13+ years of R&D experience
Customizable Configurations: Support non-standard sizes and temperautre ranges per project needs.
Global Compliance: Meets IEC, GB, GJB, and UL standards
Global Recognition: Trusted by Fortune 500 companies and R&D labs worldwide.
