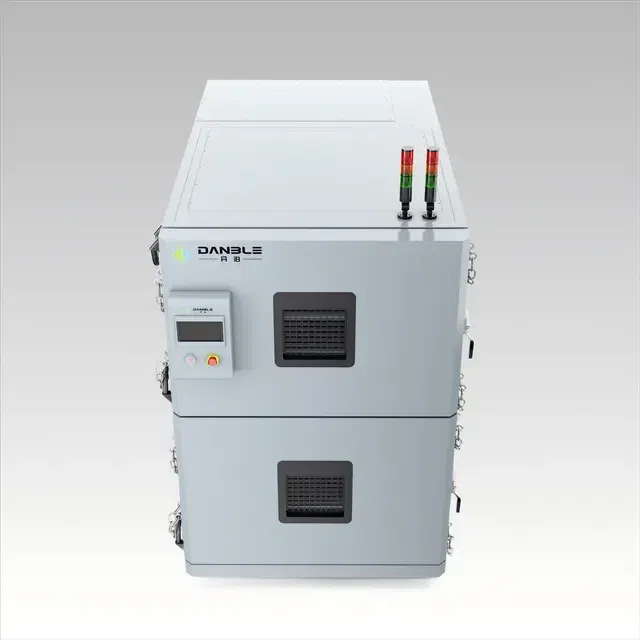

A High and Low Temperature Test Chamber, often simply called a temperature chamber or environmental chamber, is essential equipment for modern product validation. By reproducing hot and cold conditions in a controlled environment, industries can measure how materials and systems behave under stress before they ever reach customers. At Danble Instrument, we design and manufacture reliable chambers that help companies across aerospace, electronics, new energy, and many other fields verify performance, reduce risk, and meet global compliance standards.
A temperature chamber is essentially a sealed enclosure where heat and cold can be created, maintained, and cycled with precision. Behind its simple appearance is a sophisticated system of heating elements, refrigeration units, sensors, and airflow controls. Together, these create repeatable environmental conditions that are far more stable and reliable than anything that could be achieved in a normal room.
Heating in a chamber is typically achieved with electric resistance heaters, delivering fast and uniform temperature rise. Cooling relies on mechanical refrigeration systems, often multi-stage for deeper low temperatures, supported by high-efficiency compressors. Airflow design ensures that heat or cold is evenly distributed, preventing localized hot or cold spots that could compromise results.
At the heart of this system is PID (proportional-integral-derivative) control, which constantly adjusts power input to keep conditions within tight tolerances. Modern chambers, like those from Danble Instrument, integrate programmable logic controllers and touchscreen interfaces, making it simple for operators to set complex profiles such as ramp-and-soak or repeated cycling. Uniformity and repeatability are key: a product tested today must behave the same way when tested tomorrow under identical conditions.
Not every test requires the same type of chamber. Depending on the application, laboratories and production facilities may select from a wide range of designs, each optimized for specific test conditions.
A temperature-only chamber is dedicated to reproducing hot and cold environments without additional climate variables. These are widely used in electronics, aerospace, and plastics testing where thermal expansion, contraction, and material endurance are the main concerns.
For industries where moisture plays a critical role—such as coatings, packaging, or energy storage—a temperature-humidity chamber, often called a climatic chamber, is preferred. These models add controlled humidity generation and dehumidification systems, enabling tests like damp heat, condensation, and accelerated aging under combined conditions. By simulating both thermal and moisture stress simultaneously, engineers gain a more complete picture of long-term product reliability.
Certain applications demand extreme transitions. Thermal-shock chambers use two or more zones with radically different temperatures, moving samples rapidly between them. This stresses solder joints, glass, plastics, and composites in ways that gradual cycling cannot reveal.

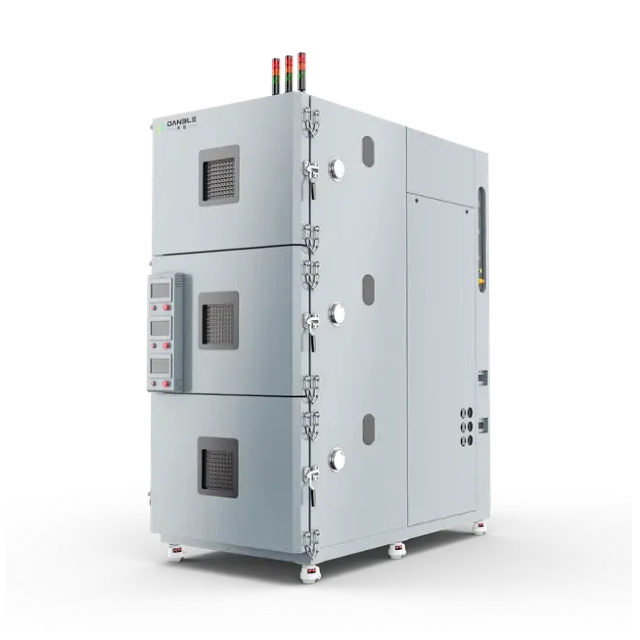

Walk-in chambers are large-scale facilities, often the size of small rooms, designed for full assemblies, vehicles, or racks of equipment. They are particularly common in aerospace, automotive, and defense testing where large prototypes must be evaluated.
On the smaller end, benchtop chambers provide compact solutions for labs with limited space or when only small components need to be evaluated. Despite their size, these units often include the same control precision as larger systems.
Finally, many organizations require custom fixtures. Danble Instrument has extensive experience delivering tailored chambers for unusual product shapes, specific test standards, or integration with automated test lines. These custom builds allow companies to achieve compliance without compromising workflow efficiency.
For many companies, deciding whether to invest in their own High and Low Temperature Test Chamber or outsource testing to an external lab is a major consideration. Each approach has advantages, and the decision often comes down to cost, throughput, and compliance requirements.
Owning a chamber means immediate access and complete control over scheduling, which is crucial when products are in rapid development or production validation cycles. It reduces turnaround time and allows for iterative testing, where designs can be modified and retested in days instead of weeks.
However, chambers represent capital investment. For organizations with limited or occasional testing needs, renting time at a third-party facility can be more economical. In such cases, throughput and scheduling flexibility are limited by lab availability, and costs are driven by hourly rates, test setup, and reporting.
Traceability is another factor. When you operate your own chamber, you maintain complete oversight of procedures, calibration, and data handling. This level of transparency is often required for industries with strict compliance obligations.
When external labs are used, accreditation becomes critical. ISO/IEC 17025 accreditation demonstrates that the lab operates with validated methods, calibrated instruments, and documented procedures. For customers or regulators, results from an accredited lab carry greater credibility. In many sectors, such as medical devices or aerospace, standard evidence from such labs is mandatory.
Chambers are versatile platforms that support a wide range of evaluations, from short functional checks to long-duration stress tests.
Functional testing ensures that products operate correctly while under specific thermal conditions. This is common in electronics, where circuits must remain stable at both sub-zero and elevated temperatures.
Storage testing evaluates how products behave after prolonged exposure, whether in hot desert-like environments or freezing transport conditions. These tests are vital for logistics planning and packaging validation.
Temperature cycling, sometimes called TCT (temperature cycle testing), involves repeated transitions between high and low setpoints. It is used to reveal fatigue, solder cracking, or seal degradation caused by thermal expansion and contraction.
Bake and soak tests, on the other hand, subject materials to sustained high or low temperatures for extended durations, simulating real-world scenarios such as long-term outdoor exposure or cold storage.
Across all of these, chambers provide the repeatability and precision necessary to produce actionable results.
Owning a High and Low Temperature Test Chamber is not just about the purchase—it is about keeping it accurate and reliable over its lifetime. Regular maintenance and calibration ensure that results remain trustworthy and compliant with global standards.
Uniformity mapping involves measuring multiple points inside the chamber to verify that conditions are consistent across the entire workspace. This is particularly important when testing large or sensitive items.
Sensor calibration is another critical step. Temperature sensors drift over time, and recalibration ensures that displayed values truly reflect actual conditions. Leading manufacturers, including Danble, provide calibration services and traceable certificates aligned with international standards.
Modern chambers also integrate software logging, which not only records conditions but secures them against tampering. This level of data integrity is essential during audits and when results are used in regulatory submissions.
Best practice is to follow a scheduled maintenance plan. Depending on usage, annual or semi-annual calibration may be appropriate, supported by documented procedures. These records demonstrate compliance during audits and reassure customers that testing is carried out under controlled, verified conditions.
A High and Low Temperature Test Chamber is more than just a piece of lab equipment—it is the backbone of reliable environmental testing across industries. By understanding chamber principles, selecting the right type, and ensuring proper maintenance, companies can gain confidence that their products will perform as expected in the real world. At Danble Instrument, we provide standard and customized chambers that meet international testing standards and deliver dependable performance for your projects. To explore solutions tailored to your needs, contact us today.
