High-Precision Aging Test Solution for Automotive Electronic Components
Project Overview
Danble successfully delivered a customized Walk-In High Temperature Aging Test Chamber for Inovance Technology, a leading industrial automation and automotive electronics company.
The system was designed for ECU powered aging testing in a production line environment, providing stable and accurate temperature control for long-term reliability validation of electronic control units.
Unlike laboratory testing environments, production lines involve more complex operating conditions and higher testing efficiency requirements. Therefore, the chamber was developed with enhanced temperature stability, uniformity, and system integration capability.
Project Requirements
The customer required a customized aging test solution capable of:
· Continuous powered aging testing for ECUs
· Integration with automated production processes
· Real-time monitoring of aging test data
· Stable temperature performance under production conditions
· High reliability for long-term operation
To improve testing efficiency, Danble collaborated with an automation system provider to develop a customized sample trolley solution.
Danble Solution
Customized Walk-In High Temperature Aging Test Chamber

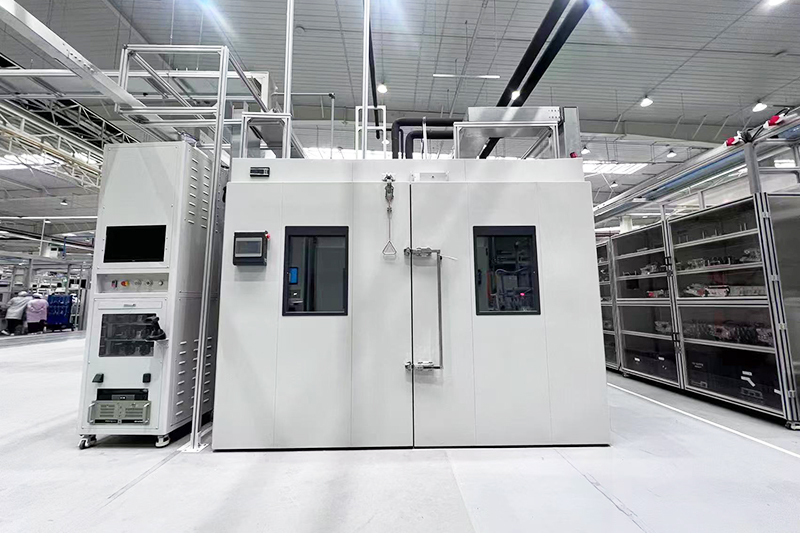

Danble designed and delivered a 13 m³ walk-in aging chamber equipped with a customized sample trolley system for automated ECU aging testing.
The system supports high-load operation while maintaining precise temperature control performance.
Main Specifications
Parameter |
Specification |
Equipment Type |
Walk-In High Temperature Aging Test Chamber |
Application |
ECU Powered Aging Testing |
Test Volume |
13 m³ |
Temperature Range |
RT ~ +65°C |
Load Capacity |
470 kg (ECU + Sample Trolley) |
Temperature Fluctuation |
≤±0.5°C |
Temperature Uniformity |
≤2°C |
Heating Rate |
Average 5°C/min with Load |
Cooling Rate |
65°C to 40°C at 8°C/min |
Monitoring System |
Industrial PC Upper Computer System |
Key Features
Customized Automation Integration
Working together with an automation partner, Danble developed a customized sample trolley system to improve:
· Loading and unloading efficiency
· Production line compatibility
· Testing process automation
Real-Time Aging Data Monitoring
The chamber is equipped with an industrial PC control system for:
· Real-time test data monitoring
· Aging process management
· Equipment status tracking
· Test record management
Project Delivery
Successfully Delivered for Automotive Electronics Production Line
Danble completed the manufacturing, delivery, installation, and commissioning of this walk-in high temperature aging test chamber.
The system has been successfully integrated into the customer’s production line for ECU reliability testing, supporting stable and efficient quality control.
Customer Benefits
With Danble’s customized aging test solution, the customer achieved:
· Reliable ECU aging testing under production conditions
· Improved testing efficiency through automation integration
· Accurate temperature control for consistent test results
· Enhanced product reliability verification
Why Choose Danble
Danble provides customized reliability testing solutions for automotive electronics and industrial applications, including:
· Walk-In Aging Test Chambers
· High Temperature Aging Chambers
· Temperature Humidity Chambers
· Thermal Shock Chambers
· Customized Production Line Testing Systems
With strong engineering capability and system integration experience, Danble supports global customers in improving product reliability and manufacturing efficiency.
