Danble successfully delivered a customized Walk-In Composite Salt Spray Aging Test Chamber for Fuyao Glass, a leading automotive glass manufacturer.
The system was developed for automotive glass durability evaluation under complex environmental conditions, supporting corrosion resistance and aging performance verification according to automotive industry requirements.
Automotive glass components are exposed to various environmental conditions during vehicle operation, including salt spray, humidity, temperature variations, and long-term weathering effects.
The customer required a large-scale testing system capable of simulating multiple environmental conditions in one chamber to evaluate:
· Corrosion resistance
· Environmental durability
· Material reliability
· Long-term aging performance
The system was designed to meet the requirements of Volkswagen PV1210 and BMW automotive testing standards.

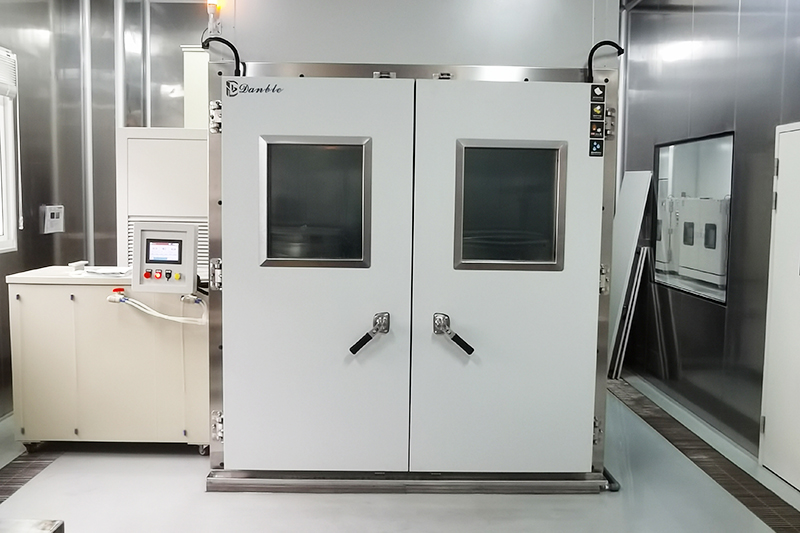

Danble designed and delivered a 10 m³ walk-in composite salt spray aging chamber with multiple testing modes, providing a flexible platform for automotive glass reliability testing.
The chamber integrates environmental control, salt spray simulation, and safety exhaust management to support continuous and reliable testing.
Parameter | Specification |
Equipment Type | Walk-In Composite Salt Spray Aging Test Chamber |
Application | Automotive Glass Reliability Testing |
Test Volume | 10 m³ |
Temperature Range | 15°C ~ +70°C |
Load Capacity | 60 kg Glass Samples |
Temperature Fluctuation | ≤±0.5°C |
Temperature Uniformity | ≤2°C |
Heating Rate | 3°C/min (Loaded, Point-to-Point Average) |
Cooling Rate | 1°C/min (Loaded, Point-to-Point Average) |
Humidity Range | 30%RH ~ 98%RH |
Humidity Fluctuation | ≤±2%RH (No Load) |
Salt Spray Deposition | Adjustable 12 ml/(h·80 cm²) |
Operation Modes | Salt Spray / Dry / Humidity / Rest |
Exhaust System | External Mist Elimination Tower |
The chamber combines multiple test environments within one system, allowing customers to evaluate material performance under different aging conditions without changing equipment.
The walk-in structure provides flexibility for testing larger automotive glass samples and supporting production-level reliability validation.
The integrated mist elimination system safely removes salt spray generated during testing, improving laboratory safety and environmental compliance.
The system supports automotive glass reliability testing according to:
· Volkswagen PV1210
· BMW automotive corrosion and environmental testing requirements
Typical applications include:
· Automotive glass corrosion testing
· Material durability evaluation
· Environmental aging assessment
· Long-term reliability verification
Danble completed the manufacturing, delivery, installation, and commissioning of this walk-in composite salt spray aging test chamber for Fuyao Glass.
The system has been successfully deployed for automotive glass reliability testing, supporting advanced quality validation and product development.
With Danble’s customized testing solution, the customer achieved:
· Integrated multi-environment aging evaluation capability
· Improved testing efficiency for automotive glass development
· Reliable compliance verification for automotive standards
· Enhanced product durability assessment
Danble provides customized environmental reliability testing solutions for automotive and material industries, including:
· Composite Salt Spray Test Chambers
· Walk-In Environmental Chambers
· Temperature Humidity Chambers
· Thermal Shock Chambers
· Customized Aging Test Systems
With professional engineering capability and experience in automotive testing projects, Danble supports global customers in developing safer and more reliable products.
