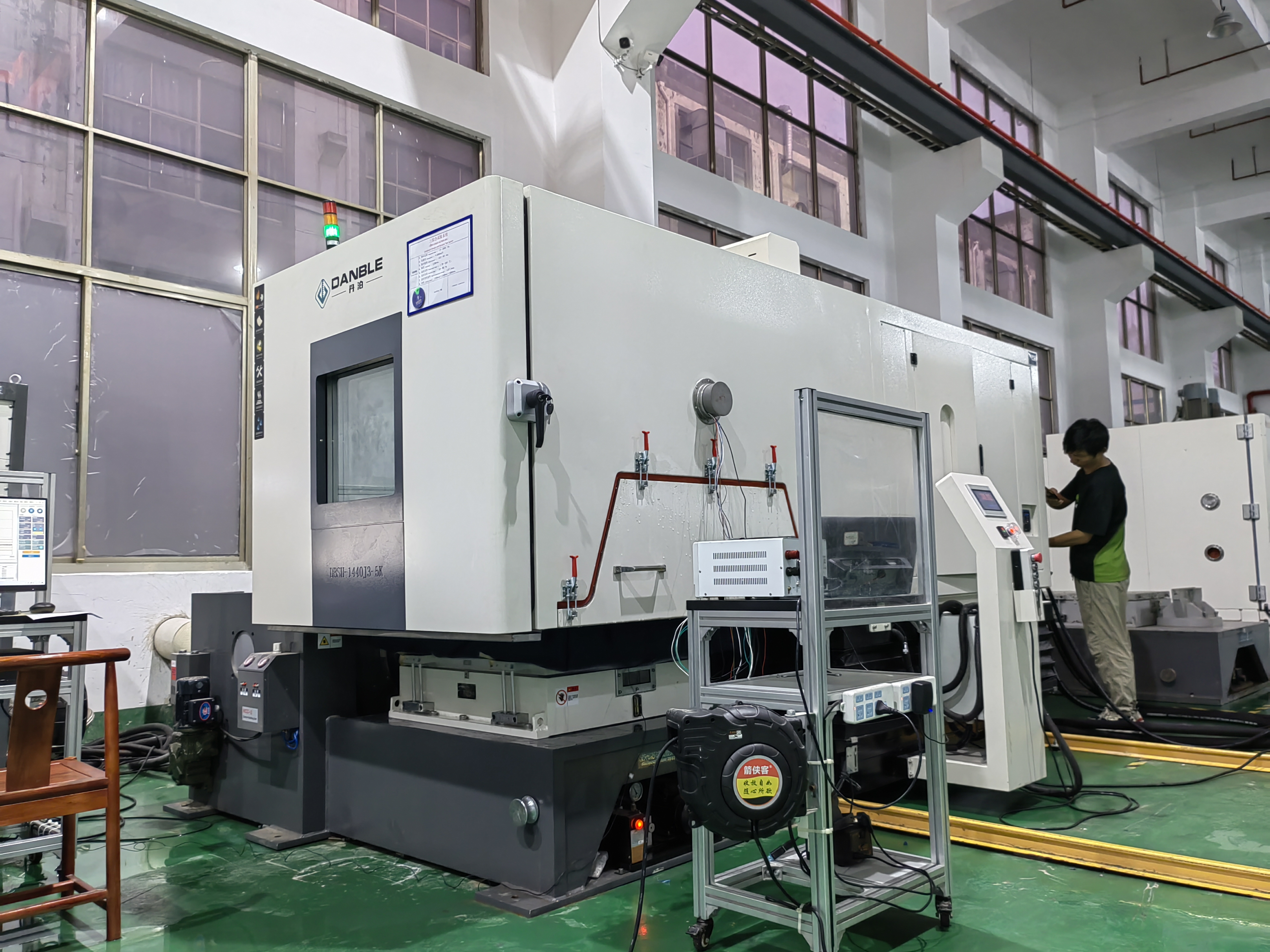

Danble Instruments specializes in designing Triple Integrated Test Chambers (Temperature-Humidity-Vibration combined systems) for industries requiring comprehensive environmental simulation.
Aerospace & Defense: Validate avionics, satellites, and spacecraft components under extreme conditions.
Energy Storage: Assess lithium battery performance under high-low temperature, relative humidity and vibration scenarios.
Electronic & Automotive: Test PCBs, sensors, EV batteries, and high-voltage systems under combined thermal, humidity, and mechnical stress.
Research & Development: Support materials science studies on thermal cycling, humidity resistance, and fatigue failure mechanisms.
| Parameter | Standard Range | Custom Options |
| Chamber Volume | 512L~3,000L | Custom sizes(e.g., 1,000W×1,000D×1,000H） |
| Temperature Range | -70℃~+150℃ | Extended ranges( e.g., -90℃~+200℃） |
| Humidity Range | 10% ~98%RH (non-condensing) | Custom humidity profiles |
| Vibration Modes | Sinusoidal (5-500Hz), Random, Shock | Multi-axis vibration(3-axis synchoronization) |
Temperature Heating & Cooling Rate | Heating Rate: 3℃/min (average, unloaded) Cooling Rate: 1℃/min (avearge, unloaded) | Ramp Rate: 0.7~30℃ is available |
| Material | SUS 304 stainless steel inner chamber | Custom coating (e.g., anti-corrosion) |
Multi-Stress Integration:
Combine temperature cycling ( -70℃~+150℃) and humidity control ( 10-98% RH), and vibration (5-500Hz) in a single system.
Optional altitude simulaiton (low-pressuer testing) for aerospace applications.
Modular Design:
Multi-chamber configurations: Up to 4 independent chambers for parallel testing.
Vibration table interfaces: Custom mounting brackets for compatibility with third-party vibration systems.
Advanced Systems:
10-inch TFT touchscreens for programmable cycles ( up to 120 programs, 999 steps each).
Real-time monitoring of temperature, humidity, vibration amplitude, and acceleration.
International: IEC 60068-2-14 (vibration), MIL-STD-810G (environmental testing).
Chinese: GB/T 2423.3 (damp heat), GB/T 2423.10 (shock), GJB 150.16A (vibration).
Certifications: ISO 9001, CE, RoHS.
Size & Geometry: Tailored to fit specific samples (e.g., automotive battery packs, aerospace panels).
Electrical Interfaces: Custom cable ports for in-chamber instrumentation (e.g., data loggers, sensors).
Specialized Fixtures: Adjustable racks, vibration isolators, and sample holders for diverse payloads.
Data Logging: Integration with LabVIEW or SCADA systems for automated reporting
Lead Time: 8–14 weeks (depending on complexity).
On-Site Commissioning: Full installation, operator training, and 30-day performance validation.
Warranty: 12 months standard; extended options available.
After-Sales: Spare parts supply, preventive maintenance plans, and 24/7 technical support.
Energy Efficiency: Variable-frequency refrigeration systems reduce energy consumption by 30%.
R&D Expertise: 40+ patents and participation in national standard revisions.
Industry Partnerships: Collaborated with BYD, Huawei, and aerospace research institutes.
