Evaluating high-capacity environmental testing solutions often frustrates lab managers, QA directors, and R&D engineers. Scaling up testing capacity usually forces a difficult choice. You either build massive Walk-In Chambers or purchase dozens of disjointed benchtop units. Both traditional paths present significant operational challenges.
Large, single-volume rooms waste massive amounts of energy when running part-load batches. Conversely, dozens of small units consume excessive floor space. They also require manual, individual programming and create complex maintenance webs. This dilemma slows down innovation and bloats laboratory overhead.
We recommend consolidating testing into Energy-Saving Multi-zone Test Chambers. These advanced systems use a single control interface to drive multiple independent zones. This approach physically isolates individual test batches. It also centralizes data acquisition and minimizes aggregate power consumption. In this comprehensive guide, you will learn how multi-zone architecture optimizes floor space. You will also discover strategies to mitigate risk and improve testing efficiency without sacrificing capacity.
Footprint & ROI: Centralized multi-zone architecture condenses the capacity of multiple standalone chambers into a single footprint, significantly reducing laboratory real estate costs.
Thermal Isolation: Physically decoupled micro-chambers prevent cross-interference, ensuring that an exothermic reaction or failure in one zone does not compromise the entire batch.
Energy Optimization: Advanced control algorithms allocate cooling/heating capacity dynamically, reducing the "overventilation" and part-load energy waste typical of large, single-volume chambers.
Simplified Workflow: A unified master controller coordinates asynchronous test profiles across multiple independent test zones, eliminating redundant programming and reducing human error.
Scaling up product testing requires physical space and thermal control. For years, laboratories relied on two polar opposite strategies. Both approaches create severe bottlenecks when testing diverse batches of small-to-medium components.
Traditional Walk-In Chambers remain strictly necessary for testing large assemblies. You need them for full EV chassis or aerospace components. However, using them for batches of smaller components leads to severe issues. Testing small battery cells or printed circuit boards (PCBs) in a large room causes thermal lag. The system works too hard to condition massive amounts of empty air. This results in massive energy waste when running at partial capacity. Furthermore, large volumes suffer from overventilation. The air distribution system struggles to maintain uniform temperatures across small, densely packed components.

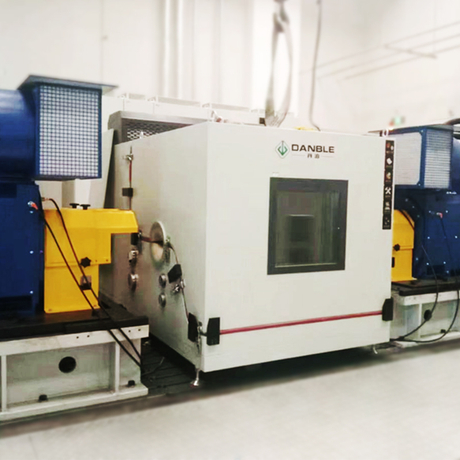

Many labs attempt to solve the part-load problem by deploying decentralized units. Buying 10 or more individual reach-in chambers isolates batches effectively. Yet, this strategy creates immediate integration nightmares. You must manage disparate software interfaces. You multiply maintenance nodes across the facility. Dozens of independent compressors constantly reject heat into the lab environment. This places excessive strain on your facility HVAC system. Managing a disjointed fleet increases human error during manual programming.

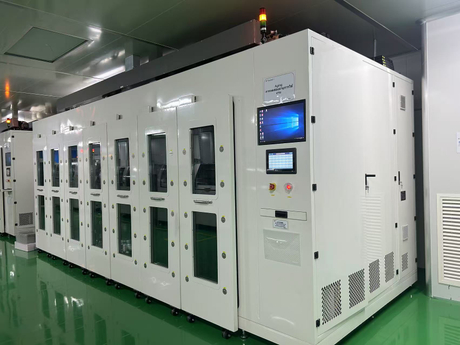

Multi-zone Test Chambers effectively bridge this gap. They offer the consolidated high density of a walk-in unit. Simultaneously, they deliver the precise, isolated control of individual benchtop systems. You can scale your testing capacity without proportionally scaling your facility overhead.
To illustrate this compromise, consider the following comparison chart detailing operational metrics across the three architectures:
Operational Metric | Walk-In Chambers | Benchtop Fleet (10+ Units) | Multi-zone Test Chambers |
|---|---|---|---|
Floor Space Efficiency | High (but wastes vertical space on small parts) | Very Low (requires aisles between units) | Very High (stacked, centralized footprint) |
Part-Load Energy Waste | Severe (conditions entire room) | Low (only active units run) | Low (conditions only active micro-zones) |
Data Integration | Single node (easy) | Highly complex (multiple software systems) | Streamlined (single master controller) |
Failure Containment | Poor (one failure ruins the room) | Excellent (physical separation) | Excellent (physically isolated micro-zones) |

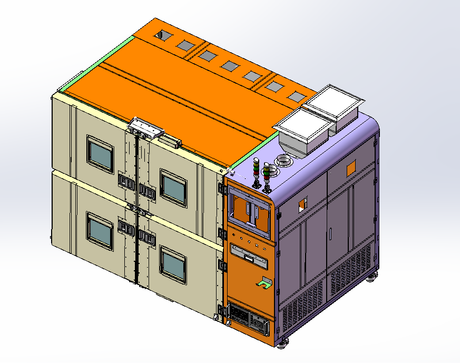

Modern multi-zone equipment relies on highly integrated, yet physically segregated, architectural designs. They eliminate the physical sprawl of multiple units while centralizing the operational brain.
The defining feature of this architecture is centralized control. A single Programmable Logic Controller (PLC) acts as the brain. This central software interface dictates distinct temperature profiles to independent internal zones. You can configure systems with 4, 8, or 16 independent micro-chambers. The master controller seamlessly integrates with cyclers or specialized testing equipment. An engineer can start, stop, or adjust a specific zone without interrupting adjacent tests. This eliminates redundant programming efforts.
Software separation means nothing without physical separation. Heavy insulation sits between each micro-chamber. The system manages independent airflow for each zone. This rigorous physical decoupling prevents thermal bleeding. Imagine Zone A running a harsh 150°C stress test. Right next to it, Zone B runs a deep freeze at -40°C. High-density insulation ensures the extreme heat does not impact the adjacent freezing test. This decoupling mimics the isolation of separate benchtop units perfectly.
Running separate utilities for dozens of standalone machines drains facility resources. Multi-zone architecture simplifies lab infrastructure dramatically through integrated sub-systems. Here is how they consolidate resources:
Unified Power Drop: The facility routes only one high-capacity electrical connection to the master unit. It distributes power internally to the micro-zones.
Centralized Water Supply: A single RO (Reverse Osmosis) water line feeds the integrated humidity control system. It negates the need for multiple water tanks.
Single Network Connection: One ethernet cable connects the master PLC to your lab management software. It pushes data from all 16 zones through a single IP address.
Shared Heat Rejection: A centralized refrigeration plant rejects heat systematically, often utilizing external water-cooling to spare the lab HVAC system.
Lowering utility consumption remains a top priority for modern laboratories. Multi-zone systems utilize advanced thermodynamic management to cut electrical usage drastically.
Traditional setups use one compressor per chamber. When running multiple independent units, you run multiple compressors at full blast. Multi-zone systems use centralized refrigeration systems instead. They employ Variable Refrigerant Flow (VRF) or servo-valve load control. These systems distribute cooling capacity only to the zones that actively demand it. If only three zones require cooling, the variable capacity compressor slows down. This reduces overall compressor runtime. It dramatically lowers electrical draw compared to isolated compressors.
Large chambers inherently suffer from part-load inefficiencies. They must condition their entire volume regardless of the payload size. Multi-zone test chambers only condition active micro-zones. If you shut down unused zones entirely, you immediately halt their energy consumption. The master controller isolates the inactive zones from the airflow loop. You never pay to heat or cool empty space. This part-load optimization makes testing small batches highly efficient.
Engineers have introduced modern efficiency enhancements into multi-zone designs. Traditional chambers use electrical heaters to prevent coil frost during low-temperature testing. These heaters fight the cooling system and waste electricity. Advanced multi-zone systems use hot gas bypass instead. They route hot compressor discharge gas to melt frost. This achieves frost prevention without using resistive electrical heaters.
Additionally, some manufacturers employ solid-state Peltier cooling. Peltier modules use no refrigerants and have no moving parts. They offer ultra-low energy consumption for specific temperature ranges. They are ideal for steady-state aging tests near ambient temperatures.
Best Practices for Energy Management:
Group steady-state tests together on the same testing schedule to minimize compressor cycling.
Always utilize the system's software to automatically power down micro-zones immediately after a test profile completes.
Perform regular maintenance on the central condenser coils to ensure heat rejection remains efficient.
Testing volatile components demands rigorous safety protocols. Centralizing your testing into one footprint might sound risky, but multi-zone systems are built explicitly for hazard containment.
High-risk testing requires strict physical quarantine. Consider lithium-ion battery cycling. If a single cell enters thermal runaway in a large shared chamber, it can destroy the entire batch. Fire and corrosive gases spread freely across an open room. Independent test zones physically quarantine failures. The heavy insulation and decoupled airflow keep the fire and gas isolated to a single micro-chamber. The rest of the batch survives untouched. You save months of testing data and thousands of dollars in prototypes.
Industrial-grade multi-zone systems feature overlapping hardware safety interlocks. These essential safety features protect both the operator and the facility. Key mechanisms include:
Independent Pressure Relief Valves: Each zone features its own burst port. If a battery vents gas, the valve safely exhausts the pressure outside the lab.
Localized Fire Suppression: Dedicated suppression nozzles deploy extinguishing agents only into the affected micro-chamber.
Temperature Limiters: Independent thermal sensors interlock with the main controller. If a zone exceeds its safe limit, the PLC automatically shuts down power to that specific test.
Global regulatory bodies mandate tight environmental tolerances. Massive open-volume chambers struggle with air-distribution challenges. They often fail to maintain precise uniformity across all corners of the room. Physical isolation and high-precision localized control solve this. Micro-chambers easily maintain strict tolerances, such as ±0.5°C uniformity. This makes it much easier to meet international standards like IEC 60068, UN38.3, and SAE J1211.
Common Mistake: Avoid relying solely on the return air sensor for critical tests. Always attach thermocouples directly to the Device Under Test (DUT) within the micro-zone. This ensures compliance with standards that dictate the actual product temperature, rather than the surrounding air temperature.
Procuring a complex environmental testing system requires careful technical evaluation. You must ensure the equipment aligns with your specific testing payload and software ecosystem.
First, assess the internal volume per zone against your actual DUT sizes. High channel density looks great on paper but fails if your components do not fit. Evaluate the physical dimensions of each micro-chamber. Ensure the chamber supports appropriate racking or testing trays. For example, battery testers must verify compatibility with cylindrical cell holders versus pouch cell clamps. A system with 16 tiny zones is useless if your PCBs require a larger footprint. Measure your largest expected component before committing to a zone density.
Hardware is only half the battle. The single control system must seamlessly "talk" to your existing lab management software. It must also integrate with power testing hardware, like battery cyclers or data acquisition units (DAQs). Look for systems offering documented APIs. Native software ecosystems reduce friction during installation. Ask the manufacturer if their PLC supports common industrial protocols like Modbus TCP/IP or OPC UA. Seamless integration prevents data silos and enables automated reporting.
You must verify the performance limits of the shared refrigeration plant. A centralized compressor works wonderfully for staggered tests. However, you must ask what happens if all zones simultaneously demand maximum power. If all 16 zones are commanded to perform rapid thermal shocks (e.g., jumping from 10°C to 40°C per minute), the system might choke.
Transparently acknowledge that shared-compressor systems may have limits on simultaneous peak-demand pulls. Review the thermal mass limits provided by the manufacturer. Use the following checklist to guide your procurement discussions:
Evaluation Criteria | Key Question to Ask Manufacturer | Target Standard / Benchmark |
|---|---|---|
Thermal Uniformity | What is the guaranteed uniformity across a fully loaded micro-zone? | ≤ ±0.5°C to ±1.0°C |
Peak Load Capacity | Can the compressor sustain 5°C/min ramp rates if all zones run simultaneously? | Review derating curves provided by vendor |
Software APIs | Do you provide native integration for our specific brand of battery cyclers? | Modbus, CAN bus, or RESTful API availability |
Safety Features | Are relief valves and limiters physically independent per zone? | Mechanical independence required by UN38.3 |
For laboratories dealing with high volumes of small-to-medium components, investing in energy-saving multi-zone architecture provides clear advantages. It yields a significantly better operational return than building oversized rooms or expanding a disjointed fleet of benchtop units. You achieve testing density without sacrificing safety or control.
Adopt multi-zone systems when your testing requires disparate, asynchronous profiles and high physical isolation. You should retain single-volume walk-in systems only when the physical dimensions of the test object explicitly demand it. Keep massive assemblies in massive rooms. Move batch testing to isolated micro-chambers.
Next Steps:
R&D directors should audit their current chamber utilization rates immediately.
Identify exactly how often large chambers run at less than 30% physical capacity.
Request footprint-to-channel-density calculations from multi-zone equipment manufacturers to visualize your potential space savings.
Draft a standardized API requirement list before speaking with equipment vendors.
A: Yes. The core value of a single control system with multiple independent test zones is asynchronous operation. Zone A can run a steady-state 85°C aging test while Zone B performs a -20°C to 60°C thermal cycle.
A: Typically, yes, when testing multiple small batches. By only conditioning the volume of active micro-zones and utilizing variable capacity compressors, they eliminate the energy wasted on conditioning empty space in a large walk-in room.
A: Industrial-grade multi-zone systems use localized sensors tied to a central PLC. If a fault (like over-temperature or gas venting) occurs in one zone, the software triggers localized physical relief and cuts power to that specific test, allowing the remaining zones to continue their testing cycles uninterrupted.
