Danble successfully delivered a customized Drawer-Type High Temperature Aging Test Chamber for an electronics reliability testing project in Chonburi, Thailand.
The system was designed for high-volume electronic product aging tests, supporting continuous power-on testing under controlled high-temperature conditions. The equipment helps improve product reliability validation efficiency and supports advanced manufacturing quality control.
The customer required an aging test solution capable of:
· Long-term powered aging testing for electronic products
· Multi-zone testing management
· Stable temperature control
· Safe operation for high-load electronic testing
· ESD protection for sensitive electronic components
The system needed to support production-scale reliability testing for advanced electronics manufacturing.

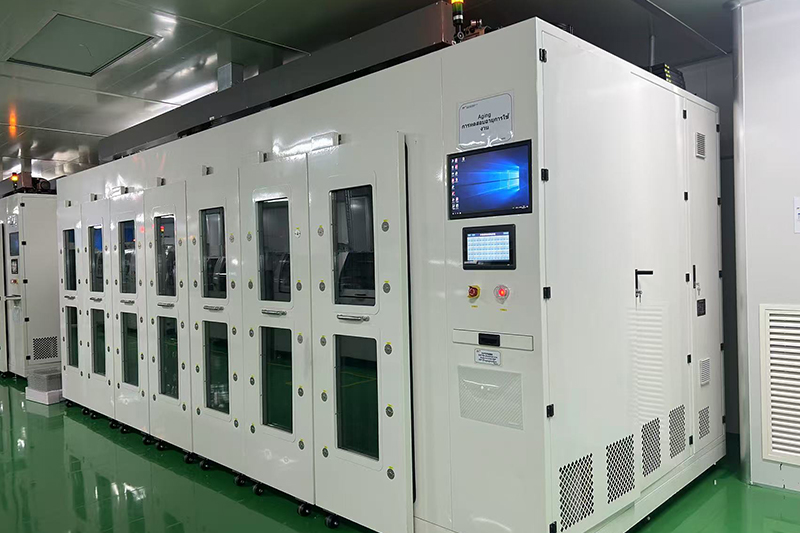

Danble designed and delivered a drawer-type aging chamber with multiple independent testing areas, providing flexible and efficient testing operation.
Parameter | Specification |
Equipment Type | Drawer-Type High Temperature Aging Test Chamber |
Application | Electronic Product Aging Testing |
Temperature Range | RT+10°C ~ 85°C |
Load Capacity | 500 kg |
Testing Mode | Powered Aging Test |
Test Areas | 14 Drawer-Type Testing Zones |
Test Ports | 35 Reserved Testing Holes |
Drawer Angle Adjustment | 40° / 45° / 50° Adjustable |
The equipment features 14 independent drawer-type testing sections, allowing operators to efficiently load, unload, and manage multiple test samples.
With a 500 kg loading capacity, the chamber supports large-volume electronic product aging tests under continuous power operation.
To protect sensitive electronic components, the chamber is equipped with:
· Anti-static coating
· Grounding treatment
· ESD resistance level: 10⁶ ~ 10⁹ Ω
The chamber integrates three smoke detectors for real-time safety monitoring during long-duration aging tests.
Danble completed the manufacturing, delivery, installation, and commissioning of this drawer-type high temperature aging test chamber in Chonburi, Thailand.
The system is used for electronics reliability validation and supports the customer’s quality control process for advanced electronic products.
With Danble’s customized aging test solution, the customer achieved:
· Higher testing efficiency through multi-zone operation
· Reliable long-term powered aging capability
· Improved product quality verification
· Enhanced safety management for electronic testing
Danble provides customized environmental reliability testing solutions for global electronics manufacturers, including:
· High temperature aging chambers
· Temperature humidity chambers
· Thermal shock chambers
· HAST chambers
· Customized reliability testing systems
Through professional engineering and project delivery experience, Danble supports customers in improving product reliability and accelerating production development.
