Production Description

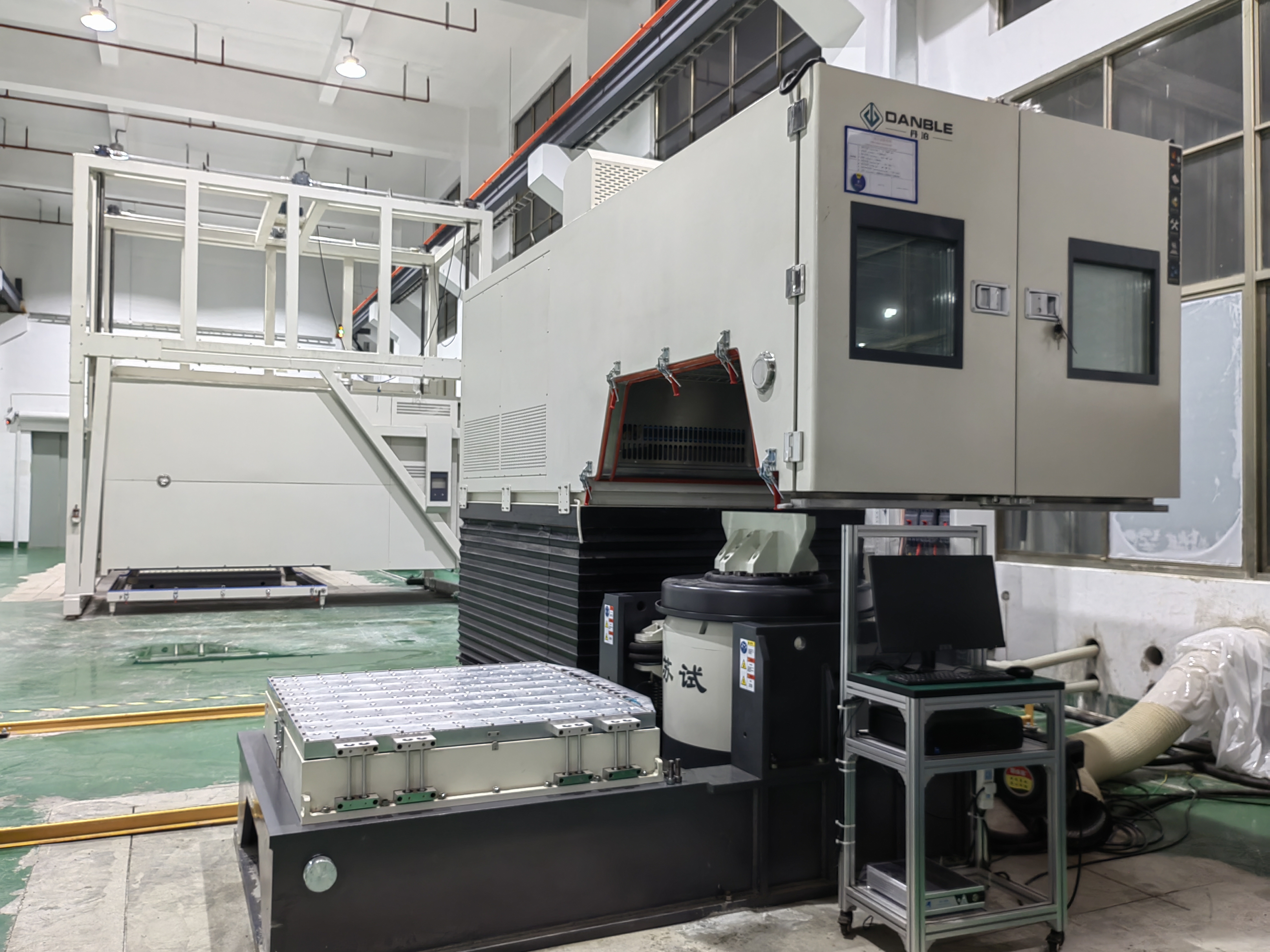

Danble Temperature-Humidity-Vibration Combined Test Chamber (Three Comprehensive Test Chamber) is a high-performance integrated environmental simulation device. It uniquely integrates temperature cycling, humidity conditioning and mechanical vibration testing into one single system, supporting simultaneous or sequential multi-stress testing. Different from single-factor test equipment, it truly restores complex real-world operating and transportation environments, helping enterprises accurately expose latent product defects and complete high-standard reliability verification in one machine. Technical Specifications:
Temperature Range: -70°C to +150°C (±0.5°C stability)
Humidity Range: 10%–98% RH (±3%RH accuracy at 25°C)
Vibration Frequency: 5Hz–3000Hz (adjustable amplitude 0–5mm)
Chamber Material: 316L stainless steel (internal), powder-coated steel (external)
Control System: PLC + 10.1-inch touchscreen with multi-language support
Certifications: CE, UL, ISO 9001, GJB 150A
Key Features:
Integrated Stress Simulation: Simultaneous temperature, humidity, and vibration loading
Rapid Transition: Achieves -70°C in ≤45 mins & +150°C in ≤30 mins
Safety Protocols: Over-temperature shutdown, leak detection, and emergency stop
Applications:
Aerospace: Validate avionics components under thermal cycling and vibration
Automotive: Test battery thermal management & HVAC system durability
Electronics: Accelerated life testing for PCBs, connectors, and semiconductors
Military: Compliance testing per MIL-STD-810G for shock/vibration resistance
Why Choose Us?
Custom Configurations: Adjustable chamber sizes (50L–5000L) and vibration modes
Global Compliance: Meets IEC, MIL-STD, and regional standards (EU/US/ASEAN)
After-Sales Support: Onsite installation, annual calibration, and 24/7 technical assistance
Industries Served
Aerospace & Defense
Automotive Manufacturing
Electronics & Semiconductors
Telecommunications
Energy & Renewable Systems
