ONE-STOP TESTING SOLUTION SUPPLIER
Founded in 2012, Danble is a leading innovator specialized in R&D, manufacturing and sales of environmental test chambers and laboratory testing solutions.
Precision Testing for Demanding Applications

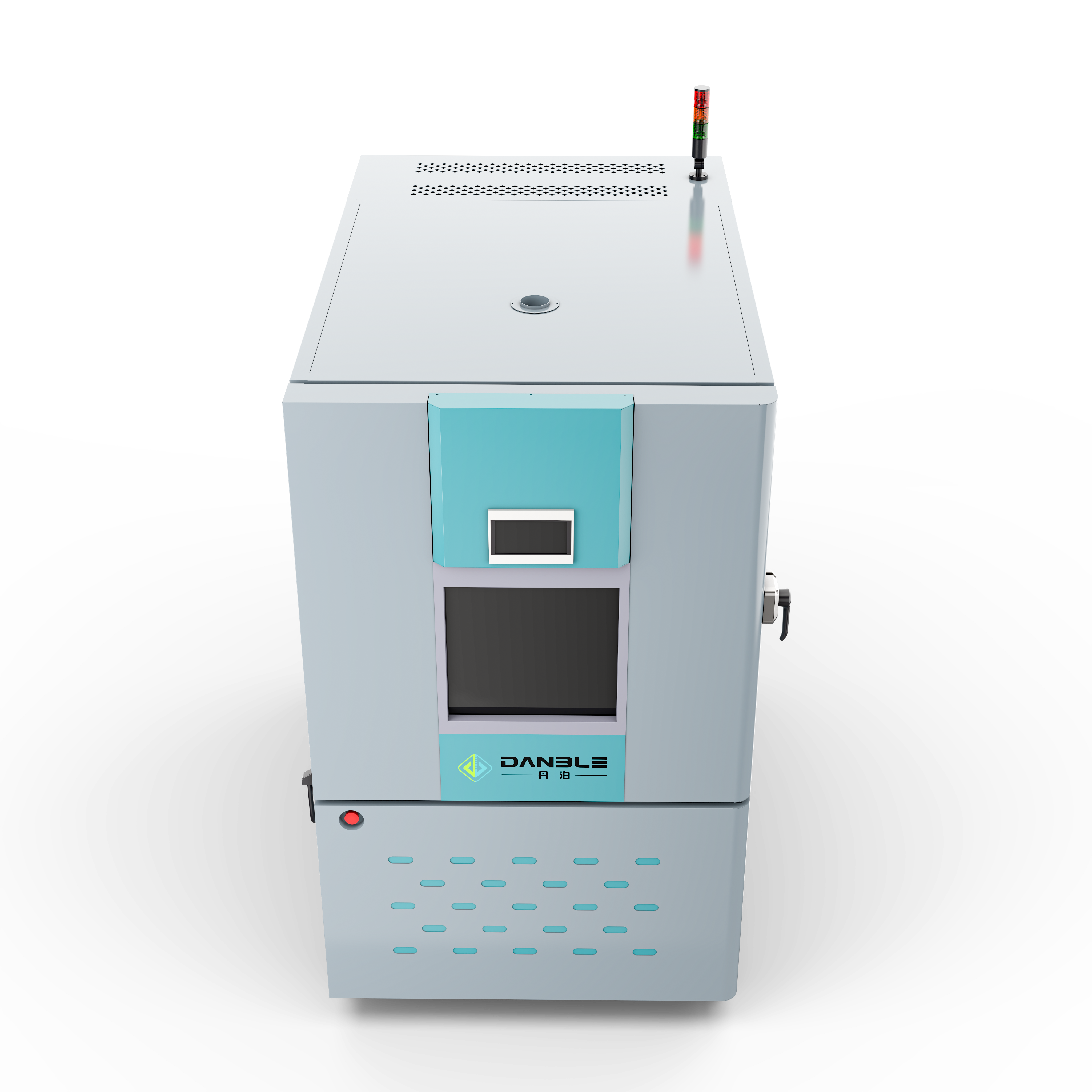

DBH-504L Cycling Temp & Humid test chamber is a state of the art solution desinged for rigorous reliability testing. It features accurate and rapid transtions between set temperature and humidity profiles, simulating years of environmental stress in a condensed timeframe to identify potential product weaknesses before market release.
With a spacious 504-liter internal cavity, this climatic testing device balances capacity and performance, making it a versatile solution for industrial quality assurance and R&D applications.
|Key Features
Internal Volume: 252 Liters
Temperature Range: -40°C to +150°C (extended range optional)
Humidity Range: 20% to 98% RH
Transition Rate: Rapid cycling capability (e.g., 3°C/min typical, customizable)
Uniformity: ±0.5°C (temperature), ±2.5% RH (humidity)
Control System: Touchscreen PLC with programmable cycles, USB data export
Interior: Stainless steel (SUS304)
Compliance: Designed to meet IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-30, MIL-STD-810
|Optional Customization:
Explosion-proof design for hazardous materials
Low-humidity modules( 5% RH)
Custom chamber sizes ( up to 2000L) or walk-in type (up to 30m³）
Optional test ports (50–100mm diameter) for electrical connectivity.
Extended warranty (up to 3 years) and on-site installation support.
|Application
This 252L temperature humidity cycling chamber is widely adopted in:
•Electronics & PCB reliability testing
• Automotive component validation
• Battery & energy storage assessment
• Aerospace/defense component screening
• Material aging research
• Medical device stability testing
|Why Choose 252L Chamber?
Optimized Benchtop Design: The 252L capacity offers an ideal balance between generous testing space and a compact footprint, saving valuable lab area without compromising on test volume. It is engineered for easy integration into existing lab setups.
Rapid Transition Performance: Despite its benchtop size, the chamber features an advanced airflow and refrigeration system that ensures fast temperature and humidity change rates. This allows you to run more test cycles in less time, accelerating time-to-market for your products.
Engineered for Data Integrity: We prioritize precision. With excellent spatial uniformity (±0.5°C, ±2.5% RH) and stable control, the chamber guarantees that every test yields consistent, reliable, and audit-ready data, which is critical for certification and quality assurance.
Durable, Low-Maintenance Construction: Built with corrosion-resistant stainless steel interiors, reliable compressors, and long-life components, this chamber is designed for continuous operation. The robust design minimizes downtime and reduces the total cost of ownership.
User-Centric Operation & Support: The intuitive touchscreen controller makes programming and monitoring simple. Coupled with our comprehensive pre-sales consultation and after-sales technical support, you gain a true testing partner dedicated to the success of your laboratory.
| Request Your Custom Quote
To help us prepare an accurate and customized quotation for the 252L Cycling Chamber, please share your specific testing requirements:
• Test Specifications: Your needed temperature range and humidity setpoints.
• Compliance Standards: Any specific industry or internal test standards you must meet (e.g., IEC 60068-2-30).
• Sample Details: The size, weight, and quantity of the products to be tested.
• Project Timeline: Your desired delivery date or required project schedule.
Providing these details will ensure we configure the optimal solution for your application.
Our engineering team will respond with a detailed quote and technical plan within 24 hours.
