Multilayer Fast Thermal Cycling Test Test Chamber

Rapid Temperature Change Test Chamber is suitable for aerospace devices, 3C electronic components, automotive parts, and various industrial products to test their various performance under high and low temperature rapidly changing environments.

Model:
DBT3-1000D3
Brand:
Danble

Availability:

Quantity:



Inquire Add to Basket

Product Description

|

Product Description

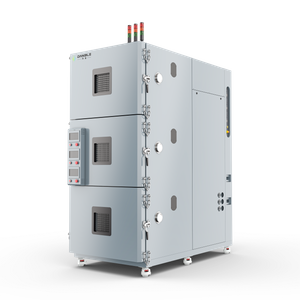

Multi-layer Rapid Temperature Change Test Chamber

Accelerated Reliability Testing for High-Volume Industrial Applications

Core Functionality

The Multi-layer Rapid Temperature Change Test Chamber simulates extreme thermal cycling environments to evaluate product reliability under accelerated stress conditions. Designed with stacked independent shelves, it enables simultaneous testing of multiple batches, significantly enhancing efficiency for high-volume production validation.

|

Product Features

High-Speed Thermal Cycling

Transition Rates: 5°C/min, 10°C/min, 15°C/min

Temperature Range: -70°C to +180°C (extendable with liquid nitrogen cooling)

Uniformity: ≤±1.5°C across all shelves

图片1(1)

Multi-layer Optimization

Independent Shelf Control: Customizable temperature profiles per layer

Capacity: Up to 2000L (e.g., 1000×1000×1000mm chamber), supporting large or dense loads.

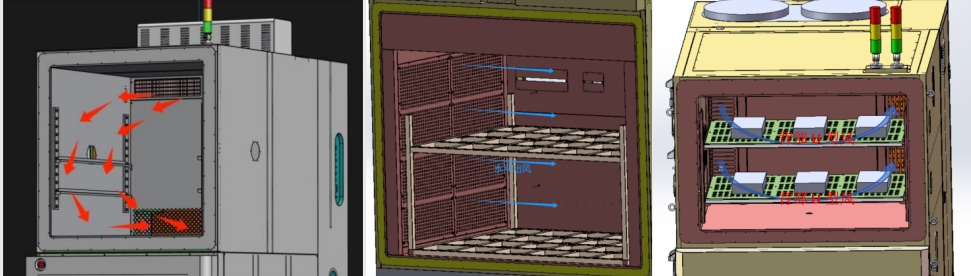

Airflow Design: 1:3 product-to-chamber volume ratio ensures optimal airflow

Energy Efficiency & Compliance

Cooling Technology: Advanced cooling control system reduces energy consumption

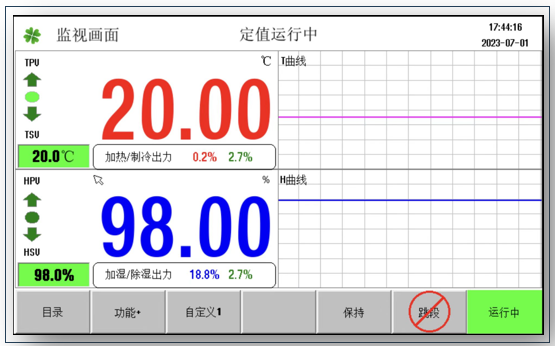

Control System: Touchscreen PLC with real-time cures.
Safety Protection: Leakage/overload cutoff, automatic defrost.
Construction: SUS304 stainless steel interior, anti-corrosion exterior.

Standards: JEDEC JESD22-A104B, IEC 60068, MIL-STD-2164

|

Applications

Electronics: PCB/IC thermal validation, solder joint fatigue testing
Automotive: ECU durability, sensor performance under rapid transitions
Aerospace: MIL-STD-810G compliance for avionics and materials

微信截图_20250606100935

| Parameters

Model	DBT3-1000D3
Interior Dimension(mm)	1250×800×1000
External Dimension(mm)	1600×2100×1970
Heating/Cooling Rate	5℃/min, 10℃/min, 15℃/min(Linear)
Temperature Range	-40℃ to 150℃ （-70℃ is available）
Fast Temperature Range	-40℃ to 85℃
Humidity Range	10~98% RH
Temperature Deviation	≤2℃
Temperature Fluctuation	≤±0.5℃
Cooling way	Water-cooling
Power	AC380V, 50Hz, Three-phase 5 wires

Why Choose Multi-layer Design?

Throughput Boost: Test 3–5x more samples vs. single-layer chambers
Cost Efficiency: Reduce lab space and energy costs per unit tested.
Flexibility: Configure shelves for mixed-product batches (e.g., sensors + batteries)
