As vehicles become more intelligent, electrified, and connected, the reliability of automotive electronics has never been more crucial. From engine control units (ECUs) to LED headlights and battery management systems, these components are continuously exposed to rapid and extreme temperature fluctuations during real-world operation. Ensuring their durability requires rigorous testing—thermal shock testing being one of the most vital procedures.
This article explores the integral role of Thermal Shock Chambers in automotive electronics validation. It covers the types of components tested, industry-specific standards, real-world case studies, and how advanced thermal shock testing supports a closed-loop quality improvement process. If your automotive products require robust environmental testing, we recommend Danble Instrument (Kunshan) Co., Ltd., a trusted supplier of high-performance environmental chambers tailored to the automotive industry.
Automotive electronic systems must operate reliably across varying climates and sudden thermal transitions. For example:
Vehicles can be started in -30°C environments and heat up rapidly to 80°C under the hood.
Systems like adaptive headlights or engine controllers can cycle between hot and cold states repeatedly within minutes.
Charging and discharging electric vehicle (EV) batteries generate internal heat surges.
Such conditions create thermal stress, which can lead to solder joint failures, micro-cracking in circuit boards, and degradation of material performance. Thermal Shock Chambers simulate these conditions by rapidly cycling components between high and low temperatures, revealing latent defects early in the development or production process.
Thermal shock testing is widely applied to critical automotive electronics, including:
Onboard Control Modules (ECUs/BCMs/TCUs): Onboard Control Modules such as ECUs (Engine Control Units), BCMs (Body Control Modules), and TCUs (Transmission Control Units) are central to vehicle operation and safety. These modules manage complex functions like engine performance, braking systems, and infotainment controls. Given their central role and exposure to thermal extremes, they must be validated through thermal shock testing to prevent system failures that could compromise vehicle safety or performance.
LED Lighting Systems: LED Lighting Systems are another category highly susceptible to thermal stress. Frequent temperature-induced expansion and contraction cycles can cause lens deformation, solder cracking, or housing failures. Using a Thermal Shock Chamber ensures that these components can withstand real-life fluctuations in temperature, especially in exterior lighting exposed to both engine heat and cold weather environments.
Battery Systems and BMS Units:Battery Systems and Battery Management Systems (BMS) are pivotal in hybrid and electric vehicles, which face wide-ranging environmental temperatures. Batteries must maintain performance without degradation in both freezing and high-heat scenarios. Thermal shock testing verifies cell enclosure integrity, connector reliability, and overall thermal resistance, thereby extending the operational safety and lifespan of EV power systems.
Power Converters and Inverters: Power Converters and Inverters, which are commonly located in the engine compartment, are constantly subjected to under-hood heat and rapid cool-downs. These conditions create stress on thermal interfaces and insulation materials. Thermal shock testing identifies potential weak points in these systems, allowing for design adjustments that enhance operational reliability and reduce warranty claims.
Sensors and Actuators: Sensors and Actuators, which monitor and control various vehicle systems, must maintain high precision despite temperature changes. Their small size and sensitive electronic circuitry make them particularly vulnerable to thermal-induced errors or failures. By tailoring the Thermal Shock Chamber testing parameters to the specific sensor materials and expected service environment, manufacturers ensure optimal performance and extended product lifecycle.
Each of these components has unique thermal cycling thresholds, making it essential to customize the test program according to the part’s materials and function.
To ensure consistency and comparability, the automotive industry relies on standardized testing frameworks. Common standards include:
ISO 16750-4: Electrical and electronic chamber tests, including thermal cycling and thermal shock.
AEC-Q200: Stress test qualification for passive components used in automotive applications.
IEC 60068-2-14: Basic environmental test procedure for thermal shock.
These standards specify parameters like:
Temperature ranges (e.g., -40°C to +150°C)
Dwell times at high/low temperatures
Transfer time between zones (often <10 seconds)
Number of cycles (typically 100–1000 depending on the product lifecycle)
Danble Instrument (Kunshan) Co., Ltd. designs chambers that fully comply with these standards, ensuring manufacturers can meet global OEM and Tier-1 supplier requirements.
Thermal shock testing in the automotive sector follows a structured methodology:
Sample Preparation: Components are mounted in the chamber based on orientation guidelines and thermal mass.
Chamber Programming: The cycle is configured per standard—often involving transitions between -40°C and +150°C with minimal delay.
Thermocouple Integration: Sensors monitor internal component temperature, verifying chamber performance.
Test Execution: The system runs for multiple cycles over several hours or days.
Post-Test Evaluation: Visual inspection, electrical functional testing, and X-ray or microscopy analysis to detect internal damage.

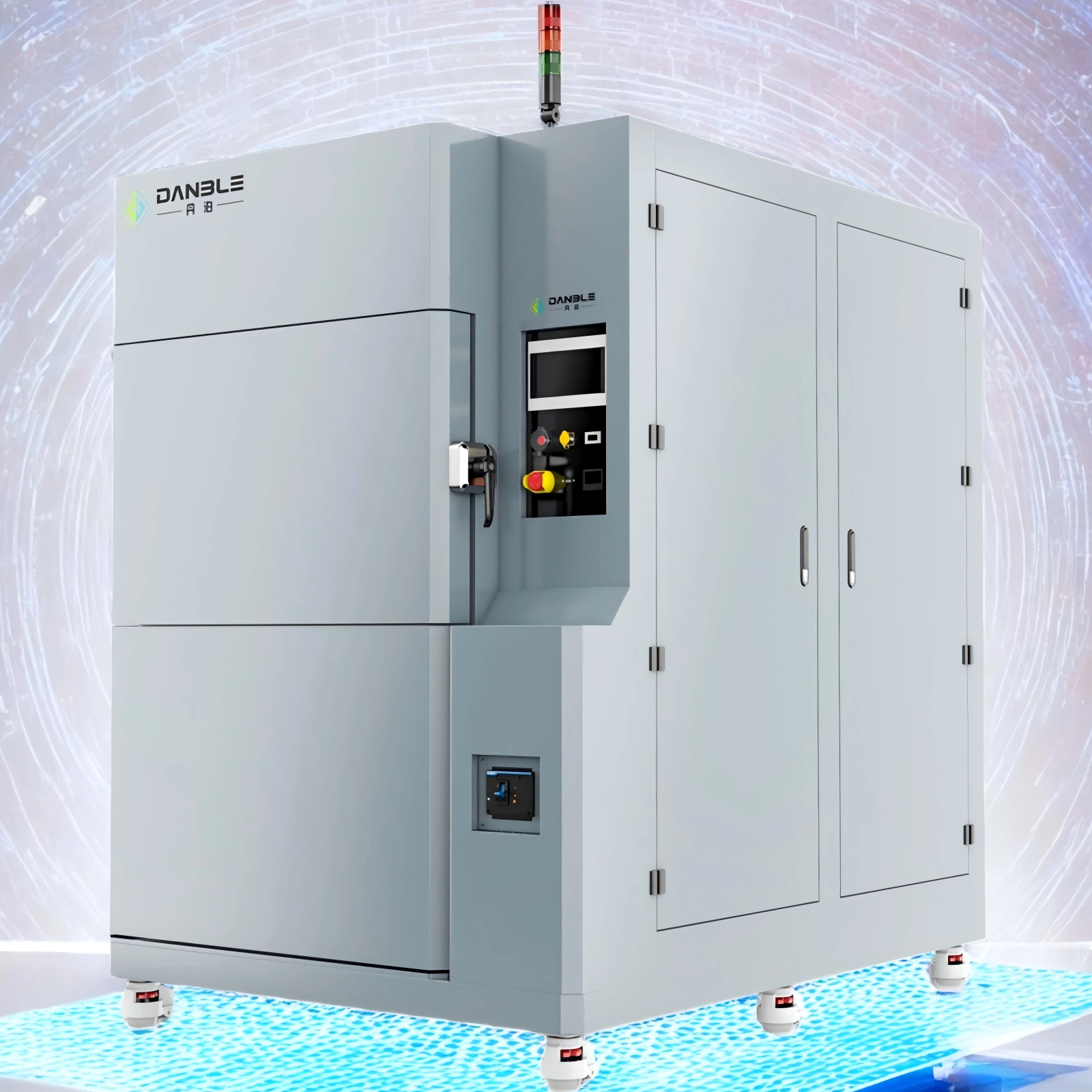

With Danble Thermal Shock Chambers, manufacturers benefit from precision controls, rapid zone transfer mechanisms, and integrated data logging systems that streamline verification.
In one illustrative case, an NEV manufacturer used thermal shock chambers from Danble to validate the performance of their Battery Management System (BMS). The testing involved:
Cycling between -40°C and +125°C
15-second zone transfer time
500 cycles total
Evaluation after every 100 cycles
The test revealed that a previously undetected flaw in the PCB soldering process resulted in micro-cracks after 300 cycles. By identifying the failure early, the company revised their soldering parameters, preventing large-scale field issues and warranty claims.This example shows how thermal shock testing not only validates reliability but also feeds directly into continuous improvement processes in product design and manufacturing.
One of the most significant advantages of modern Thermal Shock Chamber testing is the integration of intelligent data collection systems that drive product optimization. Advanced chambers, such as those from Danble, feature multi-point temperature monitoring, detailed cycle history logs, and event-triggered alarms. These systems also support data export for seamless integration with ERP and QMS platforms. This wealth of data empowers engineers to perform root cause analysis, conduct statistical reliability modeling, optimize material selection, and validate manufacturing processes. In the era of big data and smart manufacturing, such capabilities turn thermal testing into a powerful tool for continuous product improvement.
Thermal shock testing plays a critical role in:
Pre-production validation: Ensuring product robustness before launch.
Supplier qualification: Verifying the consistency of third-party components.
Field failure simulation: Reproducing customer complaints in a controlled environment.
Ongoing quality control: Preventing batch-to-batch variation in long-term production.
It also supports key quality frameworks such as IATF 16949, where environmental validation is a cornerstone of product compliance.
By simulating the harshest environmental conditions in a controlled lab, thermal shock chambers help ensure that every electronic part can withstand the real-world challenges faced in today’s complex automotive environments.
For automotive engineers and quality managers, Thermal Shock Chambers are indispensable tools in validating product reliability and maintaining brand integrity.
When selecting such chamber, it’s vital to partner with a provider that understands both the technical demands and regulatory landscape of the automotive industry. Danble Instrument (Kunshan) Co., Ltd. stands out with:
Custom chamber configurations tailored to specific components
Fast transition zone systems for rigorous shock simulation
Full compliance with ISO, AEC, and IEC standards
Advanced control interfaces and data management systems
Strong after-sales support and technical consulting
